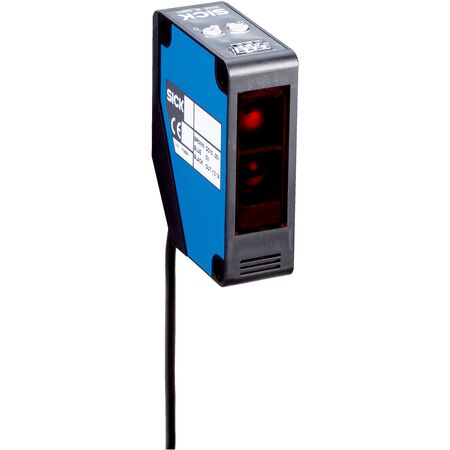

Photoelectric Proximity Sensor WTT280L-2N1536 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT280L-2N1536 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. Featuring background suppression and optical time-of-flight technology, it offers a fast response time of ≤ 0.5 ms and a high switching frequency of 1000 Hz. With an IP67 rated enclosure, this sensor is perfect for harsh environments, ensuring reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: NPN, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable via rotary switch
- Maximum output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Cable: 5-wire, 2 m length, PVC material, 3.8 mm diameter
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Laser class: 1
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on model
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for fine tuning
- Includes mounting bracket BEF-W280
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Background suppression sensing in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT280L-2N1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
