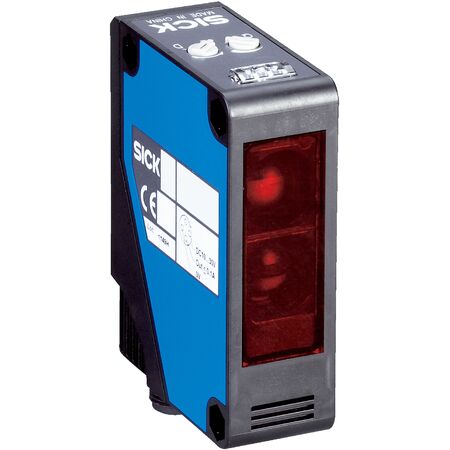

Photoelectric Proximity Sensor WTT280L-2N2536 | IP67 Rated | Background Suppression & Laser Class 1 | by SICK
The WTT280L-2N2536 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 200 mm to 4000 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing processes, this sensor features a high switching frequency of 1000 Hz and a response time of ≤ 0.5 ms, making it perfect for safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: NPN, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: Male M12, 5-pin connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Laser class: 1 (EN 60825-1:2014, IEC 60825-1:2014)
- Light spot size: Ø 12 mm at 3 m
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 4000 mm
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment
- Includes mounting bracket BEF-W280
- IP67 rated enclosure for dust and water protection
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Circuit protection types A, B, C, and D
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 70 mA
- Durable IP67 rated housing reduces environmental impact by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT280L-2N2536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
