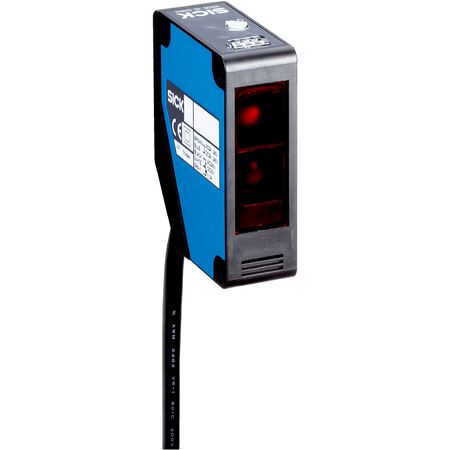

Photoelectric Proximity Sensor WTT280L-2P1531 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT280L-2P1531 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. Featuring background suppression and optical time-of-flight technology, it offers a fast response time of ≤ 0.5 ms and a high switching frequency of 1000 Hz. With an IP67 rated enclosure, this sensor is built to withstand dust and water, making it ideal for manufacturing processes and production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection: 5-wire cable, 2 m length, PVC insulated
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Laser class: 1 (EN 60825-1:2014, IEC 60825-1:2014)
- Dimensions (H x L x W): 76mm x 56mm x 24mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on model
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Potentiometer adjustment for sensitivity
- IP67 rated enclosure for dust and water protection
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Single PNP switching output with selectable light/dark switching mode
- Supplied with mounting bracket BEF-W280
- Robust plastic ABS housing with PMMA optics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Background suppression sensing in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 70 mA
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT280L-2P1531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
