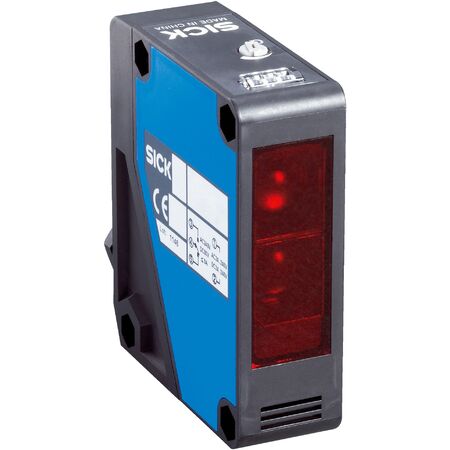

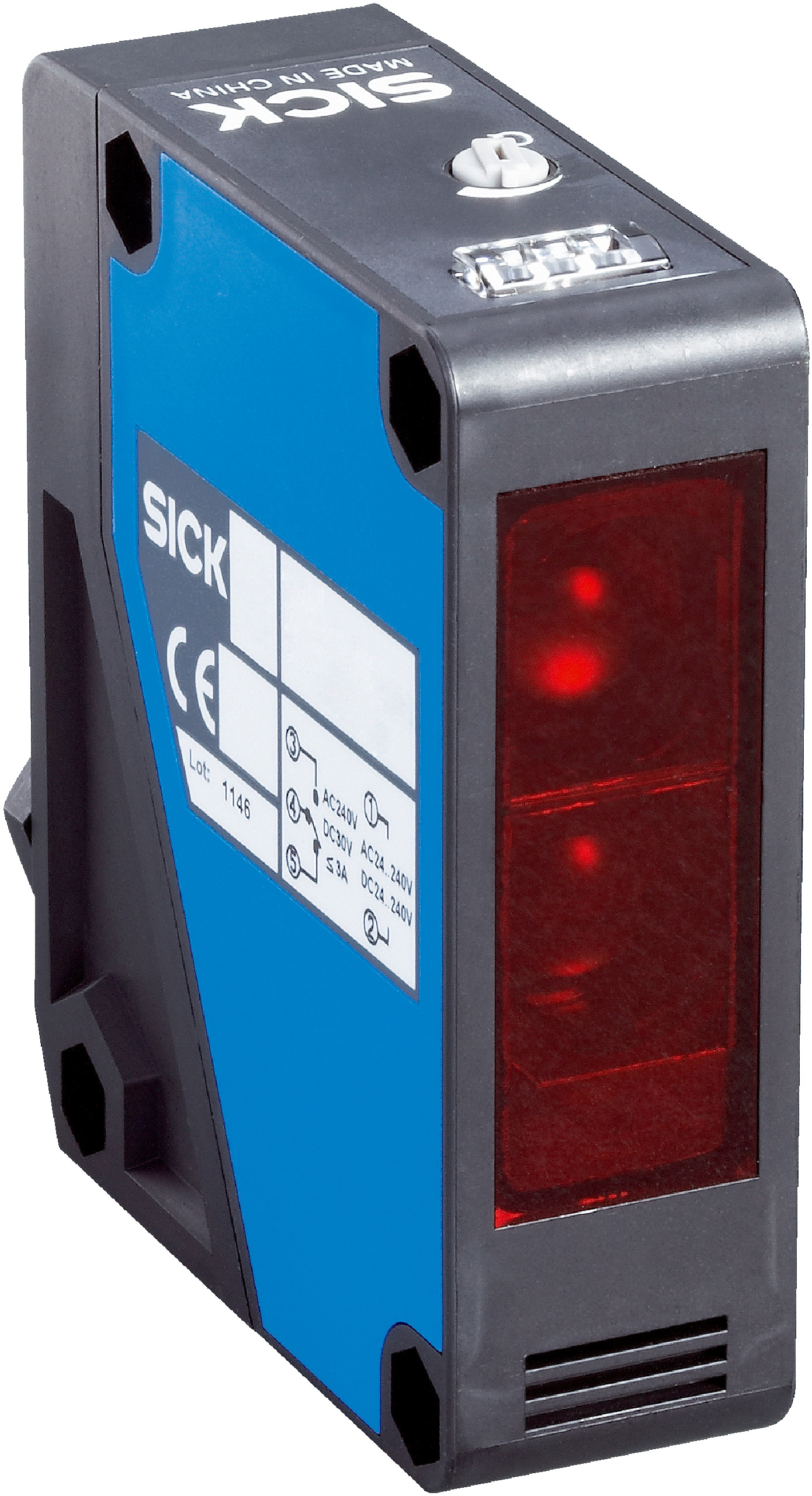

Photoelectric Proximity Sensor WTT280L-2P2531 | IP67 Rated | Fast Response Time | Background Suppression Technology | by SICK
The WTT280L-2P2531 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in detecting small objects across various applications, including manufacturing process control and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, 1 output
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Connection type: Male connector M12, 5-pin
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Laser class: 1 (EN 60825-1:2014, IEC 60825-1:2014)
- Dimensions (H x L x W): 76mm x 56mm x 24mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on model
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Potentiometer adjustment for sensitivity
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing with PMMA optics
- Includes mounting bracket BEF-W280
- Electrical protection circuits A, B, C, D included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems requiring precise object detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 70 mA
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTT280L-2P2531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
