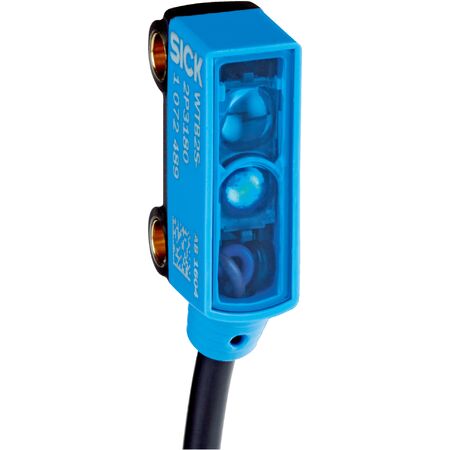

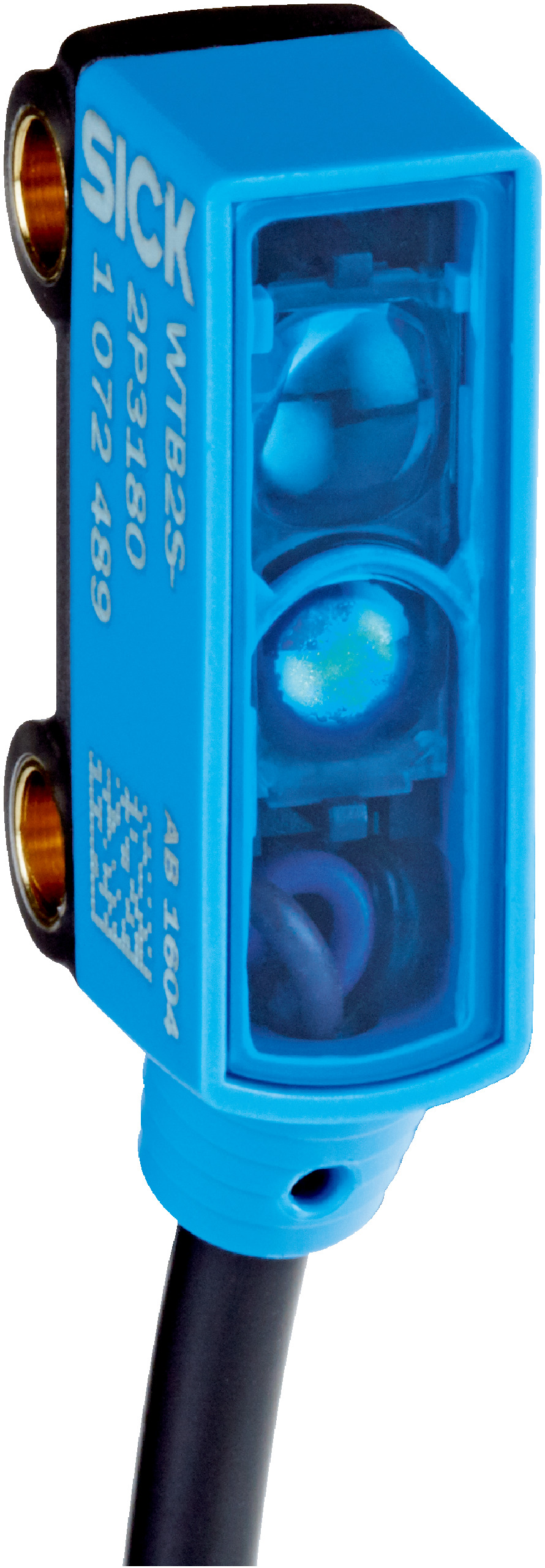

Photoelectric Proximity Sensor WTV2S-2P1185S01 | IP67 Rated | 1,000 Hz Switching Frequency | Blue Light LED | by SICK
The WTV2S-2P1185S01 Photoelectric Proximity Sensor is designed for precise object detection, featuring a high switching frequency of 1,000 Hz and a response time of under 0.5 ms. With its IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for industrial automation and applications involving small or transparent objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length, PVC material
- Cable diameter: 3 mm
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: LED, wavelength 445 nm
- Sensing range: 4 mm to 30 mm (max 36 mm)
- Light spot size at 10 mm distance: 2 mm x 3 mm
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and V-optics
- Visible blue light LED with wavelength of 445 nm
- Preset 12 mm sensing range on black objects
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable (Teach-in) adjustment with 2 m 4-wire cable
- Compact rectangular housing design
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Detecting small objects
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Detecting transparent objects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTV2S-2P1185S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
