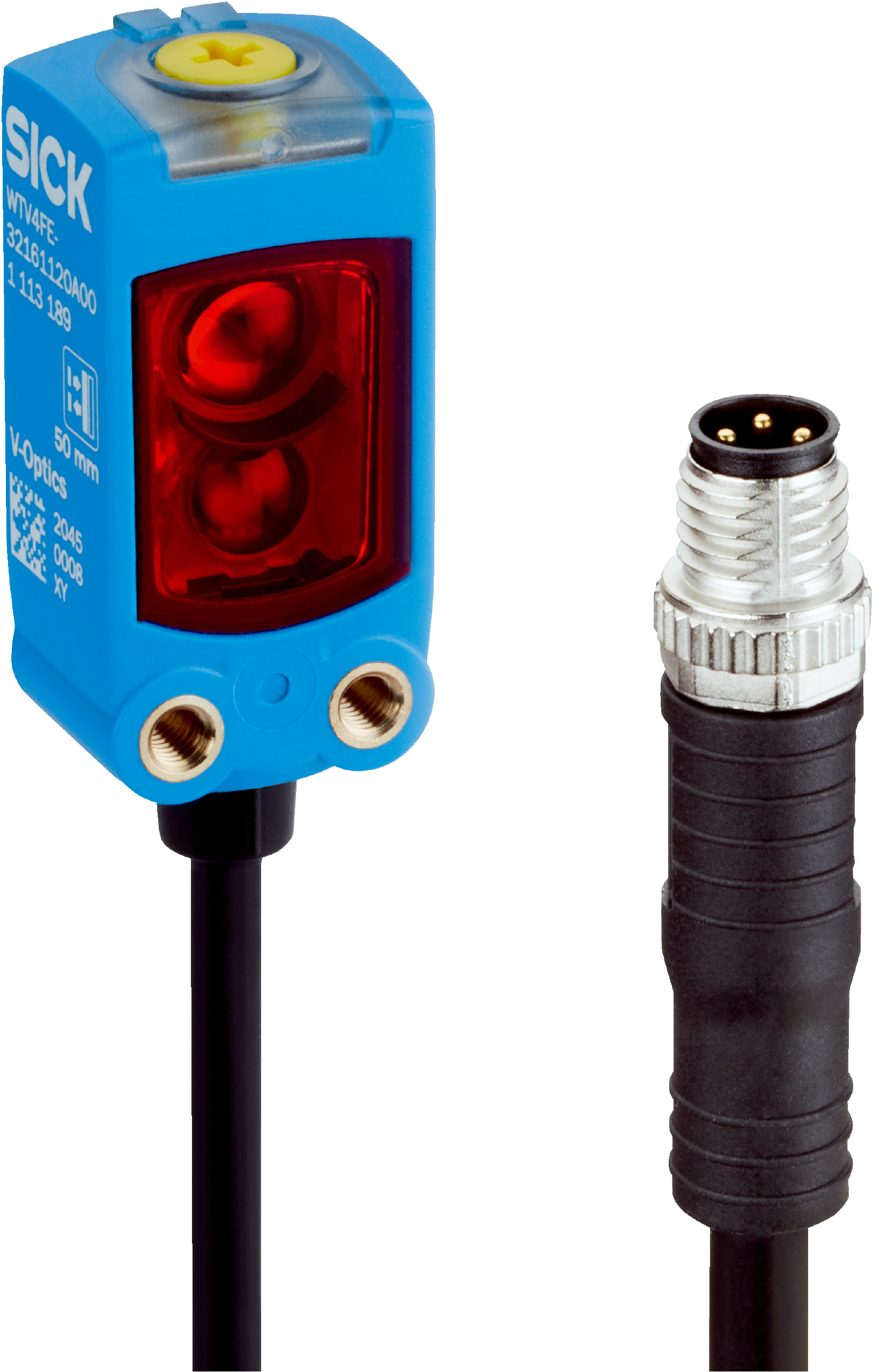

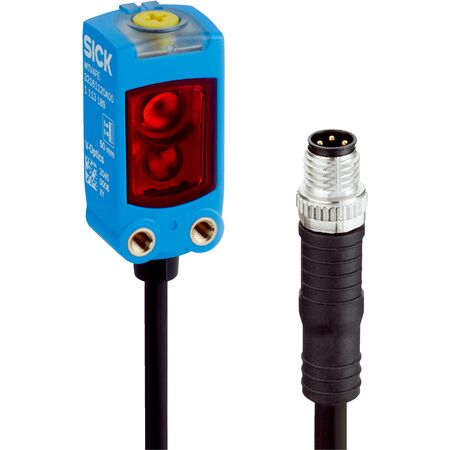

Photoelectric Proximity Sensor WTV4FE-37311120ZZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTV4FE-37311120ZZZ is designed for precise object detection in industrial automation, featuring a sensing range from 2 mm to 50 mm with adjustable thresholds. With a robust IP66/IP67 rated housing and a PinPoint LED light source, it ensures reliable performance even in harsh environments, making it ideal for detecting transparent objects and background suppression in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and V-optics
- Sensing range: 2 mm to 50 mm, adjustable switching threshold 15 mm to 50 mm
- Reference object: Object with 90% remission factor (standard white according to DIN 5033)
- Minimum distance between set sensing range and background: 1 mm at 21 mm distance
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 0.5 mm x 1.9 mm at 30 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA at 24 V
- Output type: Push-pull PNP/NPN, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable: PVC, 115 mm length with M8 3-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and V-optics
- Sensing range from 2 mm to 50 mm, adjustable switching threshold between 15 mm and 50 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- Rectangular light spot size of 0.5 mm x 1.9 mm at 30 mm distance
- BluePilot teach-turn adjustment for setting sensing range
- LED indicators for sensing range, power, and object presence
- High repeatability with 150 µs response time and switching frequency up to 1000 Hz
- Robust IP66/IP67 rated housing suitable for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- Cable with M8 3-pin connector, 115 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by lowering maintenance and replacement needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTV4FE-37311120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
