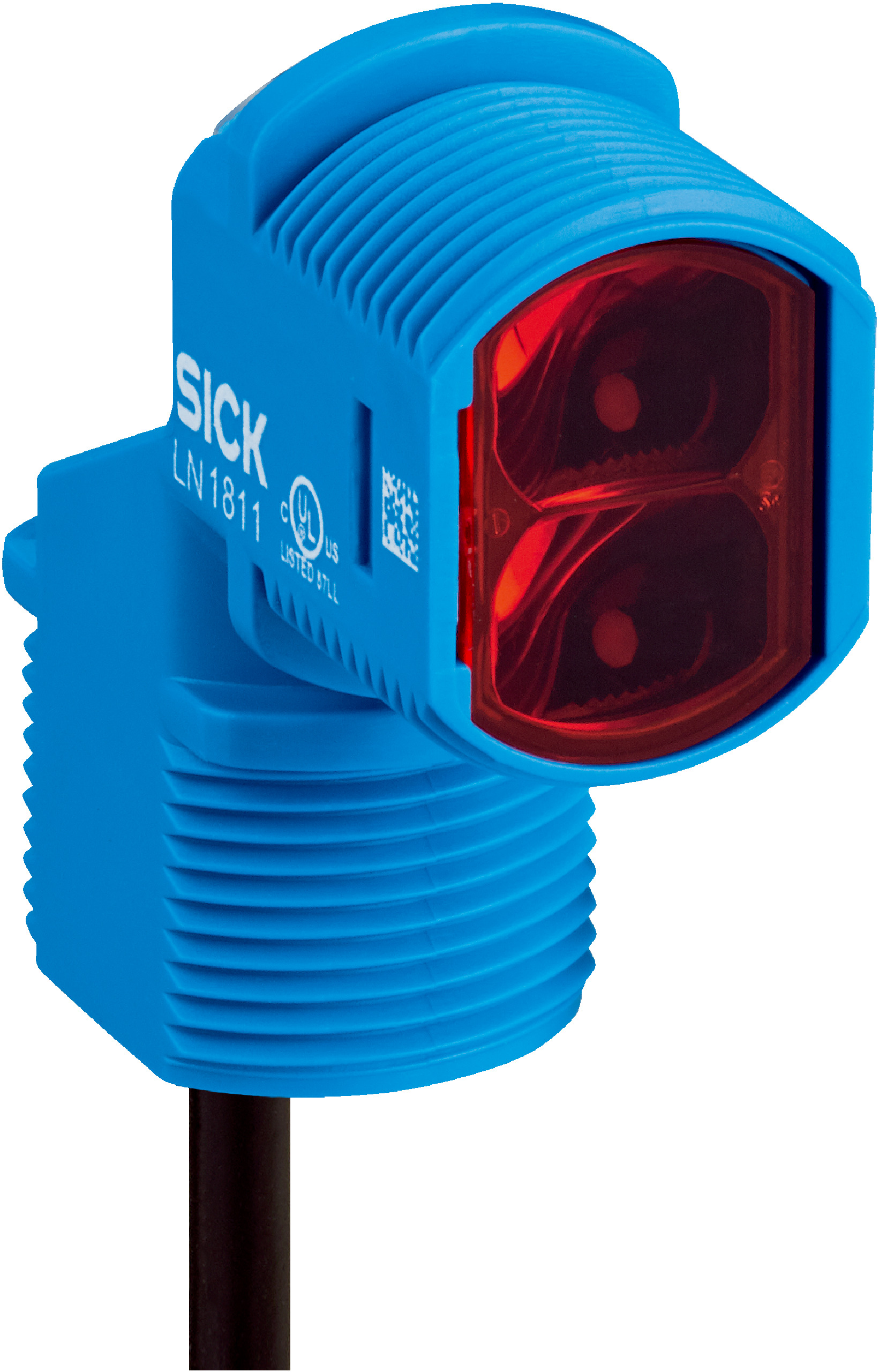

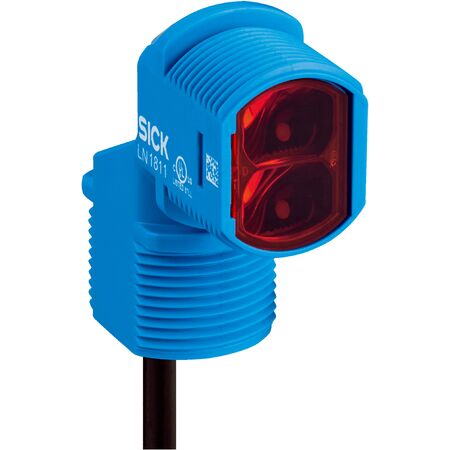

Photoelectric Proximity Sensor ZTE18-4FZ1G8 | IP67 Rated | 740mm Sensing Range | Fast Response Time | by SICK
The ZTE18-4FZ1G8 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 740mm and a fast response time of ≤ 1 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max: 0 mm to 740 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Cable open end, 4-wire, 2 m
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 625 nm wavelength
- Sensing range up to 740 mm
- M18 mounting system with hybrid housing design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time ≤ 1 ms and switching frequency up to 500 kHz
- PNP switching output with dark switching mode
- Cable open end, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTE18-4FZ1G8 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
