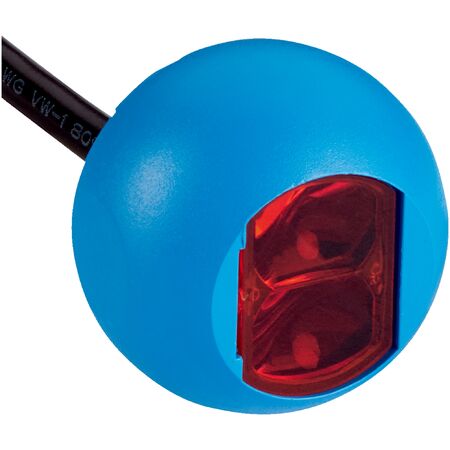

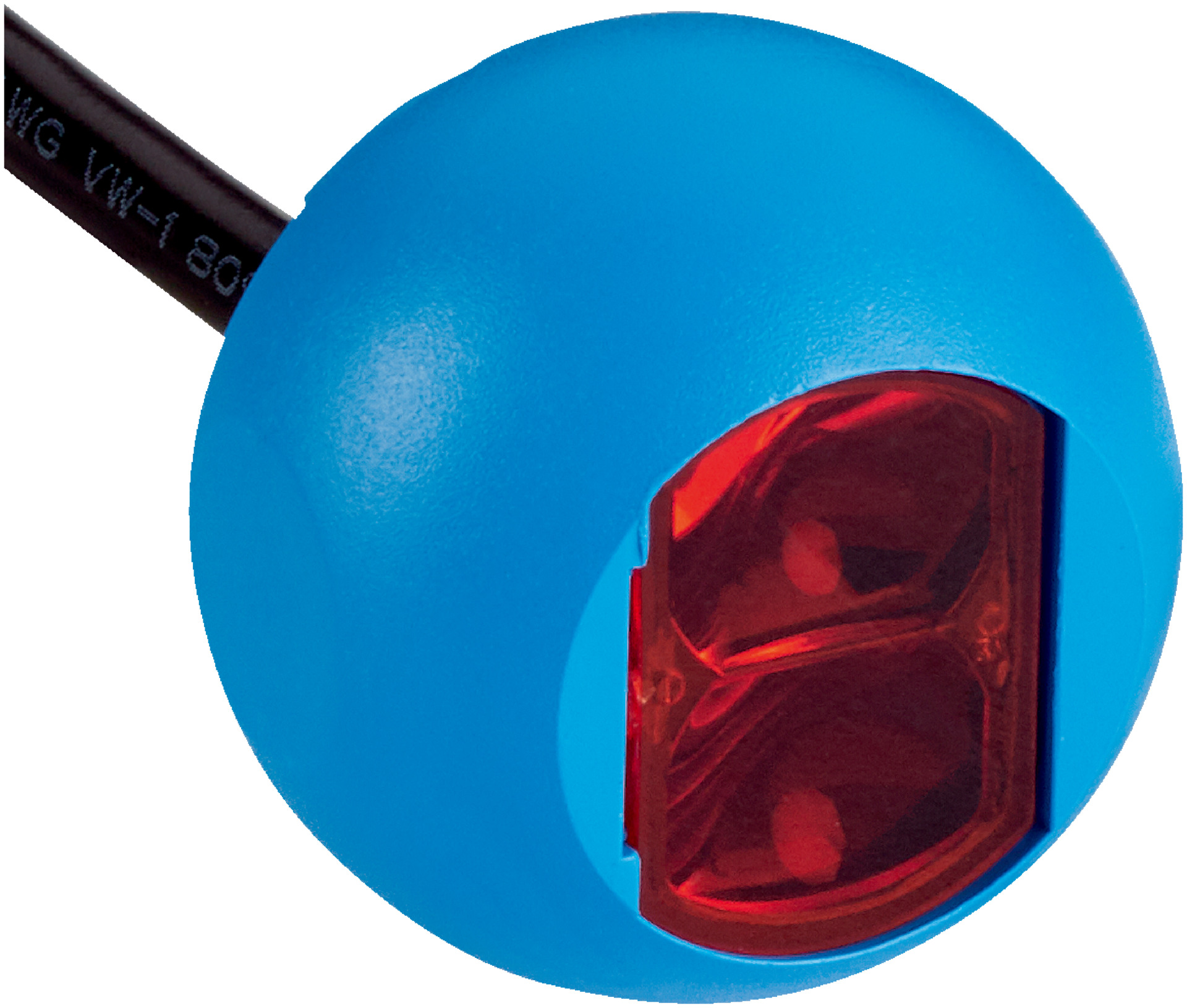

Photoelectric Proximity Sensor ZTE18-8AB4B2 | 700mm Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZTE18-8AB4B2 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 700 mm and a fast response time of ≤ 1 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max.: 0 mm to 700 mm
- Type of light: Visible red light, wavelength 625 nm
- Light spot size: Ø 25 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Hybrid housing design in blue color
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and fast response time ≤ 1 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTE18-8AB4B2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
