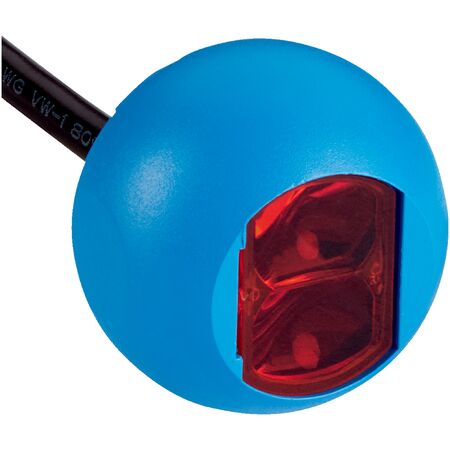

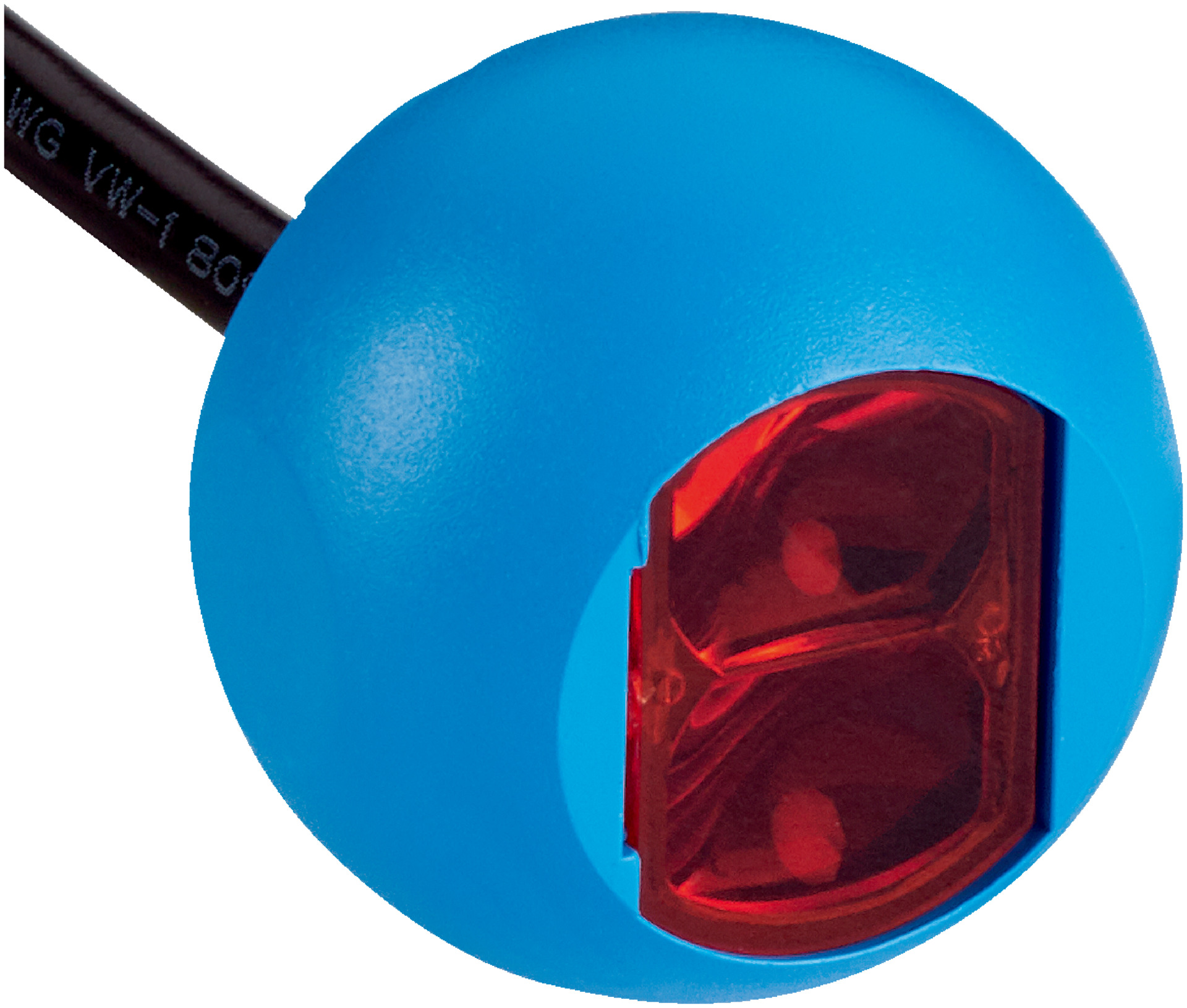

Photoelectric Proximity Sensor ZTE18-8AB1G2 | 700mm Sensing Range | IP67 Rated | Push-Pull Output | by SICK
The ZTE18-8AB1G2 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 700 mm and a high switching frequency of 500 kHz. With its robust IP67-rated housing and visible red light PinPoint LED, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max.: 0 mm to 700 mm
- Light source: PinPoint LED, visible red light, wavelength 625 nm
- Switching output: Push-pull PNP/NPN, light and dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Cable open end, 4-wire, 2 m, PVC cable
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTE18-8AB1G2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
