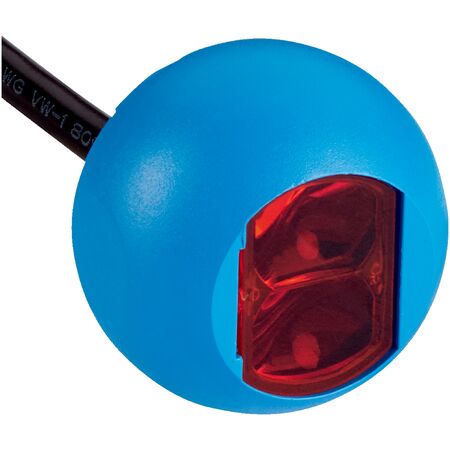

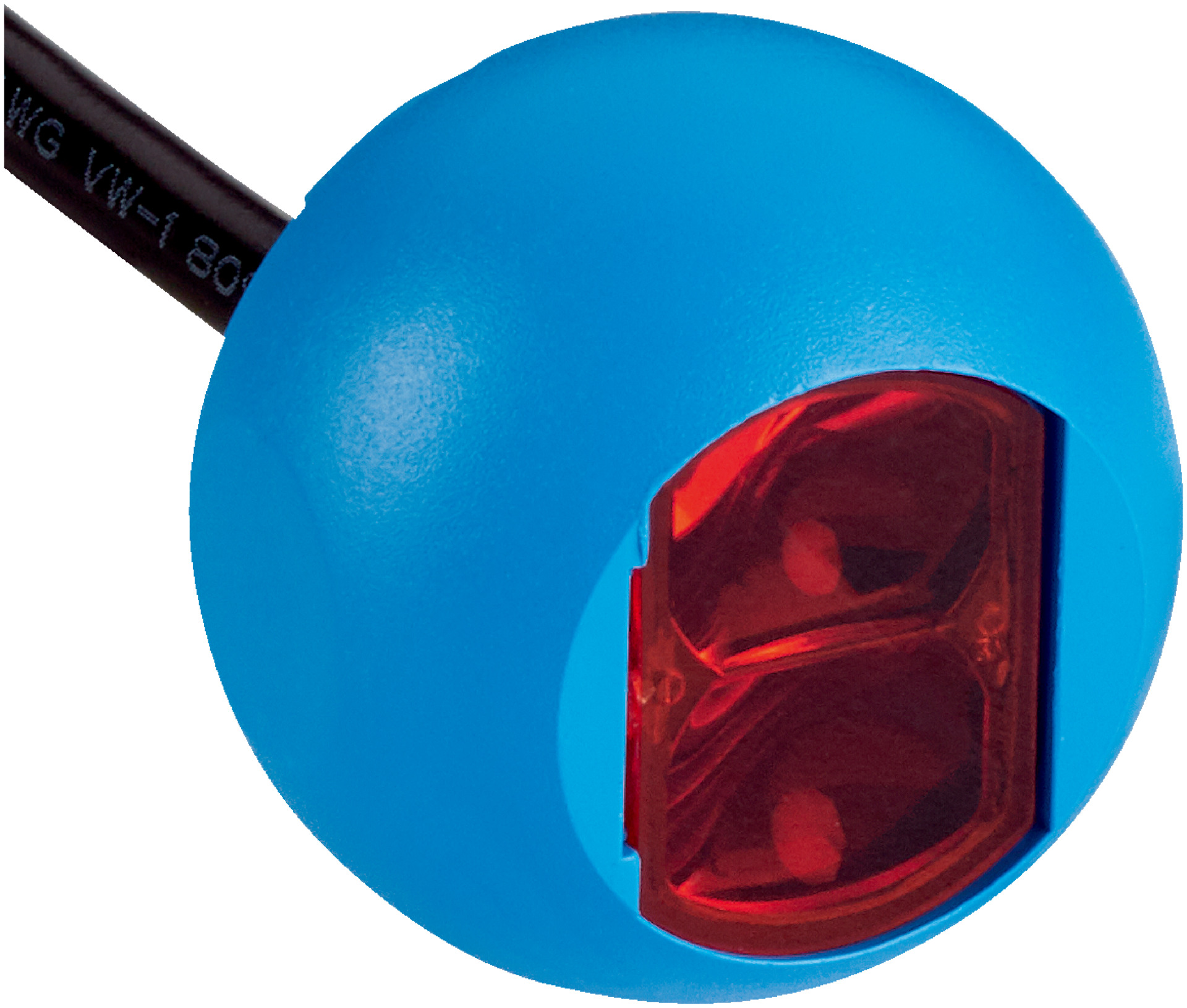

Photoelectric Proximity Sensor ZTE18-8AB5B2 | 700 mm Sensing Range | IP67 Rated | by SICK
The ZTE18-8AB5B2 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 700 mm and a high switching frequency of 500 kHz. With a robust IP67-rated housing and a visible red light PinPoint LED, it’s perfect for object detection in manufacturing and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max: 0 mm to 700 mm
- Light source: PinPoint LED, visible red light, wavelength 625 nm
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Connection type: Cable with male M8, 4-pin connector, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Protection class: III
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +55 °C
- Cable with male M8 4-pin connector, 150 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTE18-8AB5B2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
