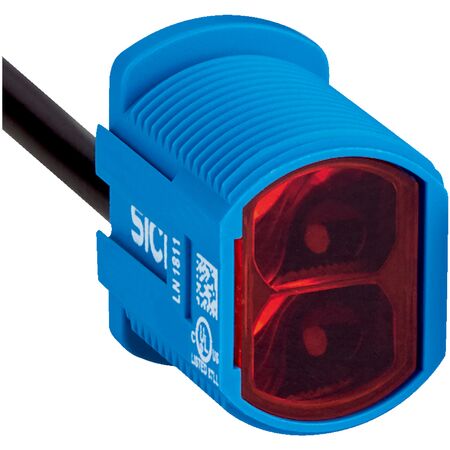

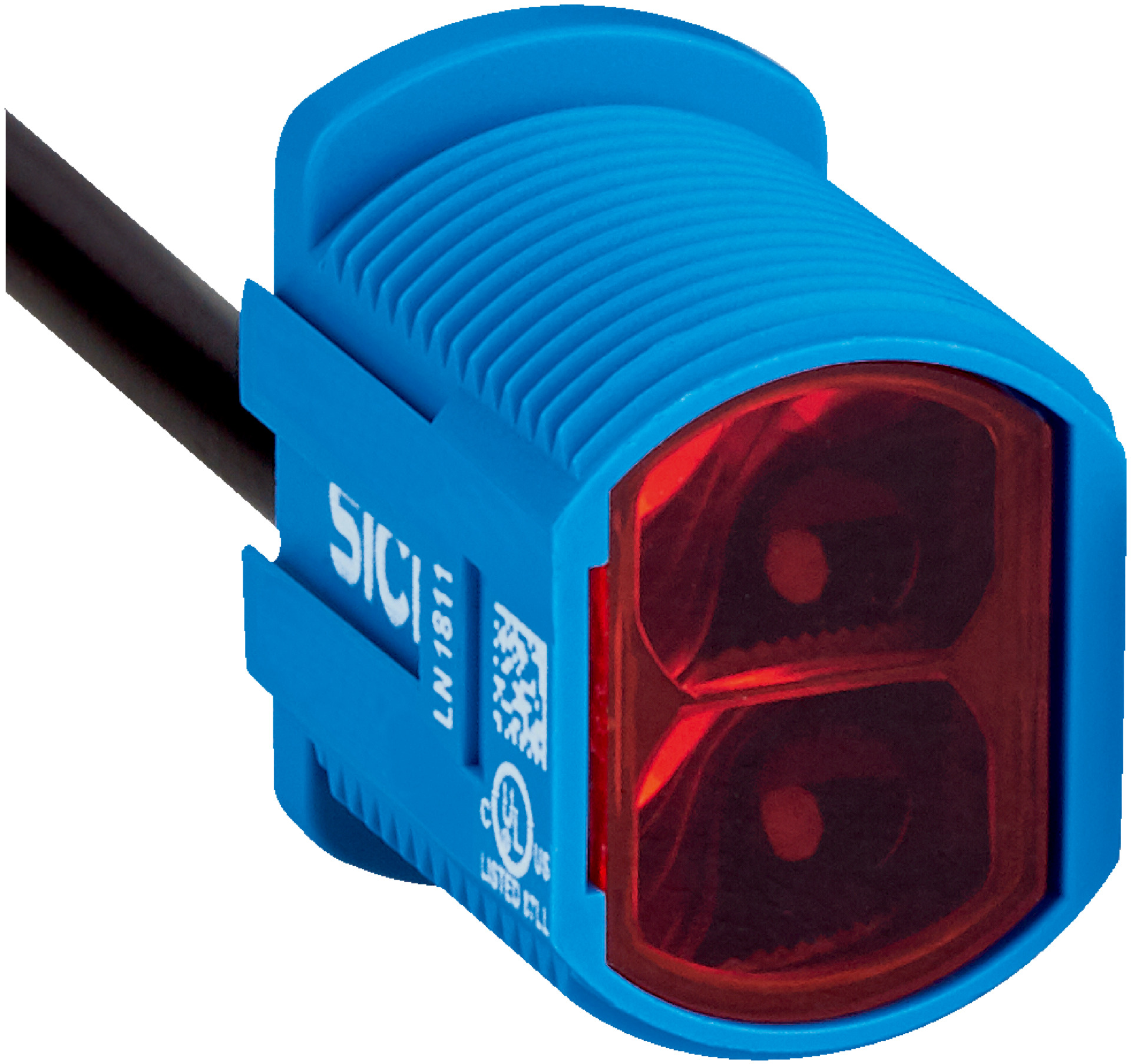

Photoelectric Proximity Sensor ZTE18-9AB4B2 | IP67 Rated | 700mm Sensing Range | 500 kHz Switching Frequency | by SICK
The ZTE18-9AB4B2 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 700 mm and a high switching frequency of 500 kHz. With its IP67 rated enclosure, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor ZTE18-9AB4B2 | IP67 Rated | 700mm Sensing Range | 500 kHz Switching Frequency | by SICK
Brand: SICK
SKU: 1095841
Alternatively Known As: Photoelectric proximity sensor, Photoelectric sensor M18, SICK ZTE18 sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 0 mm to 700 mm
- Type of light: Visible red light, wavelength 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 20.5mm x 23mm x 14.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTE18-9AB4B2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
