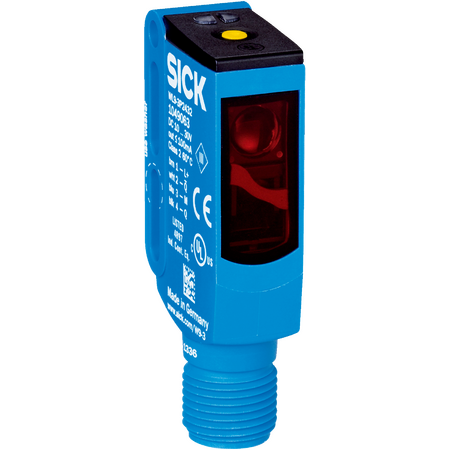

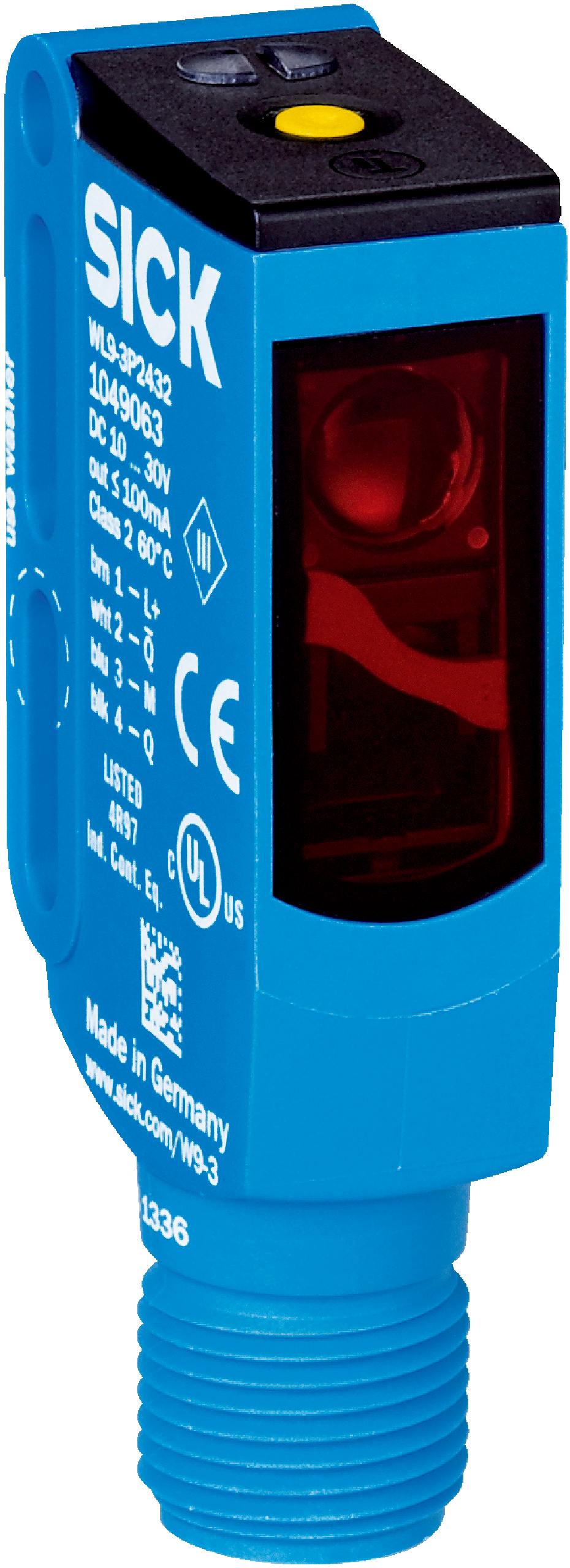

Photoelectric Retro-Reflective Sensor WL9-3P2432 | 0-3m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P2432 is designed for industrial automation, featuring a sensing range of 0 to 3 meters and a high switching frequency of 1,000 Hz. With robust IP66/IP67/IP69K protection ratings and a durable plastic housing, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring in manufacturing processes, this sensor is a must-have for efficient material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK WL9 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 13 g
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Polarizing filter included to reduce false triggers
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P2432 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
