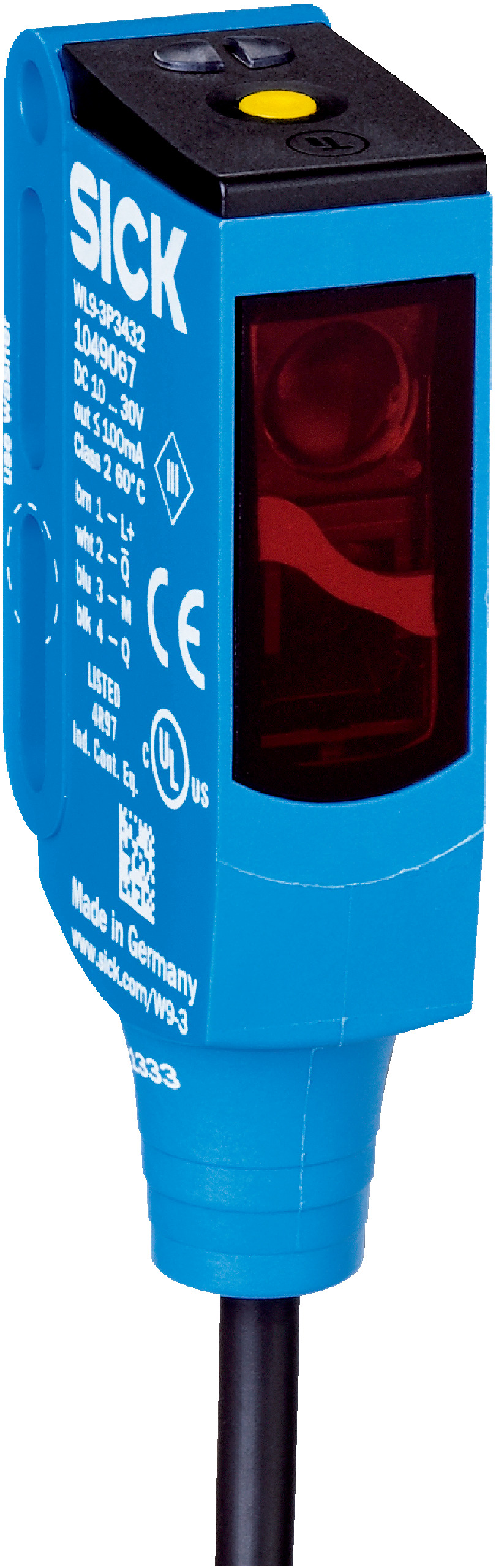

Photoelectric Retro-Reflective Sensor WL9-3N1132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3N1132 is designed for industrial automation, featuring a sensing range of up to 5 meters and a high switching frequency of 1,000 Hz. With its robust IP66/IP67/IP69K rated housing and visible red light source, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3N1132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1049070
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector, up to 5 m maximum
- Light source: Visible red PinPoint LED, wavelength 650 nm
- Light spot size: Ø 45 mm at 1.5 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69K protection
- Polarizing filter included to reduce false triggering
- Wide ambient operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3N1132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
