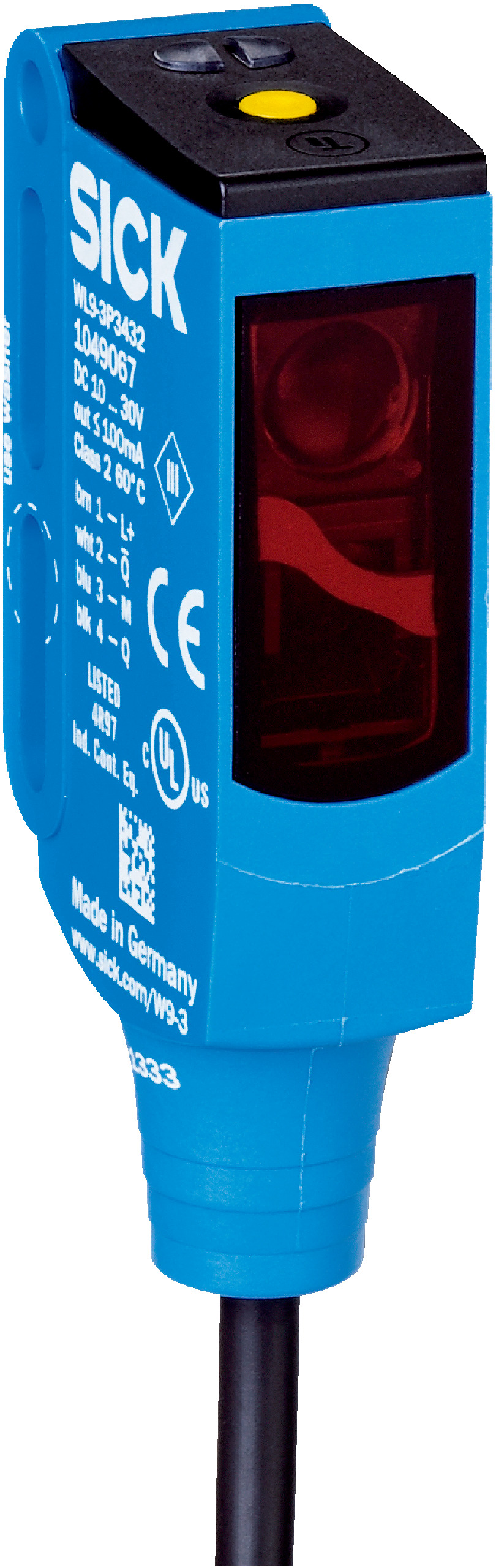

Photoelectric Retro-Reflective Sensor WL9-3P3132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3132 is designed for industrial automation, featuring a sensing range of up to 5 meters with a reflector and a high switching frequency of 1,000 Hz. Built for robust performance, it operates in extreme temperatures from -40°C to +60°C and is ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P3132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1050917
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector, up to 5 m with reflector
- Light source: PinPoint LED with 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 3-pin connector, 120 mm length
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Protection class: III
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Polarizing filter included to reduce false triggers
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P3132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
