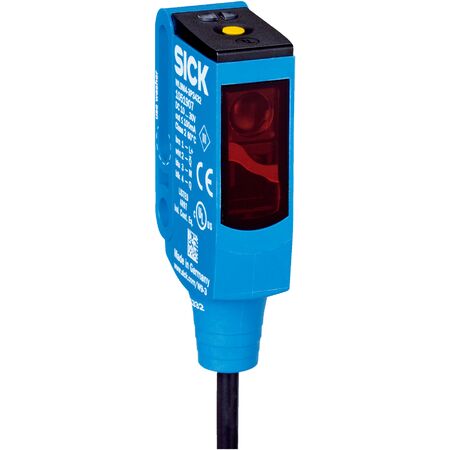

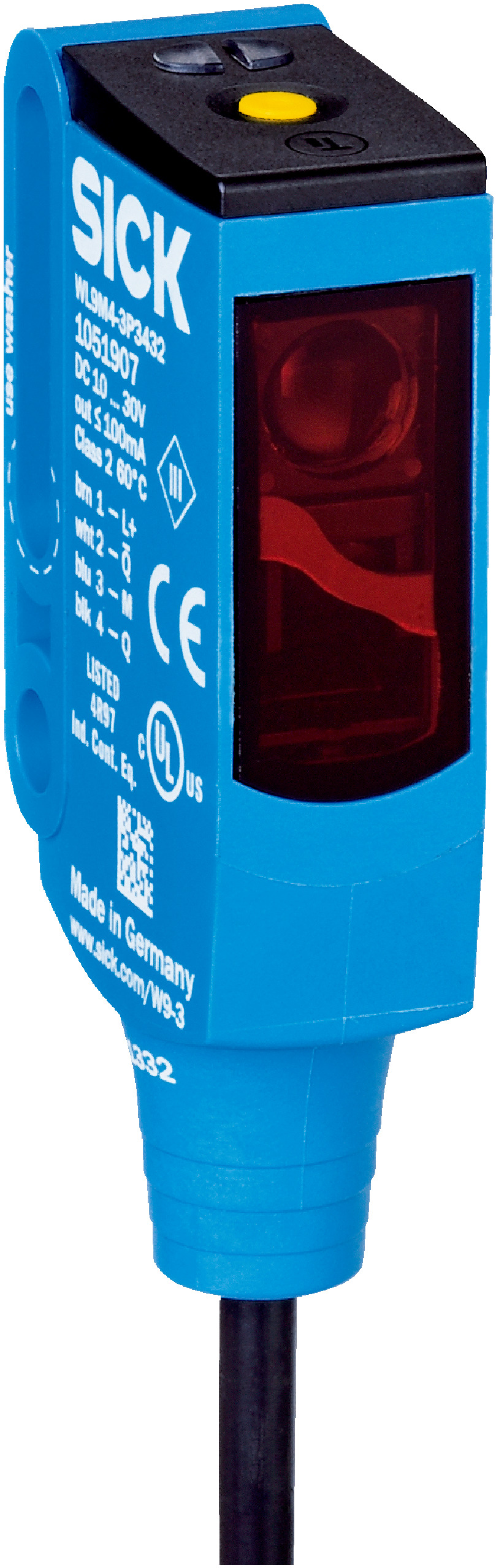

Photoelectric Retro-Reflective Sensor WL9M4-3P1132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9M4-3P1132 is designed for precise object detection in industrial automation, featuring a sensing range of up to 5 meters with a reflector. With a fast response time of under 0.5 ms and a high switching frequency of 1,000 Hz, this sensor is perfect for small object detection in harsh environments, ensuring reliability and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9M4-3P1132 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1051894
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Object detection sensor, SICK sensor WL9M4
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector, up to 5 m with reflector
- Light source: PinPoint LED, wavelength 650 nm
- Switching output: PNP complementary, max output current ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Weight: 80 g
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- Polarizing filter included to reduce false triggering
- High switching frequency of 1,000 Hz and fast response time under 0.5 ms
- Robust plastic VISTAL® housing with IP66, IP67, IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Use in harsh environments requiring IP66, IP67, IP69K protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9M4-3P1132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
