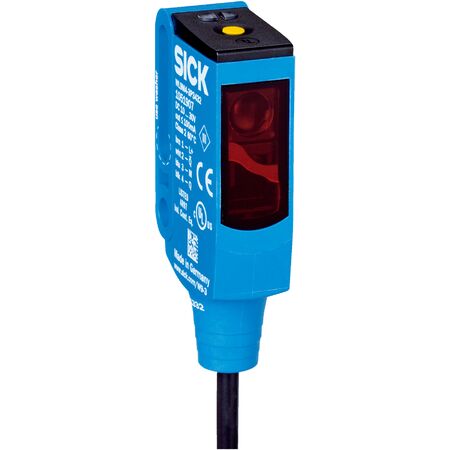

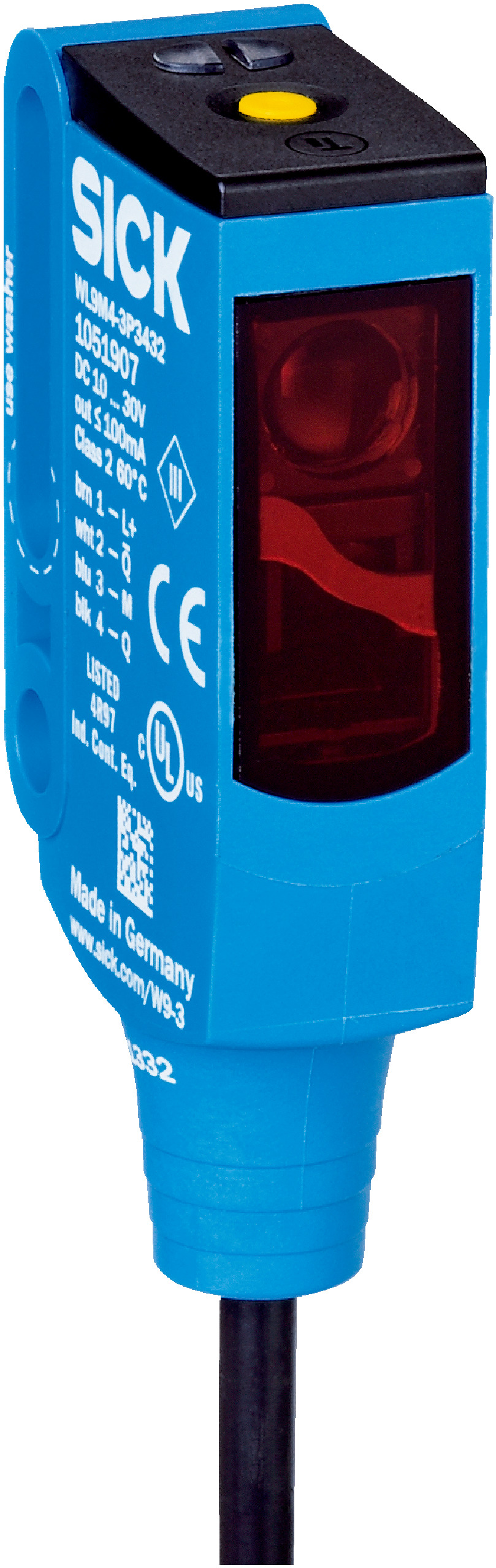

Photoelectric Retro-Reflective Sensor WL9M4-3P3432 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9M4-3P3432 is designed for precise object detection in industrial automation, featuring a sensing range of up to 5 meters with a reflector. With a robust IP66/IP67/IP69K rating and a high switching frequency of 1,000 Hz, this sensor is perfect for material handling and quality control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9M4-3P3432 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1051907
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Object detection sensor, SICK sensor WL9M4
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector, up to 5 m with reflector
- Light source: PinPoint LED, wavelength 650 nm
- Switching output: PNP complementary
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Response time: less than 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Weight: 80 g
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggering
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for detecting small objects
- Material handling and packaging systems
- Quality control and inspection processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9M4-3P3432 Photoelectric Retro-Reflective Sensor is available for immediate purchase. Ideal for industrial automation and object detection applications.
