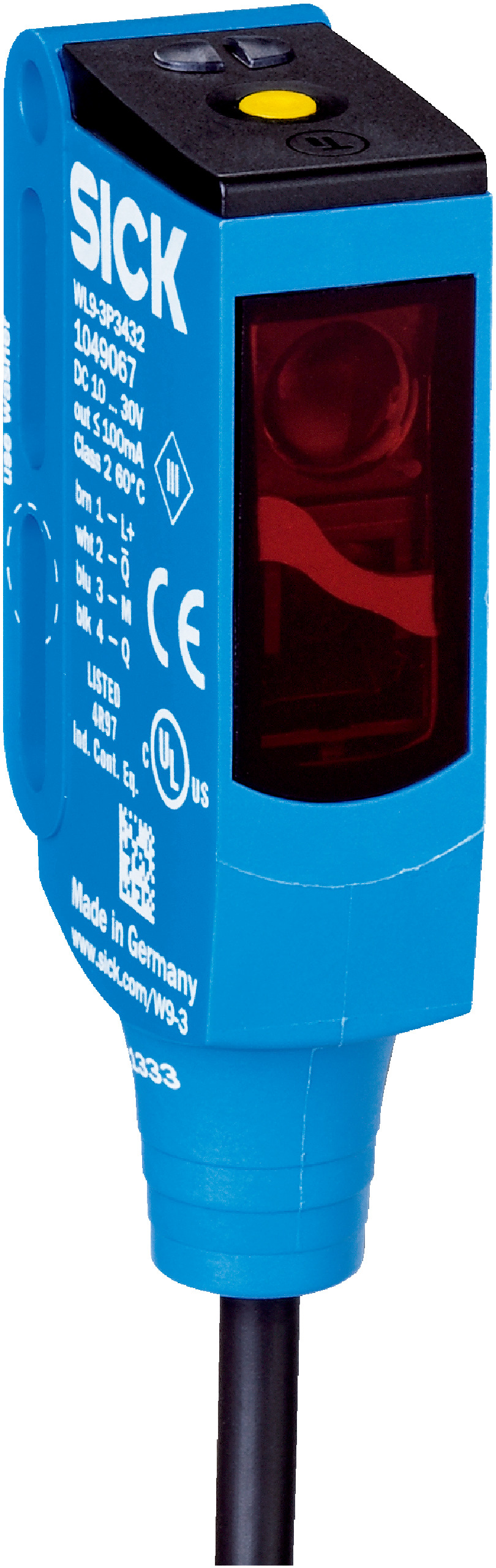

Photoelectric Retro-Reflective Sensor WL9-3P3032S28 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3032S28 is designed for industrial automation, offering a sensing range of up to 5 meters with a reflector. Featuring a robust IP66/IP67/IP69K housing and a high switching frequency of 1,000 Hz, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Its energy-efficient LED light source ensures reliable performance in challenging environments, making it an ideal choice for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P3032S28 | 0-5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1052899
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 3 m without reflector, up to 5 m with reflector
- Light source: PinPoint LED with 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Protection class: III
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust housing with IP66, IP67, and IP69K protection ratings
- Polarizing filter included to reduce false triggering
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P3032S28 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
