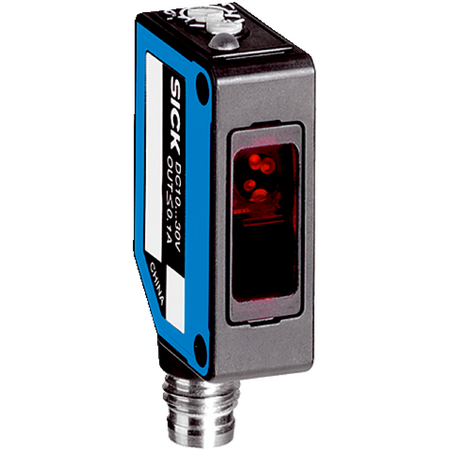

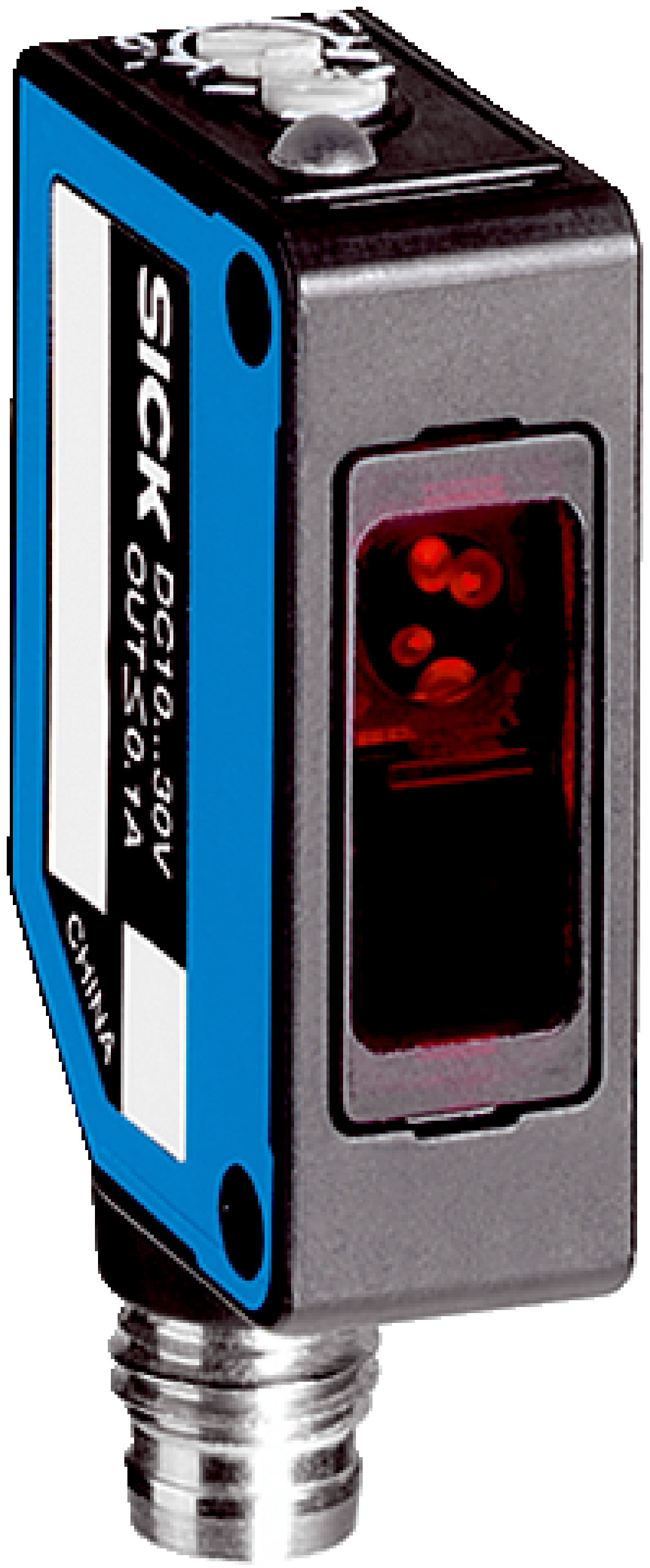

Photoelectric Retro-Reflective Sensor | 0 to 1.7m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for reliable detection of transparent objects, featuring a sensing range of 0 to 1.7m and a high switching frequency of 1,000 Hz. Ideal for industrial automation, this sensor operates with visible red light and includes a stainless steel mounting bracket for easy installation. With an IP67 rating, it ensures durability in challenging environments, making it perfect for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Retro-Reflective Sensor, Retro-Reflective Proximity Sensor, Transparent Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 to 1.7 m (without reflector minimum distance)
- Light source: LED, 650 nm wavelength visible red light
- Light spot size: Ø 70 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: M8, 3-pin connector
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Detects transparent objects effectively
- Potentiometer adjustment with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Includes stainless steel mounting bracket and reflector
- Polarizing filter for enhanced detection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL8G-P2131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
