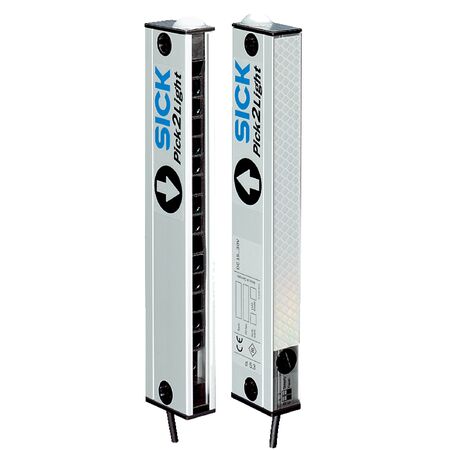

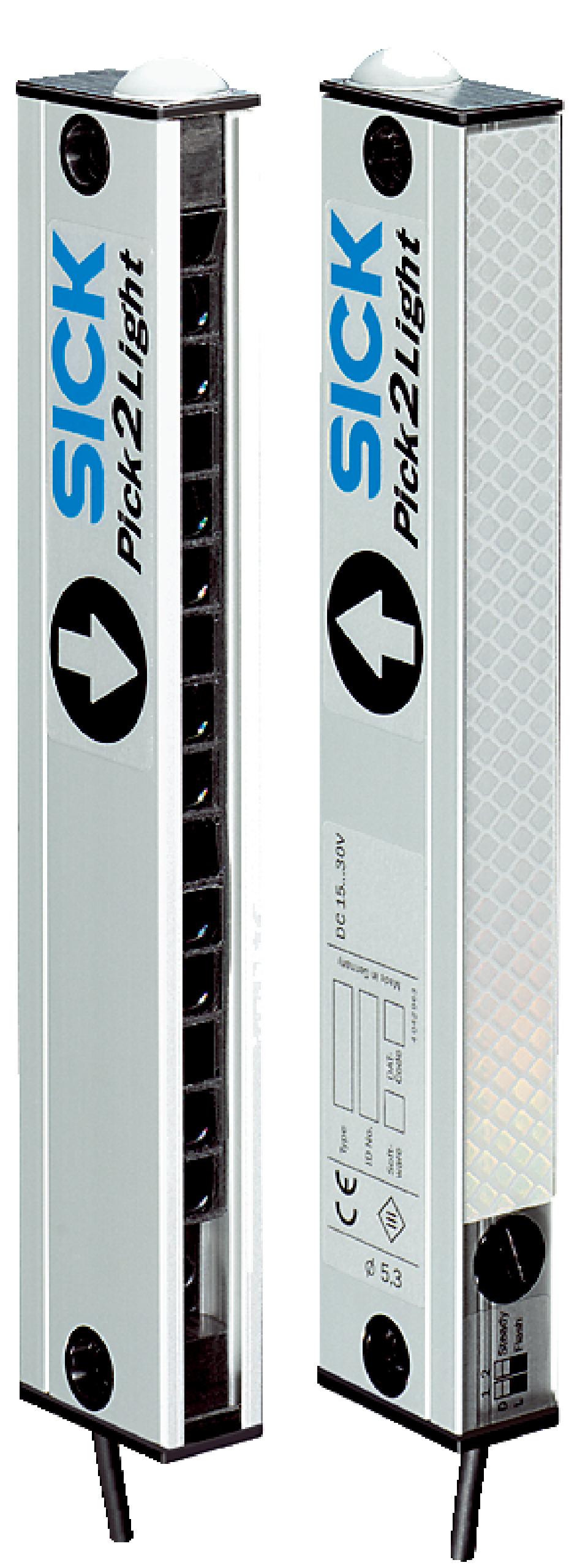

Photoelectric Retro-Reflective Sensor | 10 Beams | 270 mm Detection Height | IP54 Rated | by SICK
The Photoelectric Retro-Reflective Sensor PLG3-270F431 is designed for precise object detection in industrial automation. With a minimum detectable object size of 35 mm and a detection height of 270 mm, it features 10 beams with 30 mm beam separation for enhanced accuracy. Built with a robust aluminum housing and IP54 rating, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 10 Beams | 270 mm Detection Height | IP54 Rated | by SICK
Brand: SICK
SKU: 1029130
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK PLG3 Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 10
- Detection height: 270 mm
- Wavelength: 650 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 45 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: PNP
- Output mode: Q dark switching
- Current consumption job LED: 10 mA
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 110 mm
- Operating range: 1.3 m
- Response time: < 80 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 36.6mm x 349.8mm x 19.2mm
- Weight: 0.35 kg
Key Features
- Photoelectric retro-reflective sensor principle
- Minimum detectable object size of 35 mm
- 10 beams with 30 mm beam separation
- Detection height of 270 mm
- LED indication for operational status
- Robust aluminum housing with IP54 rating
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 45 mA current draw
- Durable aluminum housing reduces waste through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PLG3-270F431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
