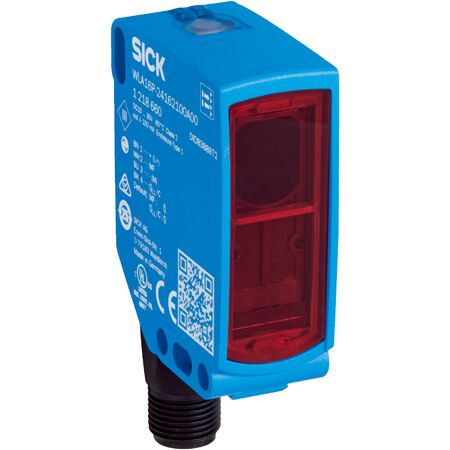

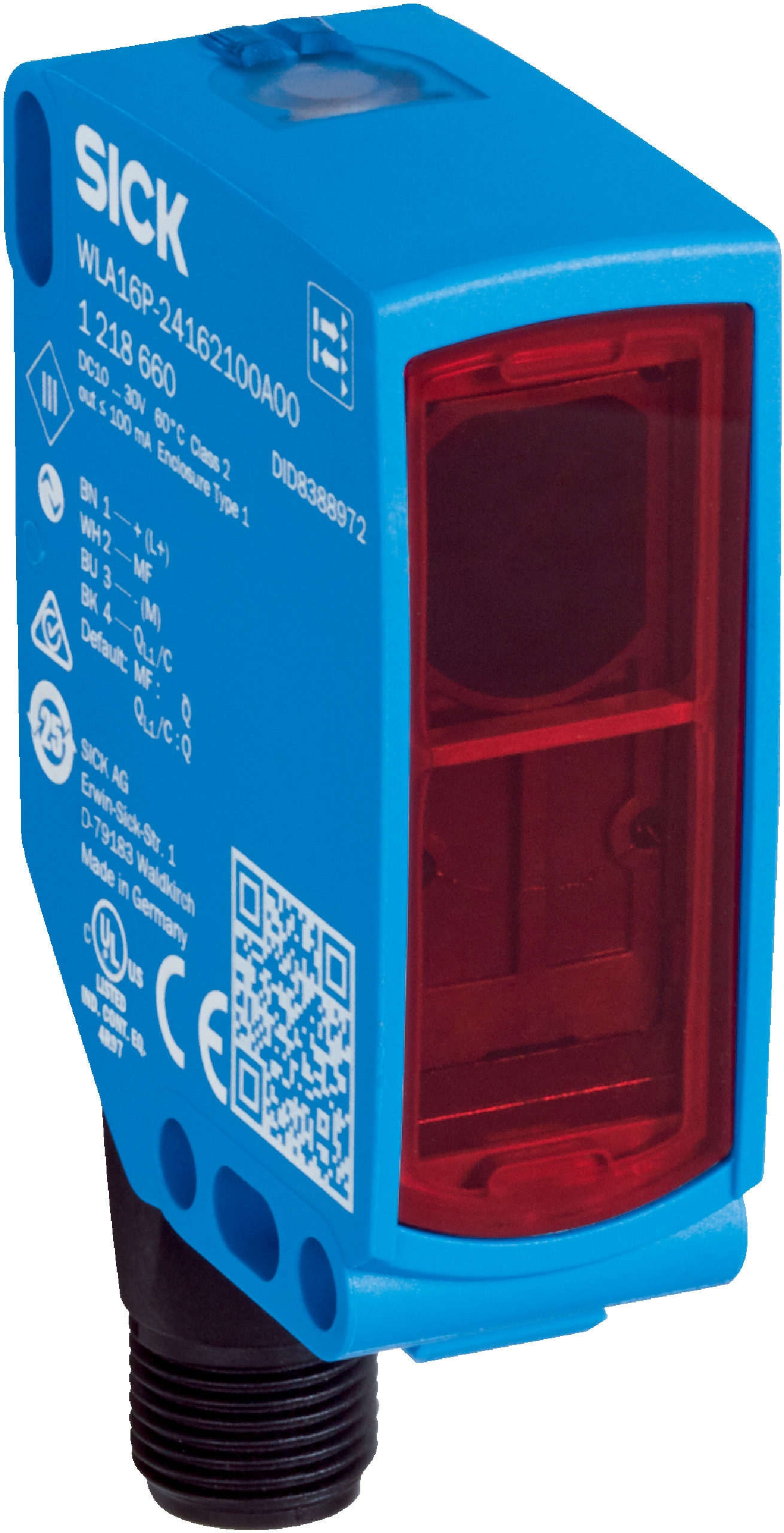

Photoelectric Retro-Reflective Sensor | 10m Sensing Range | IO-Link Enabled | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and IO-Link capability for easy parameter configuration. With a robust IP66/IP67/IP69 rated enclosure, it excels in harsh environments, making it ideal for object detection and applications requiring high reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 10 m, recommended 0 to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA output current
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- Weight: Approx. 50 g
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link enabled for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operating status, and light beam status
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Factory setting includes switch-off delay of 10 ms
- Two complementary push-pull digital outputs (PNP/NPN)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and configuration using IO-Link for optimal performance.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by lowering maintenance and replacement needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLA16P-24162100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
