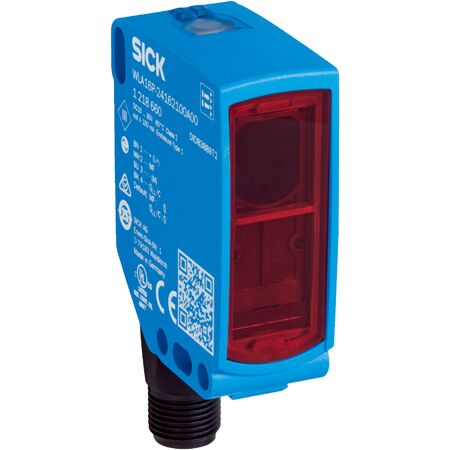

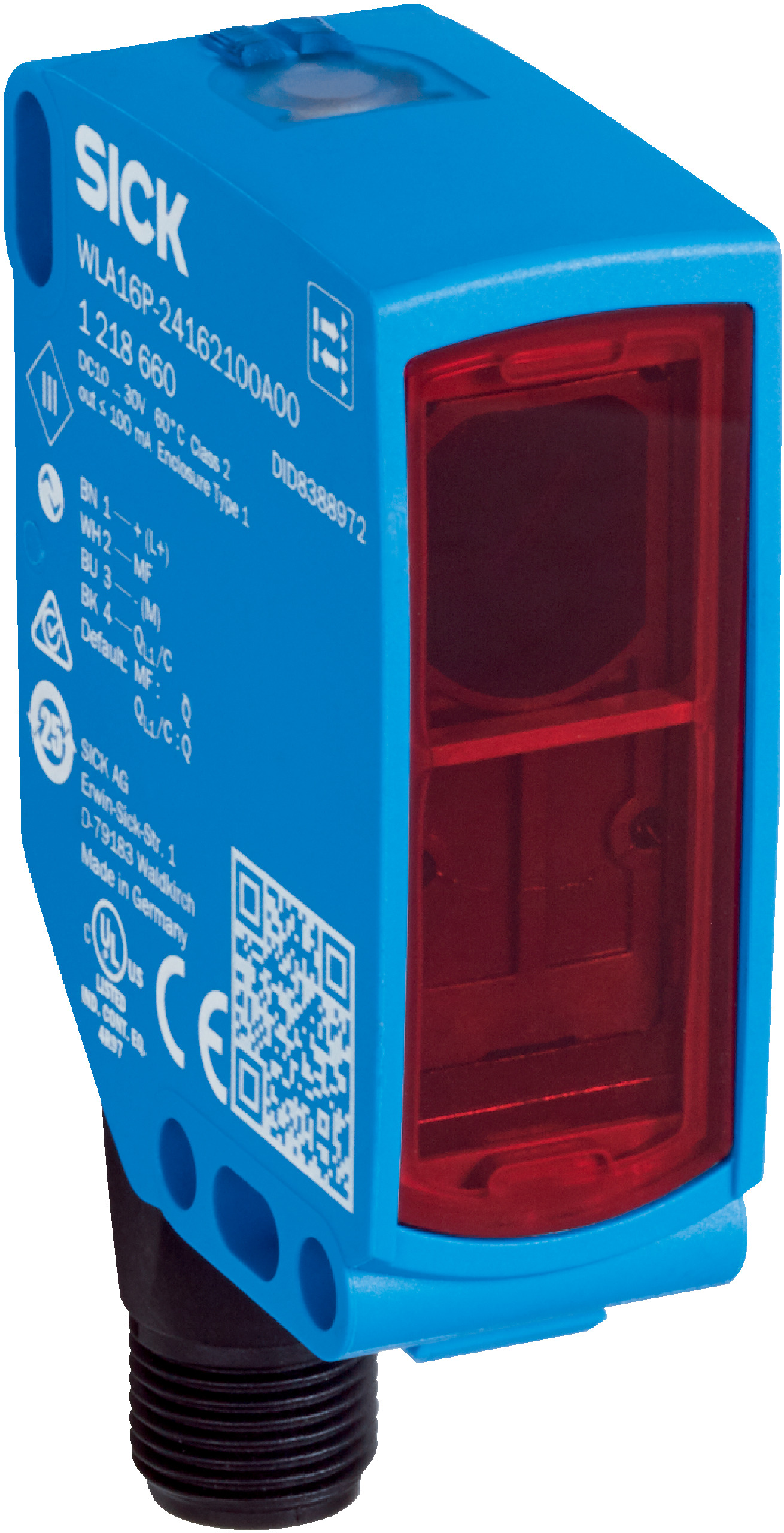

Photoelectric Retro-Reflective Sensor | 10m Sensing Range | IO-Link Interface | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and an IO-Link interface for easy parameter configuration. With robust IP66/IP67/IP69 protection ratings and a long LED service life, this sensor is perfect for quality control systems and packaging lines, ensuring reliable object detection even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 10 m (max), recommended 0 to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Weight: Approx. 50 g
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included for improved detection
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment aid, operating status, and light beam status
- Robust housing with IP66, IP67, and IP69 protection ratings
- High shock resistance (50 g) and vibration resistance (10 Hz to 2000 Hz)
- Detects objects wrapped in film
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, secure mounting, and correct electrical connections following manufacturer guidelines.
Applications
- Industrial automation for object detection
- Packaging lines for detecting objects wrapped in film
- Quality control systems requiring precise sensing
- Environments requiring robust sensor performance with high shock and vibration resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLA16P-24161100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
