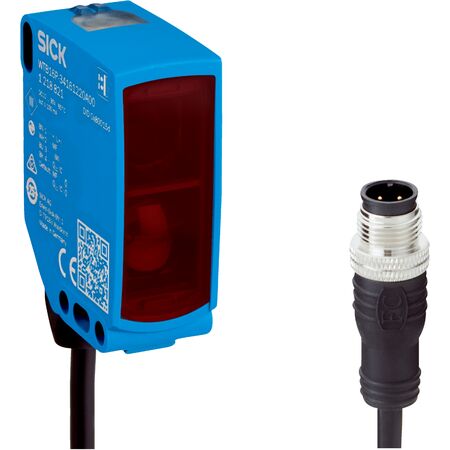

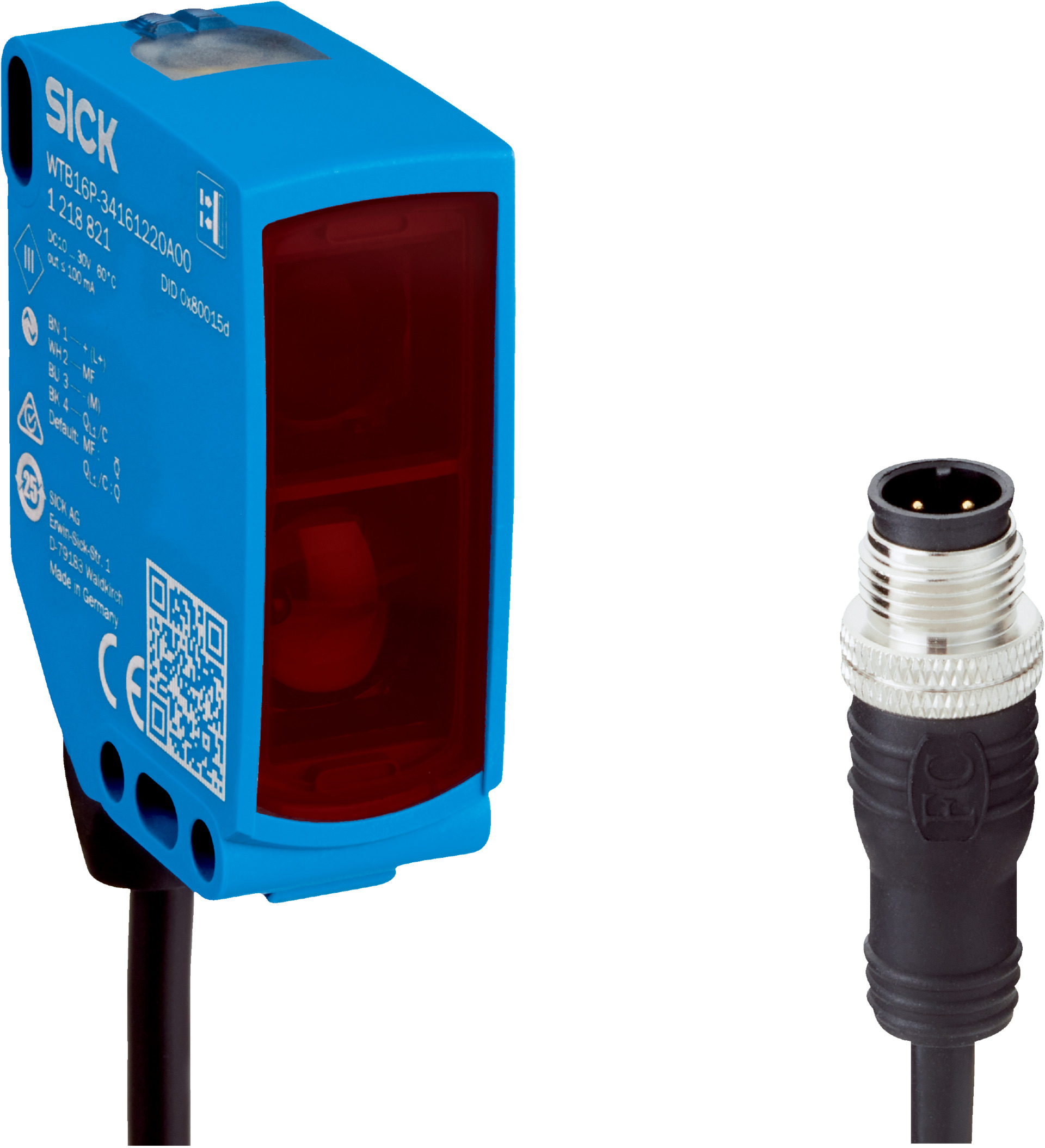

Photoelectric Retro-Reflective Sensor | 10m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a PinPoint LED light source with a 635 nm wavelength. With its robust IP66/IP67/IP69 rated enclosure, this sensor is perfect for detecting objects in harsh environments, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 10 m, recommended 0 to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Material: Plastic housing (VISTAL®), front screen PMMA, cable PVC
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operating status, and light beam status
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust protection
- Detects objects wrapped in film
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and secure mounting, especially in industrial environments.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by minimizing sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLA16P-34161100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
