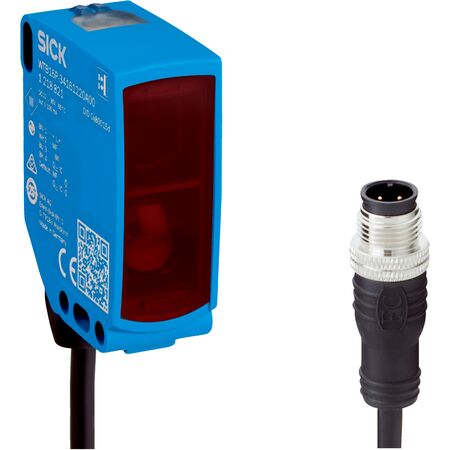

Photoelectric Retro-Reflective Sensor WLA16P-3416N100A00 | 10m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WLA16P-3416N100A00 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 10 meters and a fast response time of ≤ 500 µs. With robust IP66/IP67/IP69 protection ratings and a durable VISTAL® housing, this sensor is perfect for environments requiring reliable performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 10 m, recommended 0 to 7 m with PL80A reflector
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Material: Plastic VISTAL® housing, PMMA front screen, PVC cable
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, power, IO-Link mode, and object detection status
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant with high electromagnetic compatibility
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, connection, and configuration using IO-Link for optimal sensor performance.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Use in environments requiring precise sensing up to 10 meters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLA16P-3416N100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
