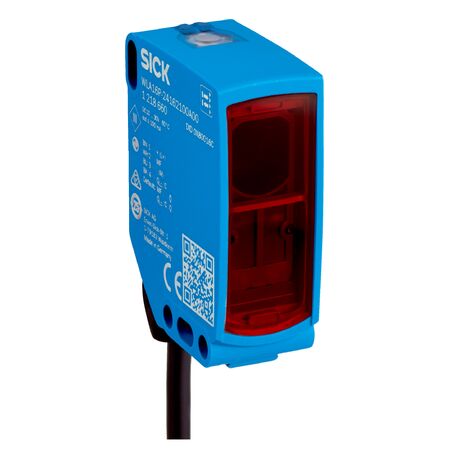

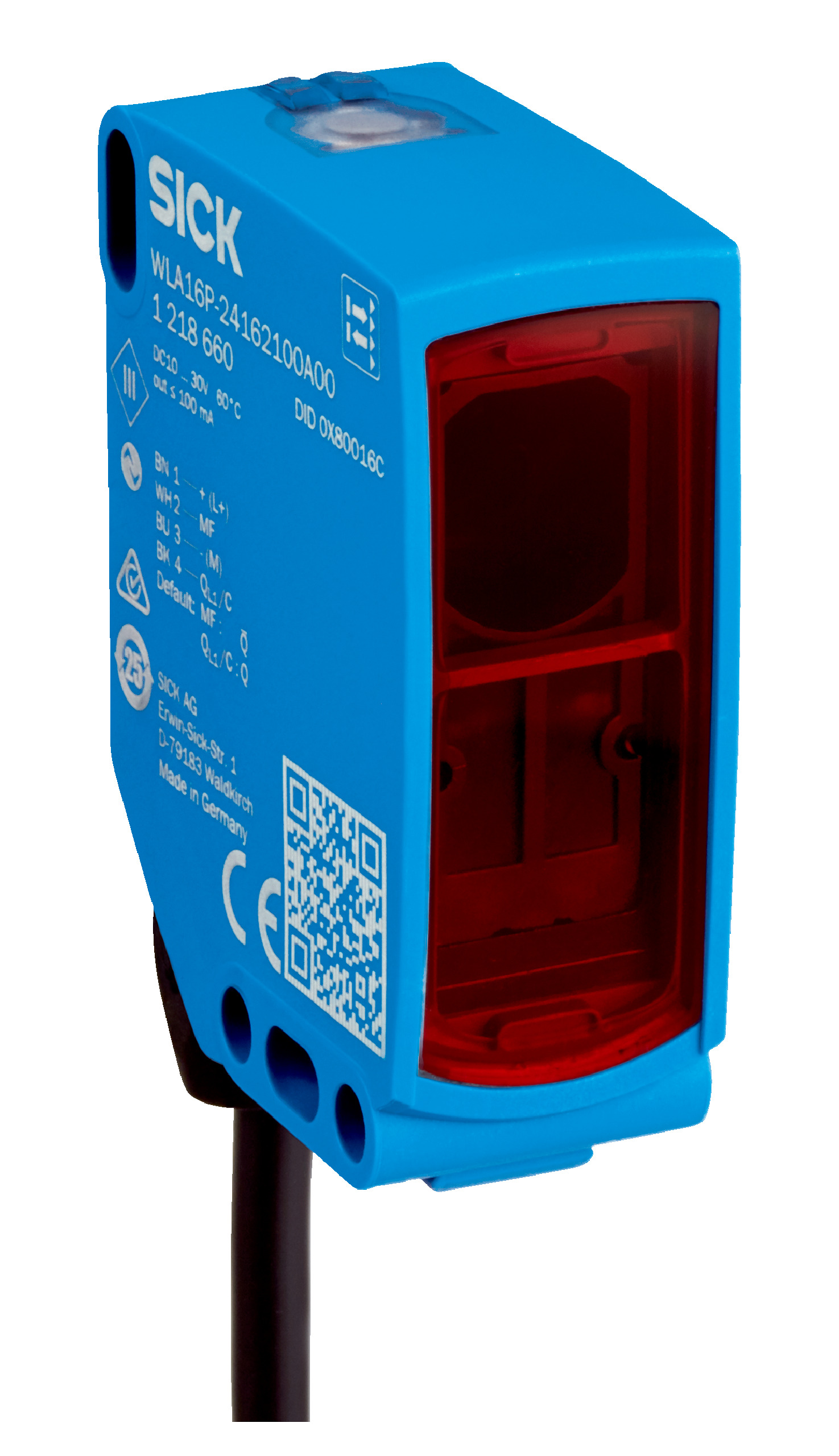

Photoelectric Retro-Reflective Sensor | 10m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a robust IP66/IP67/IP69 housing. With a PinPoint LED light source and high switching frequency of 1000 Hz, it excels in detecting objects in harsh environments, ensuring reliable performance for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 10 m, recommended 0 m to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Connection: 4-wire cable, 5 m length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- Maximum tightening torque of fixing screws: 1.3 Nm
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- LED indicators for alignment, power, IO-Link mode, and object detection status
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal performance.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLA16P-6H162100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
