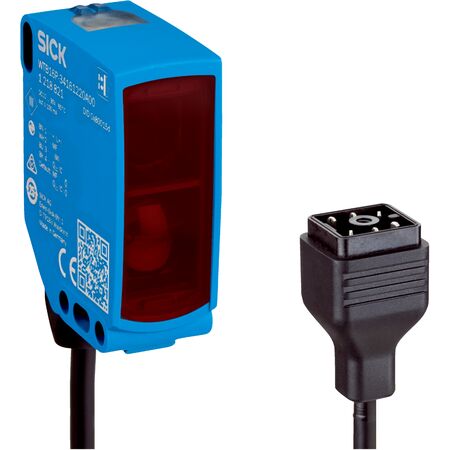

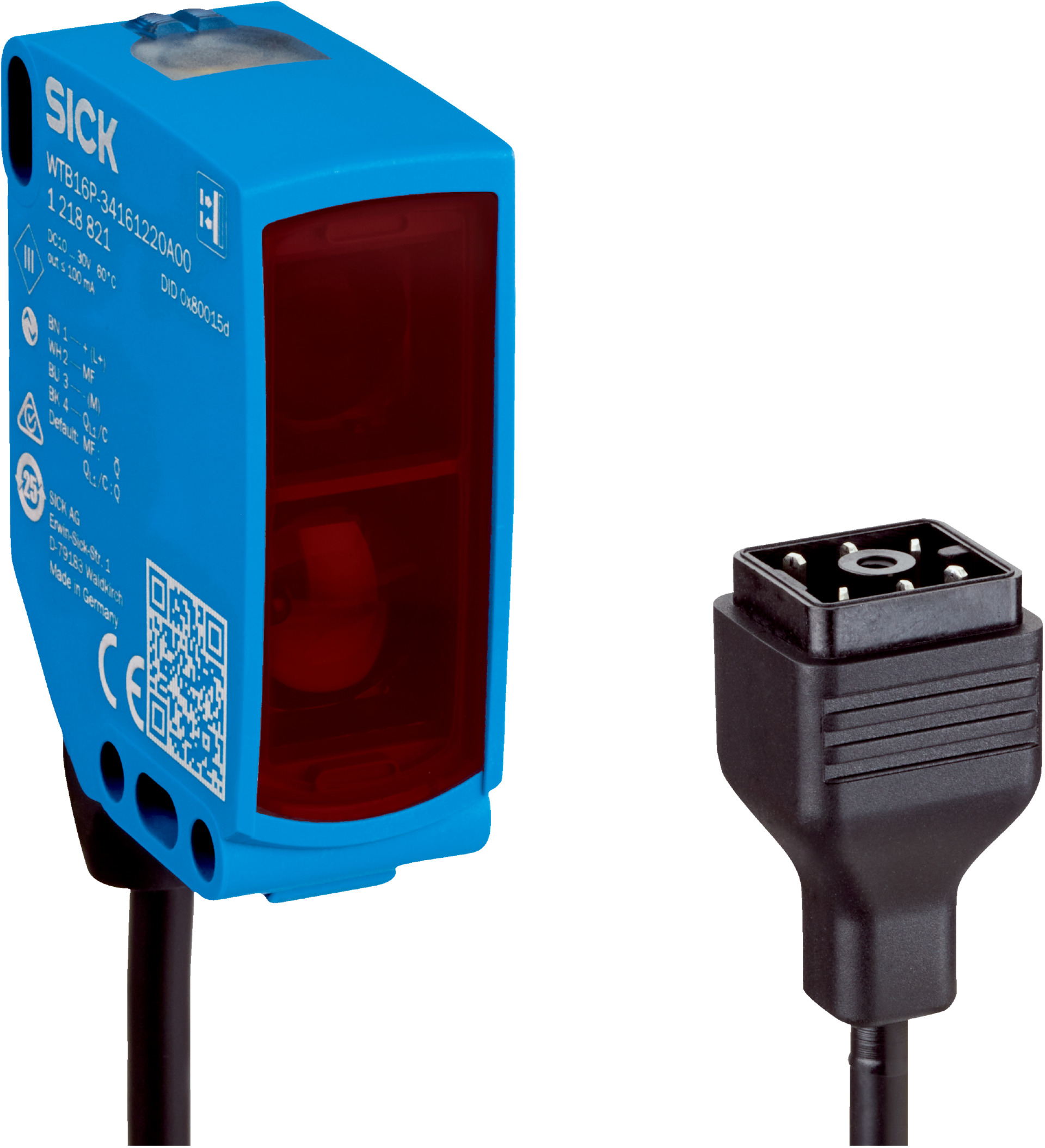

Photoelectric Retro-Reflective Sensor | 10m Sensing Range | PinPoint LED | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a PinPoint LED light source with a 635 nm wavelength. With a fast response time of ≤ 500 µs and a robust IP65-rated housing, this sensor is perfect for object detection in packaging lines and manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 10 m, recommended 0 m to 7 m with PL80A reflector
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs, switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Cable with Q6 male connector, 6-pin, DC-coded, 298 mm
- Enclosure rating: IP65
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- LED indicators for alignment, power, and object detection status
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP65 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Protection against reverse polarity, overcurrent, and short-circuit
- Cable with Q6 male connector, 6-pin, DC-coded, 298 mm length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Packaging lines for detecting objects wrapped in film
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLA16P-39X22100SZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
