Photoelectric Retro-Reflective Sensor | 10 mm Minimum Object Size | 4.5 m Sensing Range | IP66/IP67 Rated | by SICK

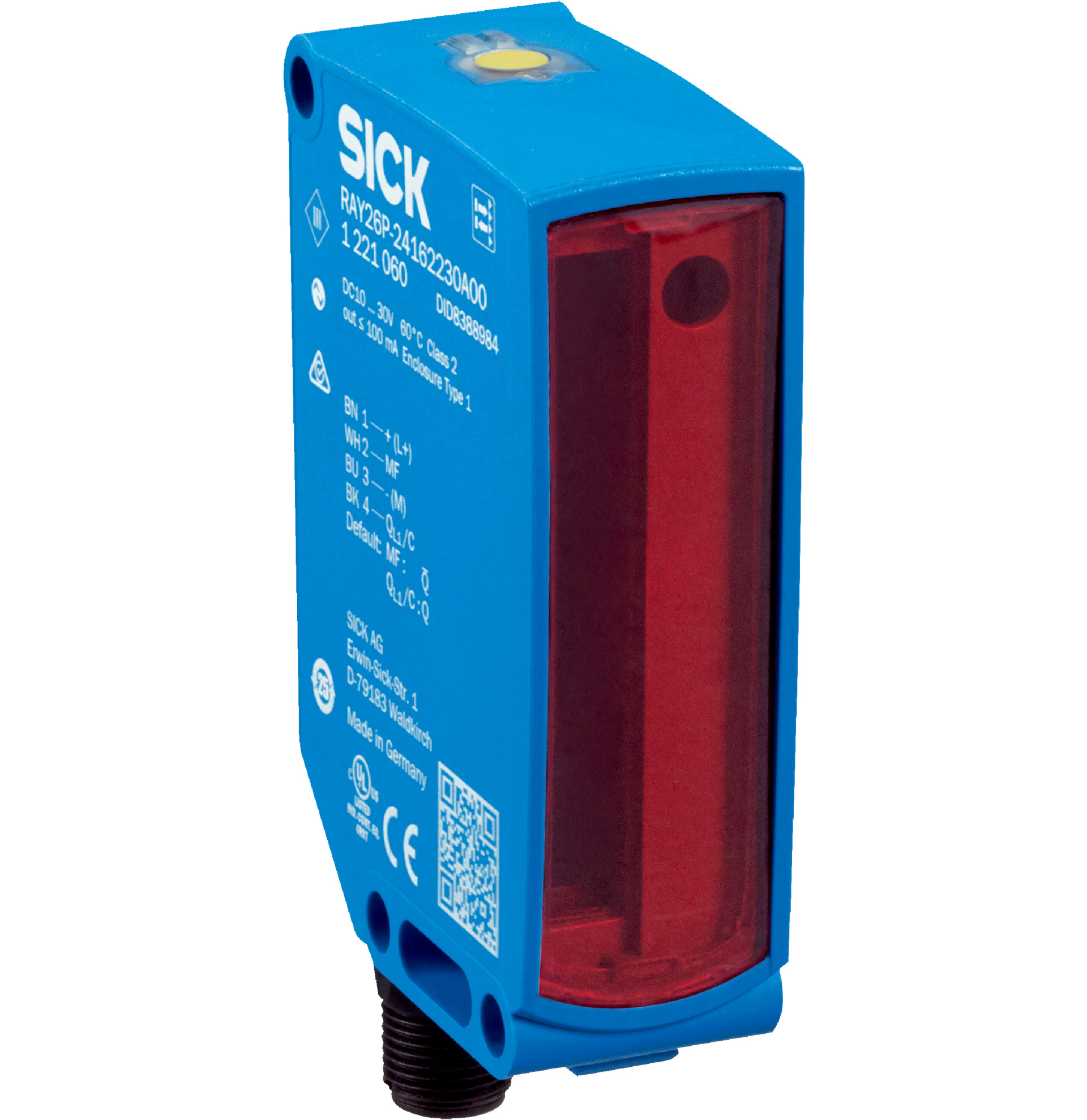

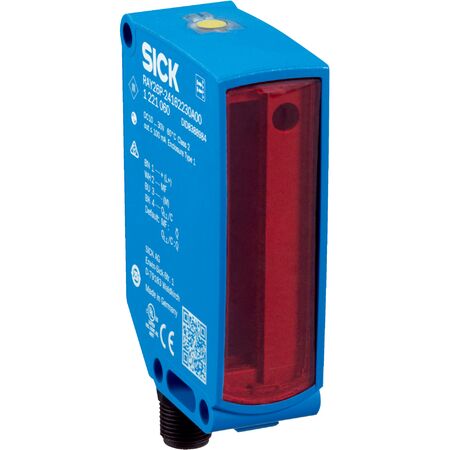

The Photoelectric Retro-Reflective Sensor RAY26P-1H161930A00 is designed for precise object detection in industrial automation. With a minimum object size detection of 10 mm and a sensing range of up to 4.5 m, it excels in conveyor belt systems and can detect transparent or shiny objects. Featuring a robust IP66/IP67 enclosure rating and a fast response time of ≤ 3 ms, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics), Reflex Array
- Minimum object size: 10 mm, position-independent detection within light array
- Detection height: 55 mm
- Sensing range max.: 0 m to 4.5 m
- Light source: PinPoint LED, wavelength 635 nm
- Adjustment: BluePilot teach-in, IO-Link
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA to 40 mA
- Switching output: Push-pull PNP/NPN
- Switching frequency: 170 Hz
- Response time: ≤ 3 ms
- Connection type: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -40 °C to +60 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Minimum object size detection of 10 mm
- Sensing range up to 4.5 m
- BluePilot teach-in and IO-Link adjustment
- Push-pull PNP/NPN switching output
- High switching frequency of 170 Hz and response time ≤ 3 ms
- Enclosure rating IP66 and IP67 for robust protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Manual conveyor belt suppression
- Plastic VISTAL® housing with PMMA optics
- Communication interface IO-Link V1.1 with 2.3 ms cycle time
- Smart Task logic functions including AND, OR, window hysteresis, and timers
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Conveyor belt systems
- Detection of transparent, shiny, perforated, and flat objects
- Position-independent detection within light array
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP66/IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RAY26P-1H161930A00 photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
