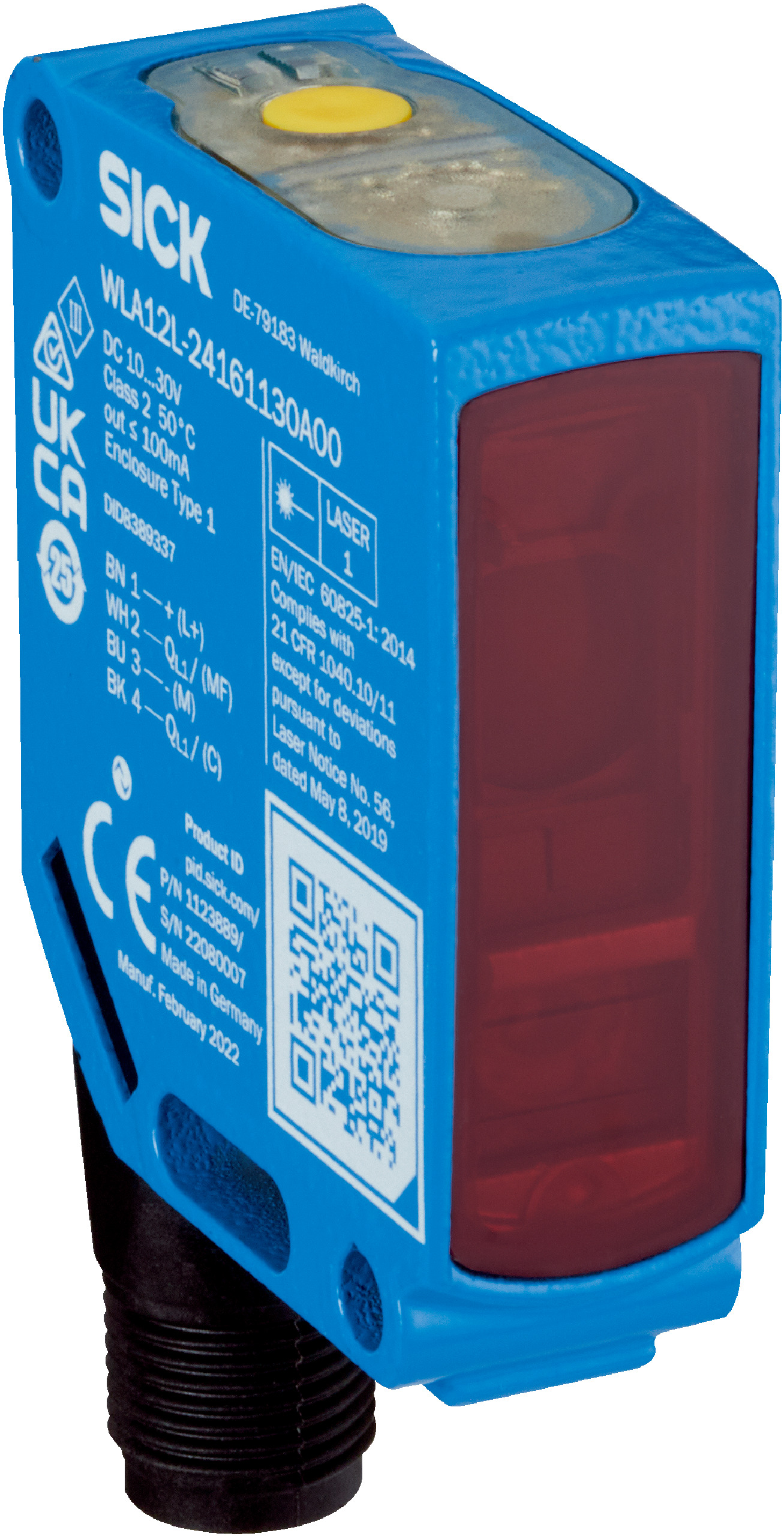

Photoelectric Retro-Reflective Sensor | 11m Sensing Range | IO-Link Interface | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection, featuring a sensing range of up to 11 meters and a visible red laser light source. Ideal for industrial automation, this sensor offers fast response times and high switching frequencies, ensuring reliable performance in various applications. With robust IP66/IP67/IP69 protection ratings, it withstands harsh environments while providing energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 11 m; recommended best performance 0 mm to 300 mm
- Light source: Visible red laser, wavelength 655 nm
- Laser class: 1
- Pulse duration: 4 µs
- Maximum pulse power: < 2.13 mW
- Average service life: 50,000 hours at 25 °C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN, light/dark switching
- Response time: ≤ 200 µs
- Switching frequency: 2,500 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection: Male M12, 4-pin connector
- Housing material: Metal zinc diecast
- Front screen: Plastic PMMA
- Weight: Approx. 77 g
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 11 m with recommended best performance range 0 mm to 300 mm
- Visible red laser light source with ellipse-shaped light spot
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operating status, and light beam status
- High switching frequency up to 2,500 Hz and fast response time ≤ 200 µs
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -20 °C to +55 °C
- Resistance to cleaning agents certified by ECOLAB
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment, wiring, and configuration using IO-Link.
Applications
- Detecting small objects
- Detection of objects moving at high speeds
- Detecting objects wrapped in film
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- ECOLAB certified resistance to cleaning agents supports sustainable maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

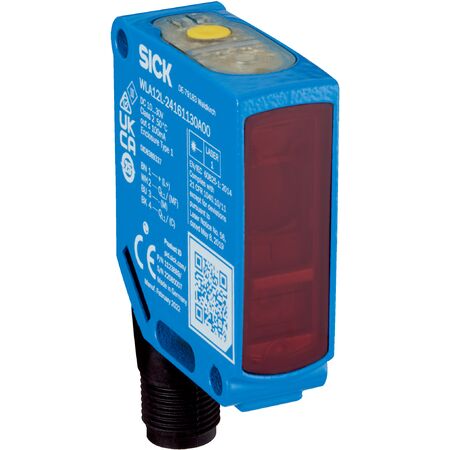

The SICK WLA12L-24162230A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
