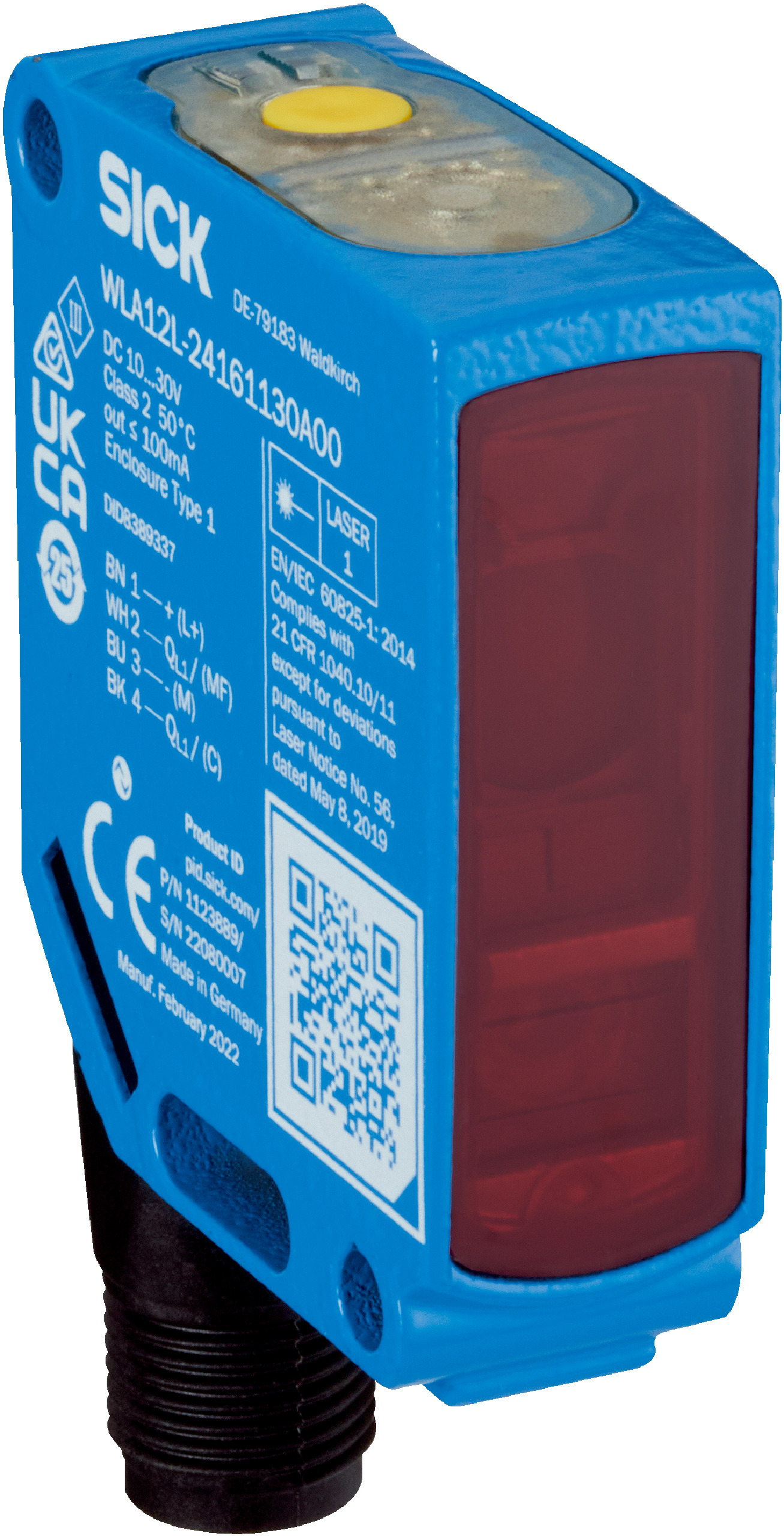

Photoelectric Retro-Reflective Sensor | 11m Sensing Range | IO-Link Interface | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation, featuring a sensing range of up to 11 meters and a visible red laser light source. With robust IP66/IP67/IP69 protection ratings and an IO-Link interface for easy configuration, this sensor is perfect for detecting small objects and those wrapped in film, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 11 m; recommended 0 m to 7.5 m
- Light source: Visible red laser, wavelength 655 nm
- Laser class: 1
- Pulse duration: 4 µs
- Maximum pulse power: < 2.13 mW
- Average service life: 50,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 200 µs
- Switching frequency: 2,500 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Connection: Male M12, 4-pin connector
- Housing material: Metal zinc diecast
- Front screen: Plastic PMMA
- Weight: Approx. 77 g
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 11 m with recommended best performance range 0-500 mm
- Visible red laser light source with ellipse-shaped light spot
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- LED indicators for alignment, operating status, and received light beam status
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Dual complementary push-pull digital outputs with light/dark switching
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, wiring, and configuration using IO-Link interface.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small objects and objects wrapped in film
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Compliant with ECOLAB standards for resistance to cleaning agents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

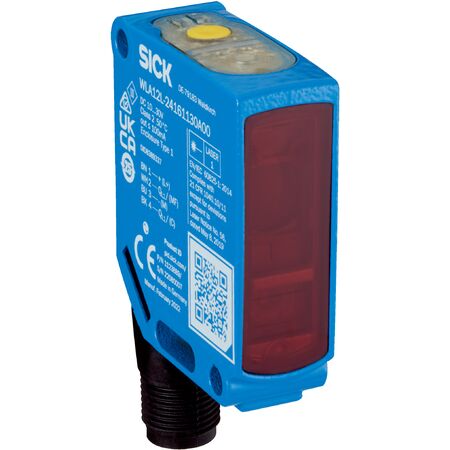

The SICK WLA12L-24162730A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
