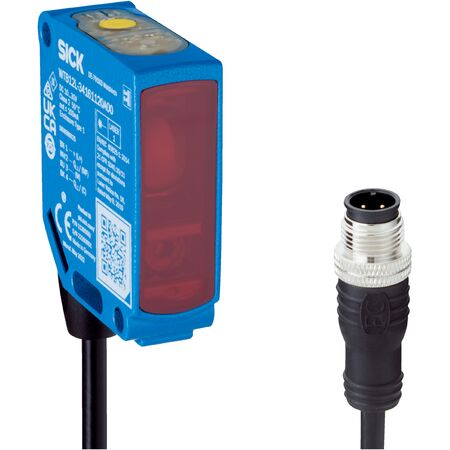

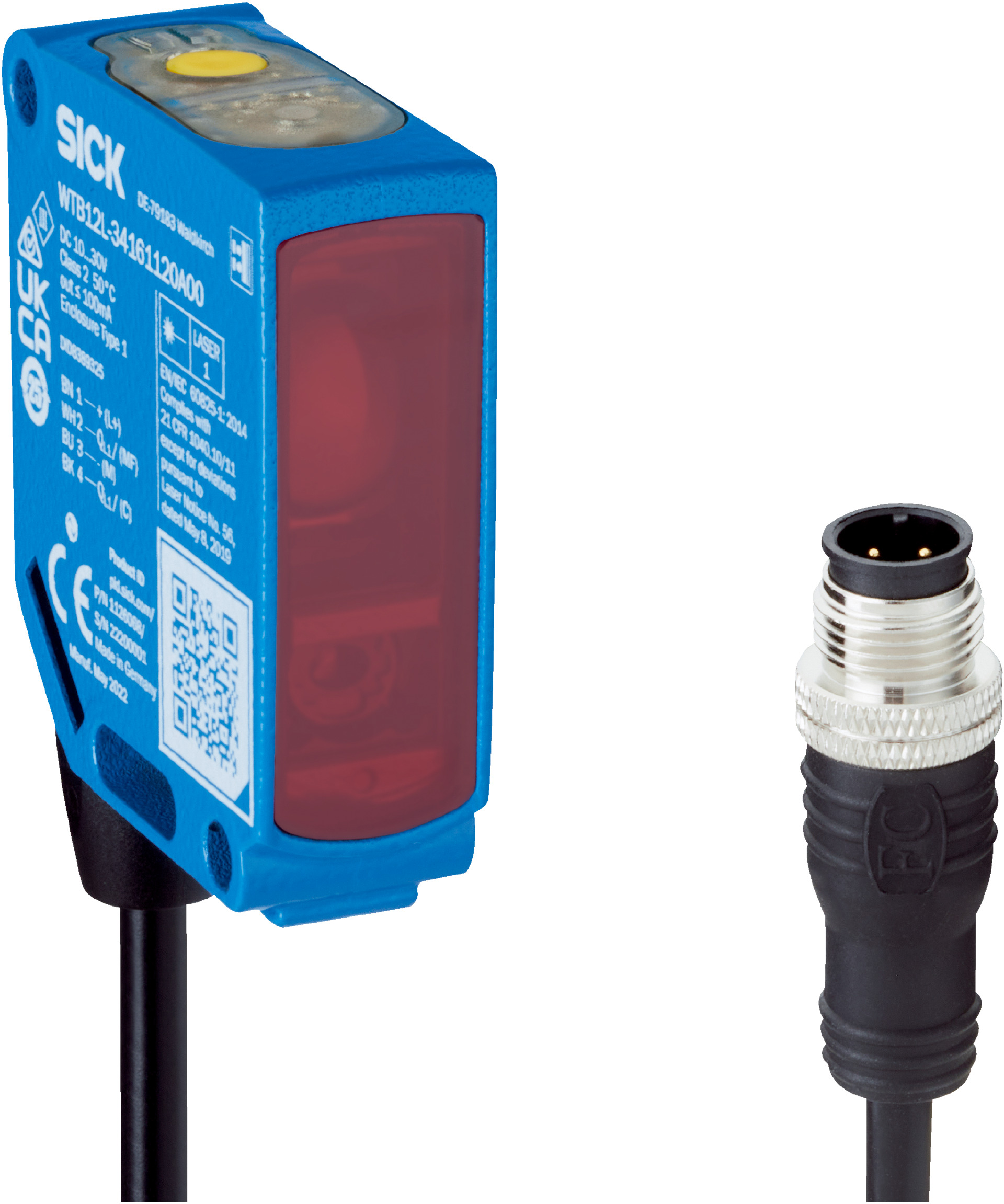

Photoelectric Retro-Reflective Sensor | 11m Sensing Range | Visible Red Laser | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation, featuring a sensing range of up to 11 meters and a visible red laser light source. With robust IP66/IP67/IP69 protection and a durable metal housing, it ensures reliable performance in challenging environments, making it ideal for detecting small objects and those wrapped in film.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 11 m; recommended best performance 0 mm to 600 mm
- Light source: Visible red laser, wavelength 655 nm, laser class 1
- Emitted beam: Ellipse shape, 0.4 mm x 0.35 mm at 300 mm distance
- Response time: ≤ 200 µs; switching frequency up to 2,500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Housing: Metal zinc diecast with plastic front screen
- Connection: Cable with M12 male connector, 4-pin, 315 mm length
- Operating temperature: -20 °C to +55 °C
- Enclosure rating: IP66, IP67, IP69
- Communication: IO-Link V1.1 with 16-bit process data length
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 11 m with recommended best performance range 0-600 mm
- Visible red laser light source with ellipse-shaped light spot
- BluePilot teach-in button for sensitivity adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operating status, and light beam status
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and configuration using BluePilot and IO-Link interface.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small objects and objects wrapped in film
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life of 50,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLA12L-34162830A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
