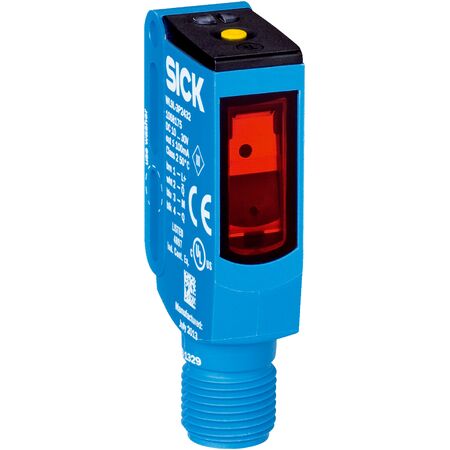

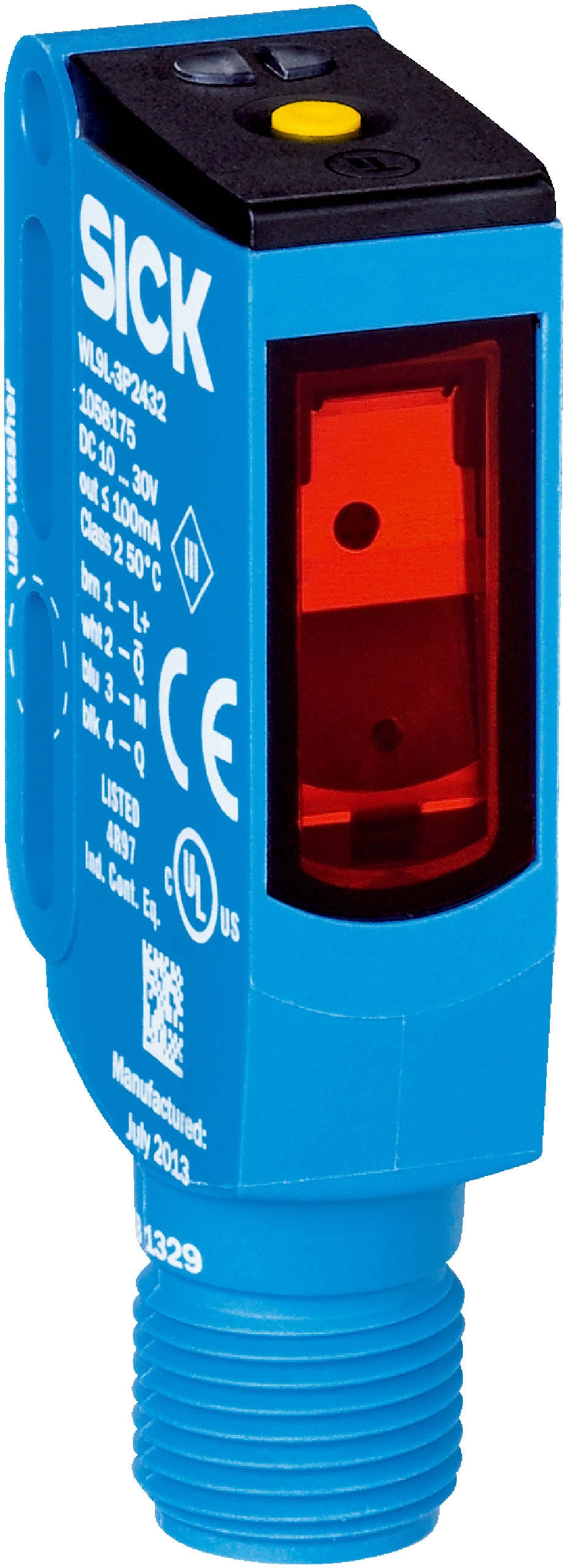

Photoelectric Retro-Reflective Sensor | 12m Sensing Range | IO-Link Communication | Laser Class 1 | by SICK
The Photoelectric Retro-Reflective Sensor WL9LC-3P2432A00 is designed for precise object detection in industrial automation, featuring a sensing range of up to 12 meters without a reflector. With a visible red laser light source and IO-Link communication, it ensures high performance and easy integration. Ideal for manufacturing lines and quality control, this robust sensor operates in extreme temperatures and offers multiple protection ratings for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics)
- Sensing range max: 0 m to 12 m
- Type of light: Visible red light, Laser
- Light spot size: Ø 1 mm at 500 mm distance
- Wave length: 650 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Adjustment: IO-Link, Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10°C to +50°C (standard), -30°C to +55°C (extended)
- Storage temperature: -30°C to +70°C
- Polarizing filter included
- Circuit protection: Types A, B, C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 16 Bit
- Smart Task functions: Base logics including AND, OR, WINDOW, Hysteresis, timers, inverter
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector
- Laser class 1 safety certified (IEC 60825-1)
- IO-Link communication interface for smart sensor integration
- High switching frequency up to 1000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -30°C to +55°C (extended)
- M12 4-pin male connector for easy installation
- Complementary PNP switching output with light/dark switching mode
- Device contamination alarm output and diagnostic functions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable IP-rated housing minimizes environmental damage and waste
- Supports smart diagnostics to reduce downtime and resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9LC-3P2432A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
