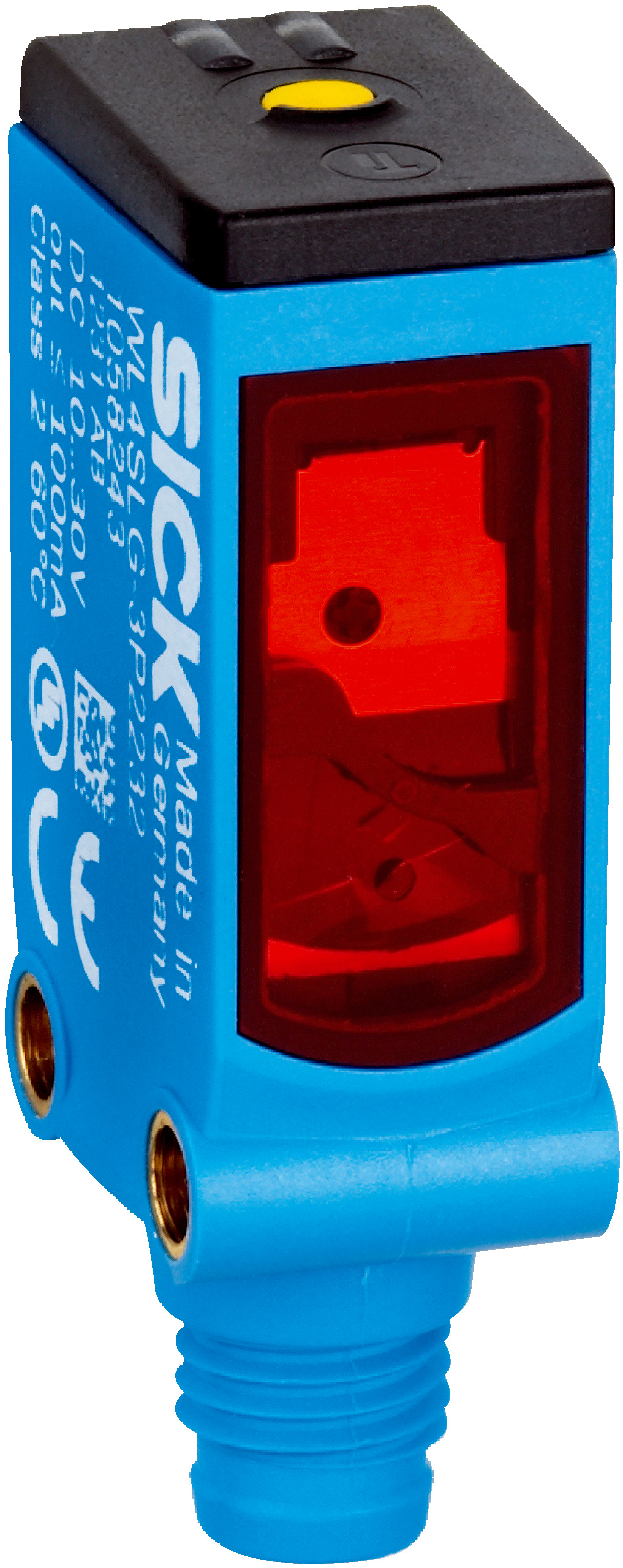

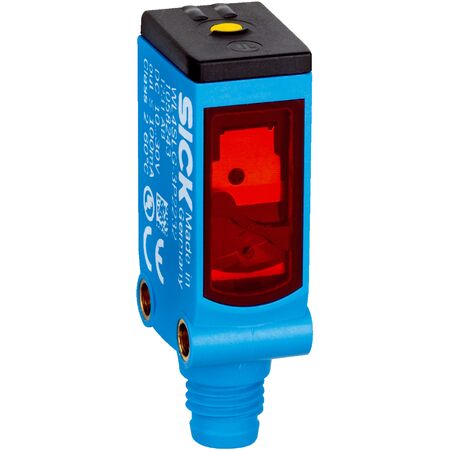

Photoelectric Retro-Reflective Sensor WL4SL-3F3232 | 12m Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4SL-3F3232 is designed for precise object detection in industrial automation, featuring a sensing range of up to 12 meters with a reflector and a fast response time of ≤ 0.5 ms. With its durable IP66/IP67 rated housing and energy-efficient laser technology, this sensor is perfect for manufacturing lines and safety control systems, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range max: 0 m to 12 m with reflector, 0 m to 8 m without reflector
- Light source: Laser, visible red light, wavelength 650 nm
- Laser class: 1 according to EN 60825-1:2014 and IEC 60825-1:2014
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic, Novodur
- Connection: Cable with M8 male connector, 4-pin
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 12 meters with reflector, 8 meters without
- Visible red laser light source with 1 mm spot size at 500 mm
- Polarisation filters for enhanced detection reliability
- Single teach-in button for easy adjustment
- Slim plastic Novodur housing with IP66 and IP67 protection
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- PNP output with light/dark switching mode and complementary output function
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL4SL-3F3232 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
