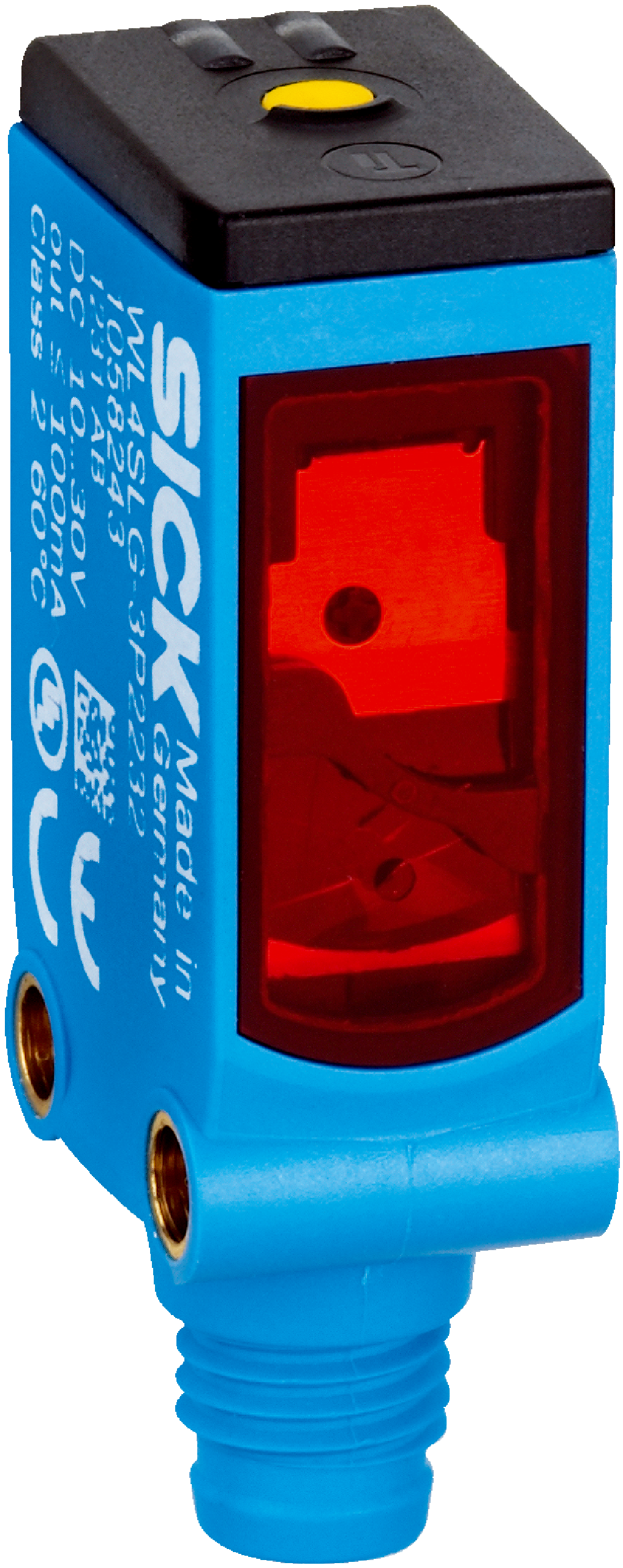

Photoelectric Retro-Reflective Sensor | 12m Sensing Range | Polarisation Filter | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 12 meters without a reflector and a polarisation filter for enhanced reliability. With a fast response time of ≤ 0.5 ms and a compact design, this sensor is perfect for small object detection in manufacturing lines and safety systems, ensuring efficient operation in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Object detection sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 12 m without reflector, 0 m to 8 m with reflector
- Polarisation filter: Yes
- Light source: Laser, visible red light, 650 nm wavelength
- Light spot size: Ø 1 mm at 500 mm distance
- Laser class: 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: Types A, B, C
- Housing material: Plastic, Novodur
- Front screen material: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 12 meters without reflector, 8 meters with reflector
- Polarisation filter for enhanced detection reliability
- Visible red laser light source with 650 nm wavelength
- Compact slim design with plastic Novodur housing
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP66 and IP67 rated for dust and water protection
- Cable adjustment with single teach-in button
- M3 mounting hole for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

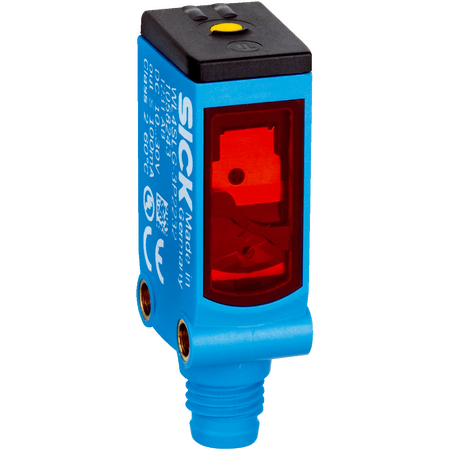

The SICK WL4SL-3F2234 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
