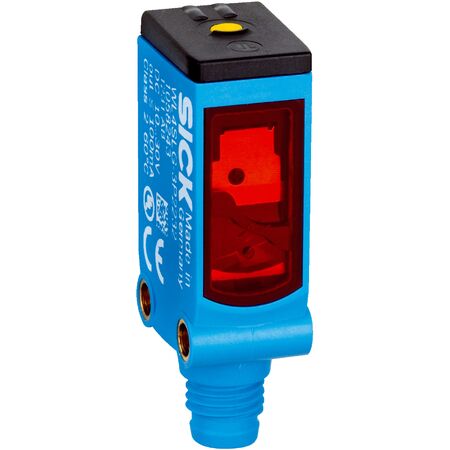

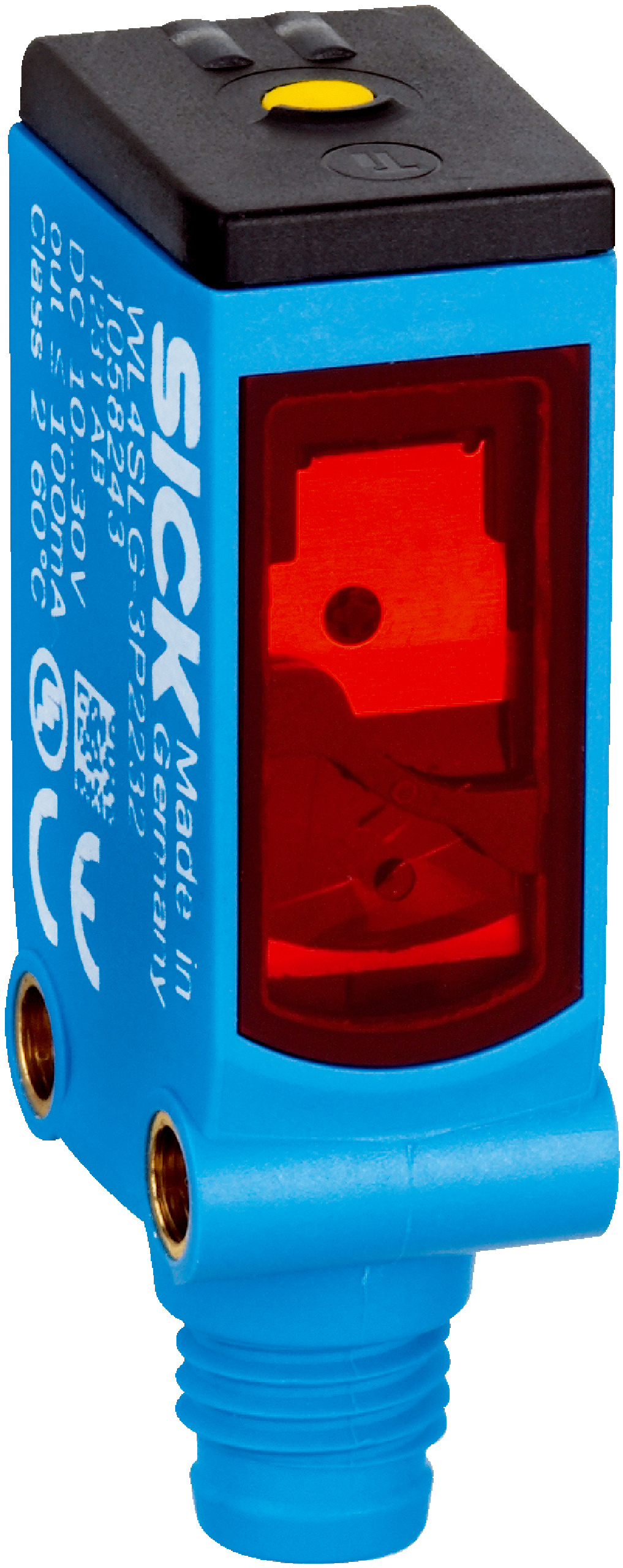

Photoelectric Retro-Reflective Sensor WL4SLC-3P2232A71 | 12m Sensing Range | IO-Link Communication | by SICK
The Photoelectric Retro-Reflective Sensor WL4SLC-3P2232A71 is designed for precise object detection in industrial automation, featuring a sensing range of up to 12 meters with a reflector and a fast response time of ≤ 0.5 ms. With its durable IP66/IP67 housing and visible red laser light source, this sensor is perfect for small object detection and quality control systems, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range max: 0 m to 12 m with reflector, 0 m to 8 m without reflector
- Light source: Visible red laser, 650 nm wavelength, laser class 1
- Polarisation filters: Yes
- Adjustment: IO-Link, Single teach-in button
- Mounting hole: M3
- Pin 2 configuration: External input, Teach-in input, Sender off input, Detection output, logic output, Device contamination alarm output
- MTTFD: 562 years (EN ISO 13849-1)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Communication interface: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms, 16 Bit process data length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 12 m with reflector, 8 m without reflector
- Visible red laser light source with 650 nm wavelength
- Polarisation filters included
- IO-Link communication interface with 38.4 kBaud data rate
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Slim plastic Novodur housing with IP66 and IP67 protection
- Operating temperature range from -30 °C to +55 °C (extended)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connection and alignment for optimal sensor performance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 housing minimizes environmental damage and waste
- Long service life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WL4SLC-3P2232A71 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
