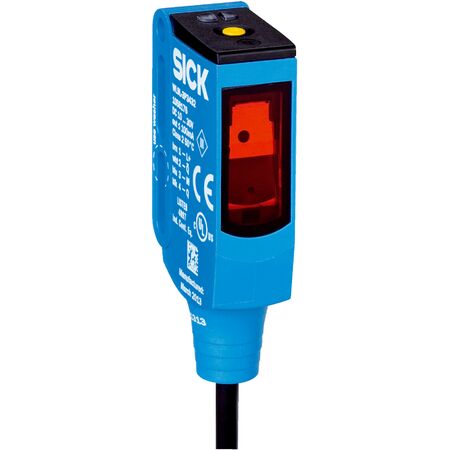

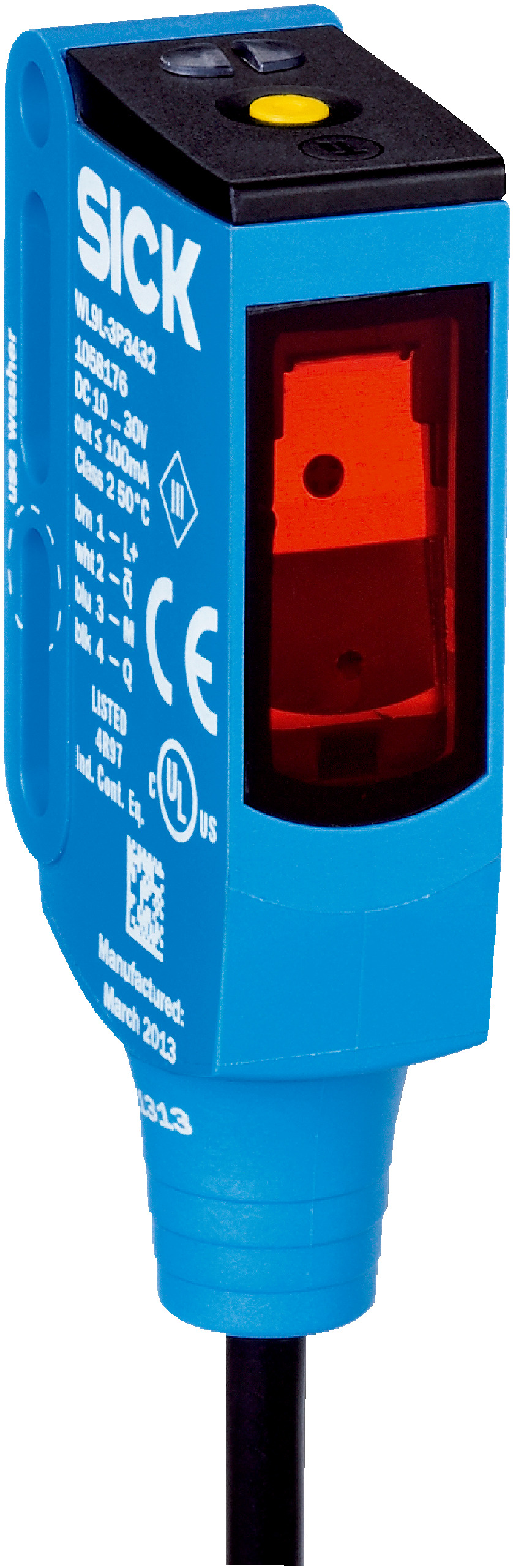

Photoelectric Retro-Reflective Sensor | 12m Sensing Range | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9L-3P3032S04 is designed for precise object detection in industrial automation. With a sensing range of up to 12 meters and a fast response time of ≤ 0.5 ms, it ensures reliable performance in safety and control systems. Featuring a durable IP66/IP67/IP69K rated housing, this sensor is built to withstand harsh environments, making it ideal for manufacturing lines and small object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector, 8 meters with reflector
- Single teach-in button for easy adjustment
- Rectangular housing design with M3 mounting hole
- High protection rating: IP66, IP67, IP69K
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included to reduce false triggers
- Operating temperature range from -30 °C to +55 °C extended
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9L-3P3032S04 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
