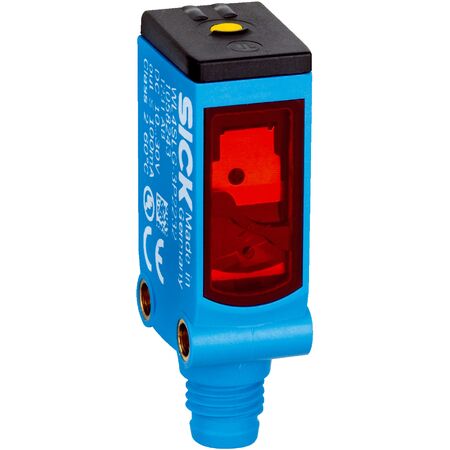

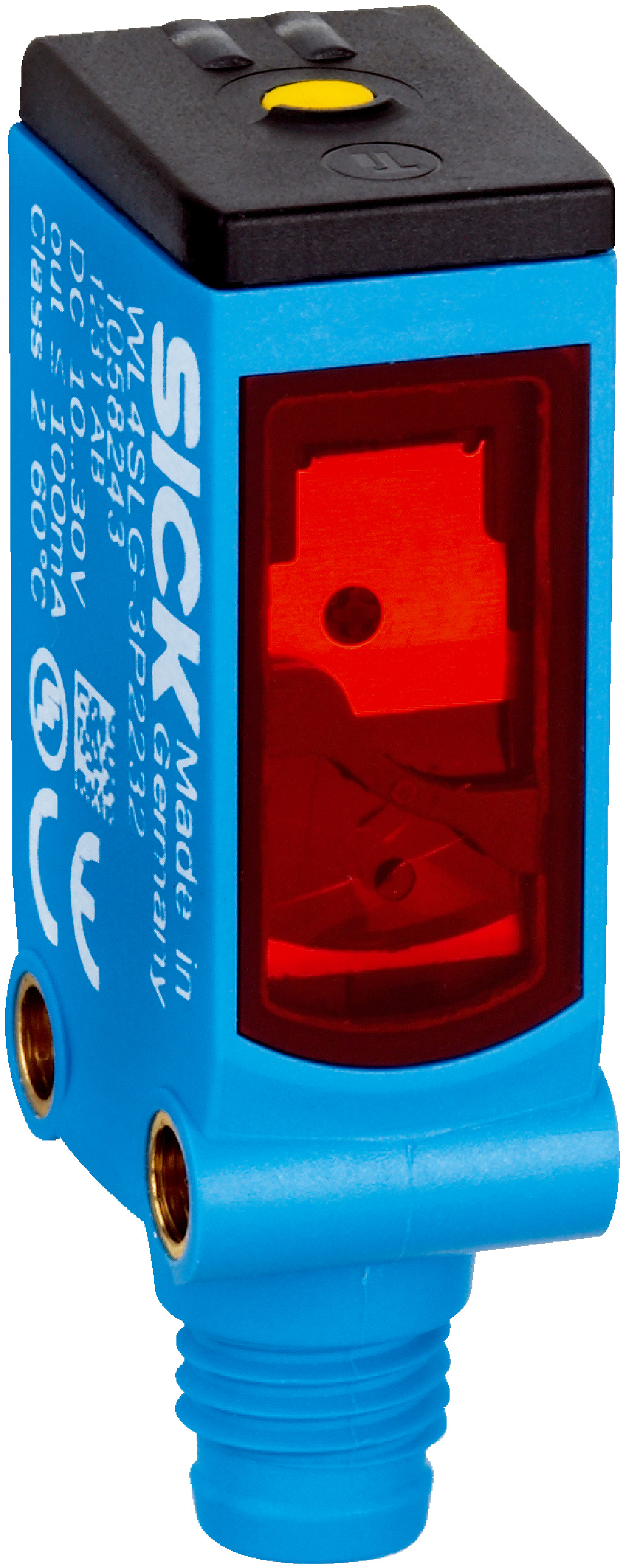

Photoelectric Retro-Reflective Sensor | 12m Sensing Range | Visible Red Laser | IP66/IP67 Rated | by SICK
The WL4SLC-3P2232A70 photoelectric retro-reflective sensor is designed for precise object detection in industrial automation. With a sensing range of up to 12 meters using a reflector and a fast response time of ≤ 0.5 ms, it ensures reliable performance. Featuring a visible red laser light source and IP66/IP67 protection, this sensor is perfect for safety and quality control systems in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation optics
- Sensing range: 0 m to 12 m with reflector, 0 m to 8 m without reflector
- Light source: Visible red laser, 650 nm wavelength, laser class 1
- Polarisation filters: Yes
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP complementary, light/dark switching
- Max output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Connection: Male M8, 4-pin connector
- Housing material: Plastic, Novodur; Front screen: Plastic, PMMA
- Communication: IO-Link COM2 (38.4 kBaud), 16 Bit process data
- Dimensions (H x L x W): 42mm x 17mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 12 meters with reflector, 8 meters without
- Visible red laser light source with 650 nm wavelength
- Polarisation filters included
- Slim plastic Novodur housing with IP66 and IP67 protection
- Fast response time ≤ 0.5 ms and high switching frequency up to 1000 Hz
- IO-Link communication interface with 16 Bit process data length
- Multiple output functions including complementary PNP output
- Mounting with M3 holes and 4-pin M8 male connector
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and secure mounting; electrical connections should comply with local standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL4SLC-3P2232A70 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
