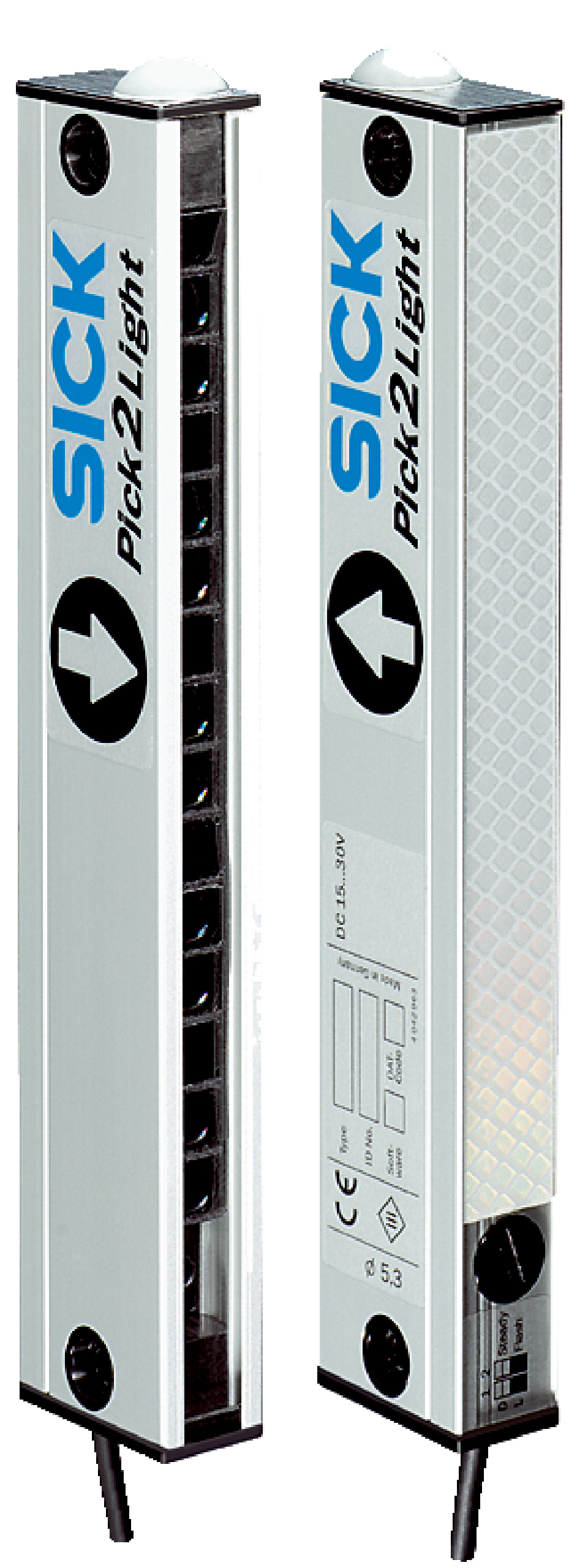

Photoelectric Retro-Reflective Sensor | 13 Beams & 360 mm Detection Height | PNP Output | IP54 Rated | by SICK
The Photoelectric Retro-Reflective Sensor PLG3-360F431 is designed for industrial automation, featuring 13 beams with a 30 mm separation and a detection height of 360 mm. With a robust aluminum housing and IP54 rating, it ensures reliable performance in manufacturing and material handling applications, while its PNP output and LED indication provide operational clarity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 13 Beams & 360 mm Detection Height | PNP Output | IP54 Rated | by SICK
Brand: SICK
SKU: 1029131
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK PLG3 Sensor, Industrial Object Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 13
- Detection height: 360 mm
- Wavelength: 650 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 45 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: PNP
- Output mode: Q dark switching
- Current consumption job LED: 10 mA
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Indication: LED
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 110 mm
- Operating range: 1.3 m
- Response time: < 80 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: –10 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 429.8mm x 36.6mm x 19.2mm
- Weight: 0.45 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 13 beams with 30 mm beam separation
- Detection height of 360 mm
- Operating range of 1.3 m with maximum range of 2 m
- PNP switching output with Q dark switching mode
- LED indication for operational status
- Robust aluminum housing with IP54 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 45 mA current draw
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PLG3-360F431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
