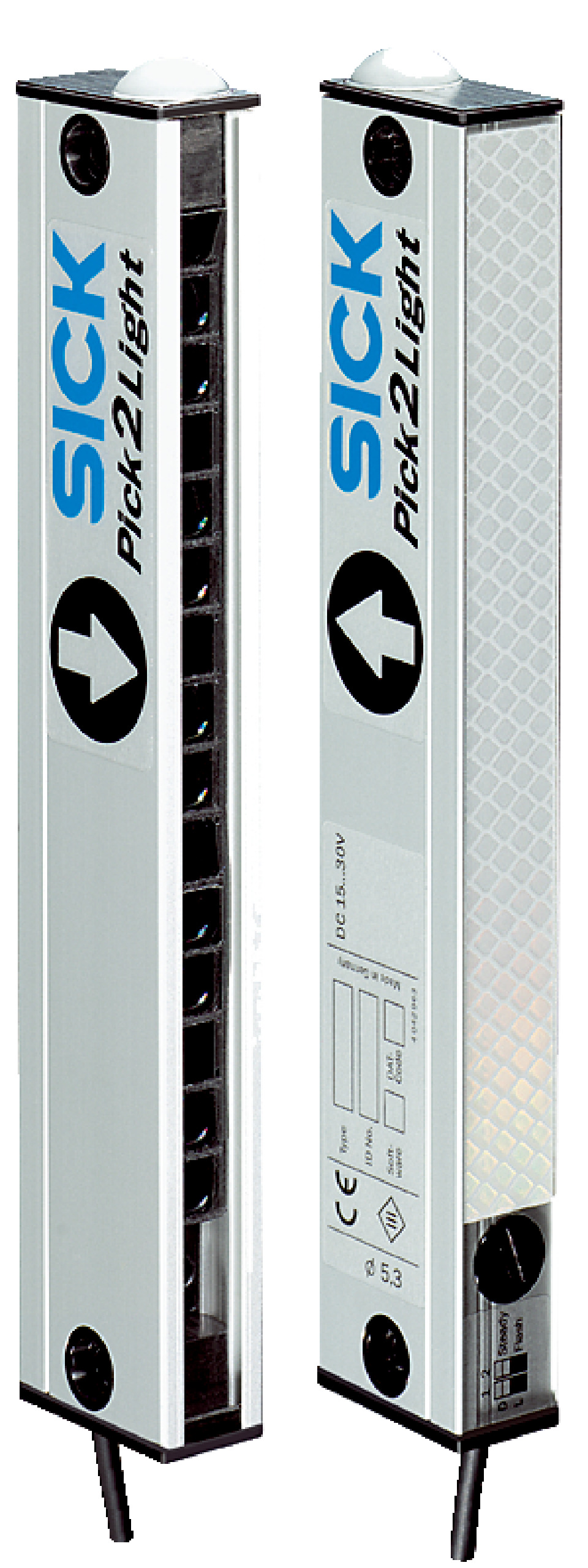

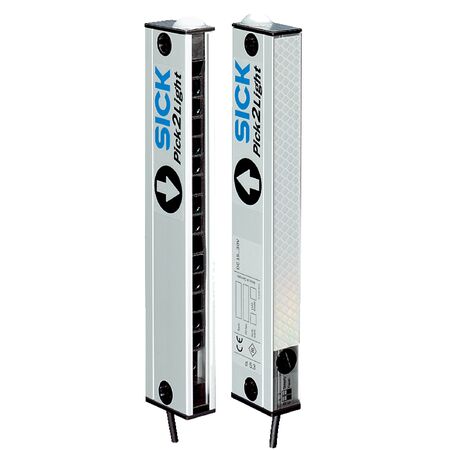

Photoelectric Retro-Reflective Sensor | 15 Beams & 30 mm Beam Separation | 420 mm Detection Height | IP54 Rated | by SICK
The Photoelectric Retro-Reflective Sensor PLG3-420F431 is designed for industrial automation, featuring a robust aluminum housing and 15 beams with 30 mm beam separation for precise object detection. With a detection height of 420 mm and an IP54 enclosure rating, it ensures reliable performance in manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 15 Beams & 30 mm Beam Separation | 420 mm Detection Height | IP54 Rated | by SICK
Brand: SICK
SKU: 1029132
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK PLG3 Sensor, Industrial Object Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective sensor
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 15
- Detection height: 420 mm
- Wavelength: 650 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 45 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: PNP
- Output mode: Q dark switching
- Current consumption job LED: 10 mA
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Enclosure rating: IP54
- Circuit protection: UV connections, reverse polarity protected, output Q short-circuit protected, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 110 mm
- Operating range: 1.3 m
- Response time: < 80 ms
- Shock resistance: 10 g / DIN EN 60068-2-29 / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 68-2-6)
- EMC: EN 60947-5-2
- Ambient operating temperature: –10 °C to +55 °C
- Ambient temperature storage: –40 °C to +70 °C
- Dimensions (H x L x W): 500mm x 37mm x 19mm
- Weight: 0.5 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 15 beams with 30 mm beam separation
- Detection height of 420 mm
- LED indication for operational status
- Robust aluminum housing with IP54 enclosure rating
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with less than 45 mA sender power usage
- Durable aluminum housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PLG3-420F431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
