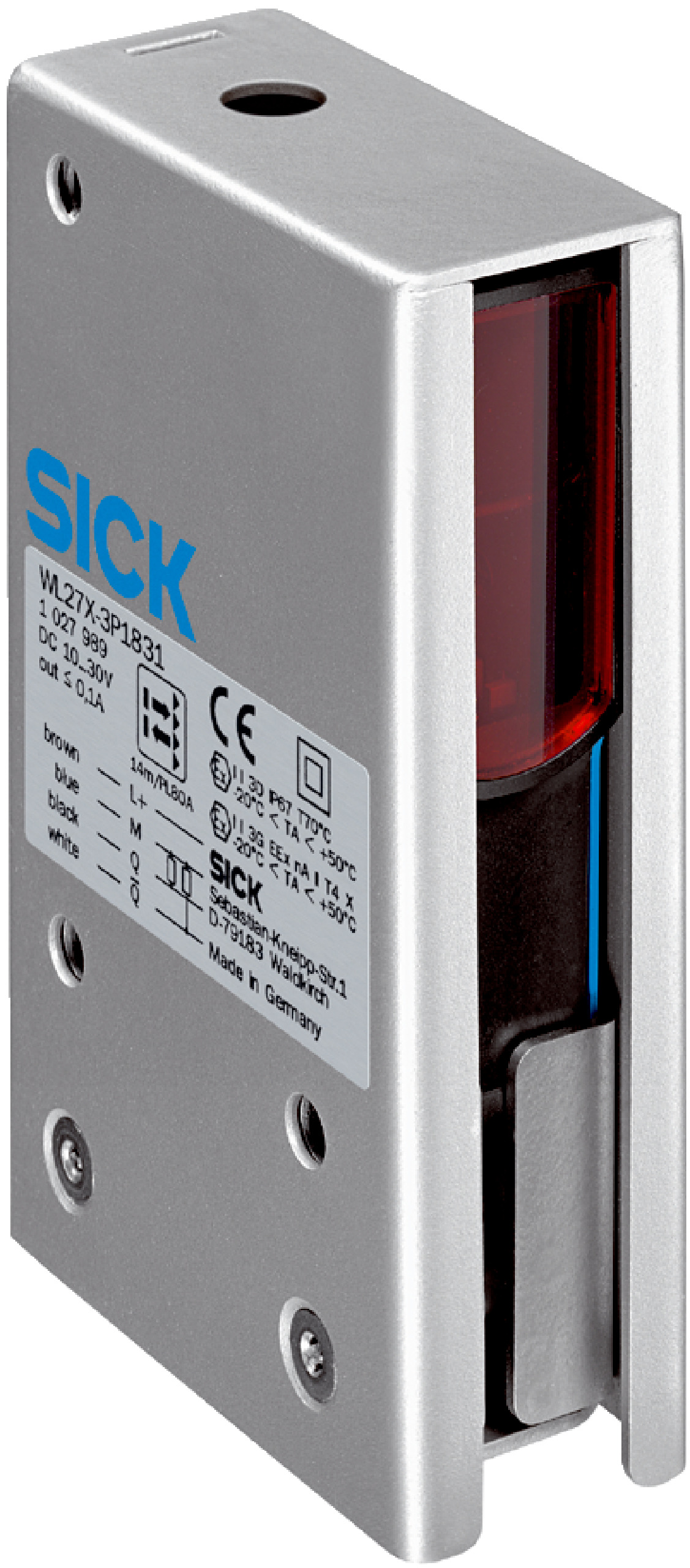

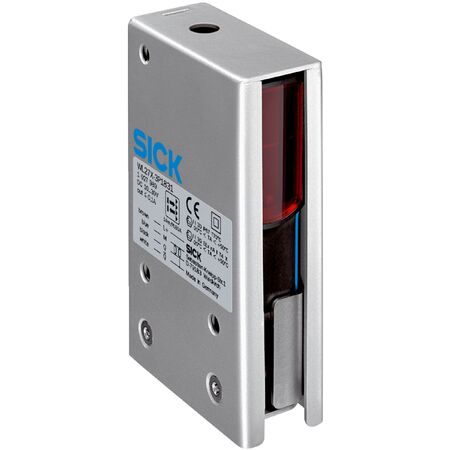

Photoelectric Retro-Reflective Sensor | 15m Sensing Range | IP64 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL27X-3P1831S01 is designed for industrial automation, featuring a 15-meter sensing range and IP64 protection. With a fast response time of ≤ 500 µs and a high switching frequency of 1000 Hz, it's perfect for safety monitoring in explosive environments and material handling applications. Built with durable stainless steel and ABS housing, this sensor ensures reliability and longevity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 10 m length, PVC material
- Protection class: II
- Enclosure rating: IP64
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Metal (Stainless steel V2A 1.4301) and ABS plastic
- Optics material: PMMA plastic
- Light spot size at 10 m: Ø 220 mm
- Focus angle: Approx. 1.5°
- Wave length: 660 nm
- Adjustment: Potentiometer
- Dimensions (H x L x W): 112.3mm x 70.4mm x 31.4mm
- Weight: 0.75 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with 660 nm wavelength
- Sensing range up to 15 meters
- Rectangular metal and ABS housing with IP64 protection
- Polarizing filter included to reduce false triggers
- Light/dark switching mode with complementary PNP output
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- Suitable for use in explosive atmospheres (ATEX and IECEx certified)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor systems and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Safety monitoring in explosive areas
- Material handling and conveyor systems
- Packaging and assembly line control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable stainless steel and ABS housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL27X-3P1831S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications in explosive environments.
