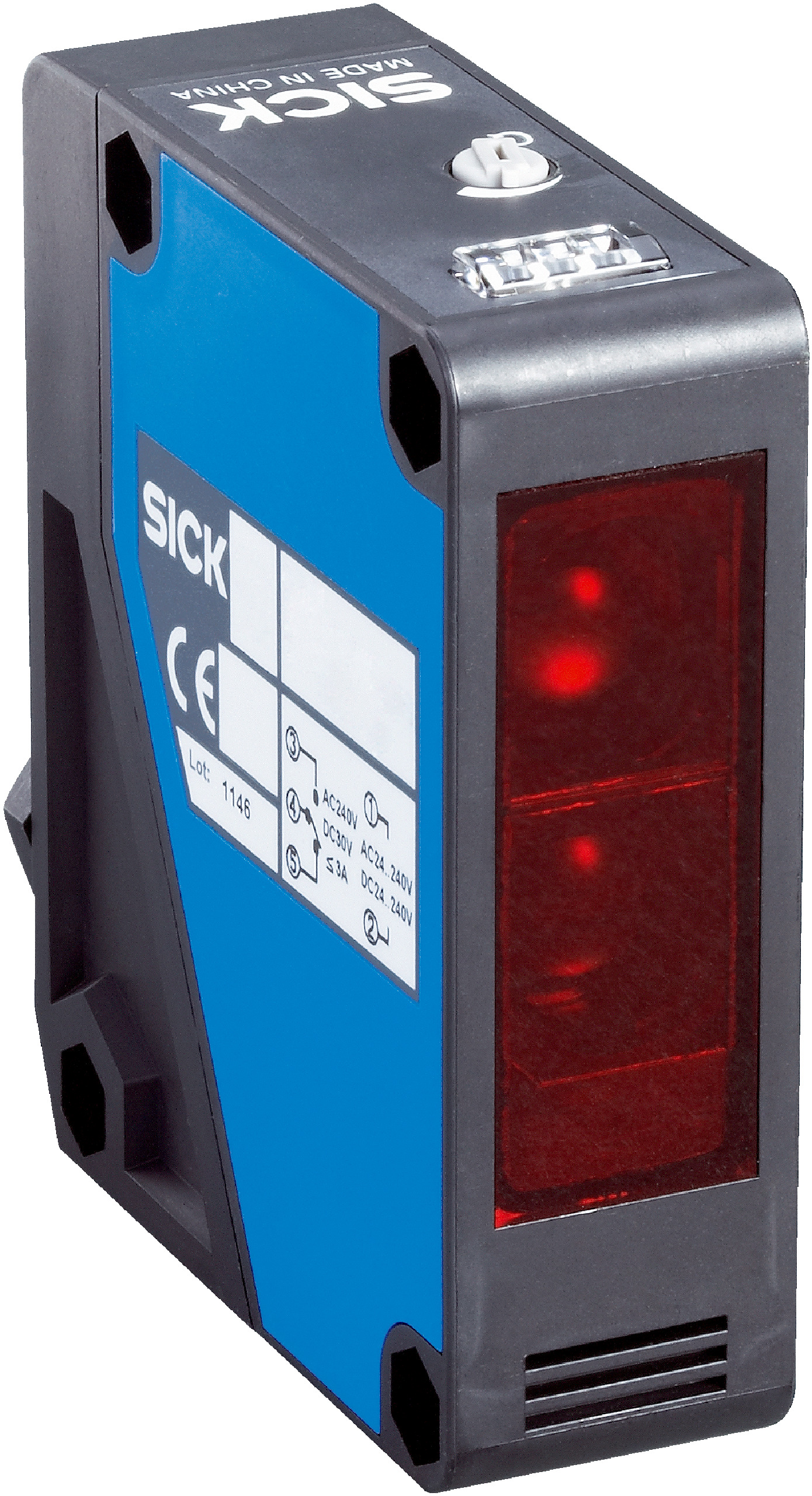

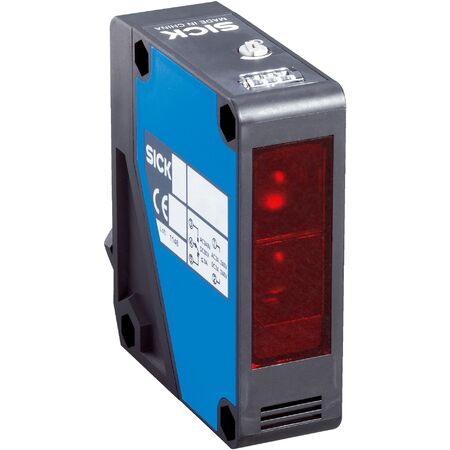

Photoelectric Retro-Reflective Sensor WL280-2H4331 | 15m Sensing Range | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL280-2H4331 is designed for industrial automation, featuring a dual lens system and a sensing range of up to 15 meters. With a robust ABS housing and IP66/IP67 protection, it ensures reliable performance in harsh environments. Ideal for safety monitoring and object detection, this sensor includes a mounting bracket and reflector for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.01 m to 15 m
- Light source: Visible red LED
- Light spot size at 8 m: Ø 260 mm
- Supply voltage: 24 V DC to 240 V DC and 24 V AC to 240 V AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection type: Cable gland
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Includes mounting bracket BEF-W280 and reflector P250
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED source
- Sensing range up to 15 meters
- Potentiometer adjustment for sensitivity
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz
- Robust plastic ABS housing with IP66 and IP67 protection
- Wide ambient operating temperature range from -25°C to +55°C
- Includes mounting bracket and reflector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL280-2H4331 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
