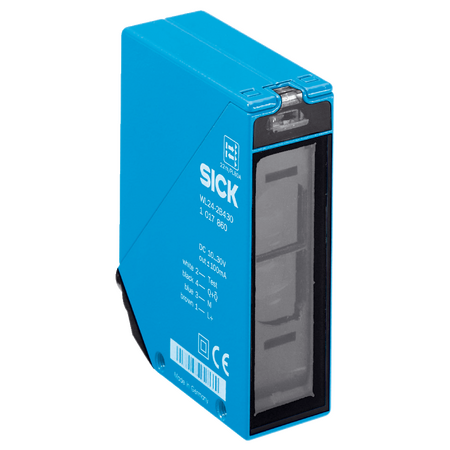

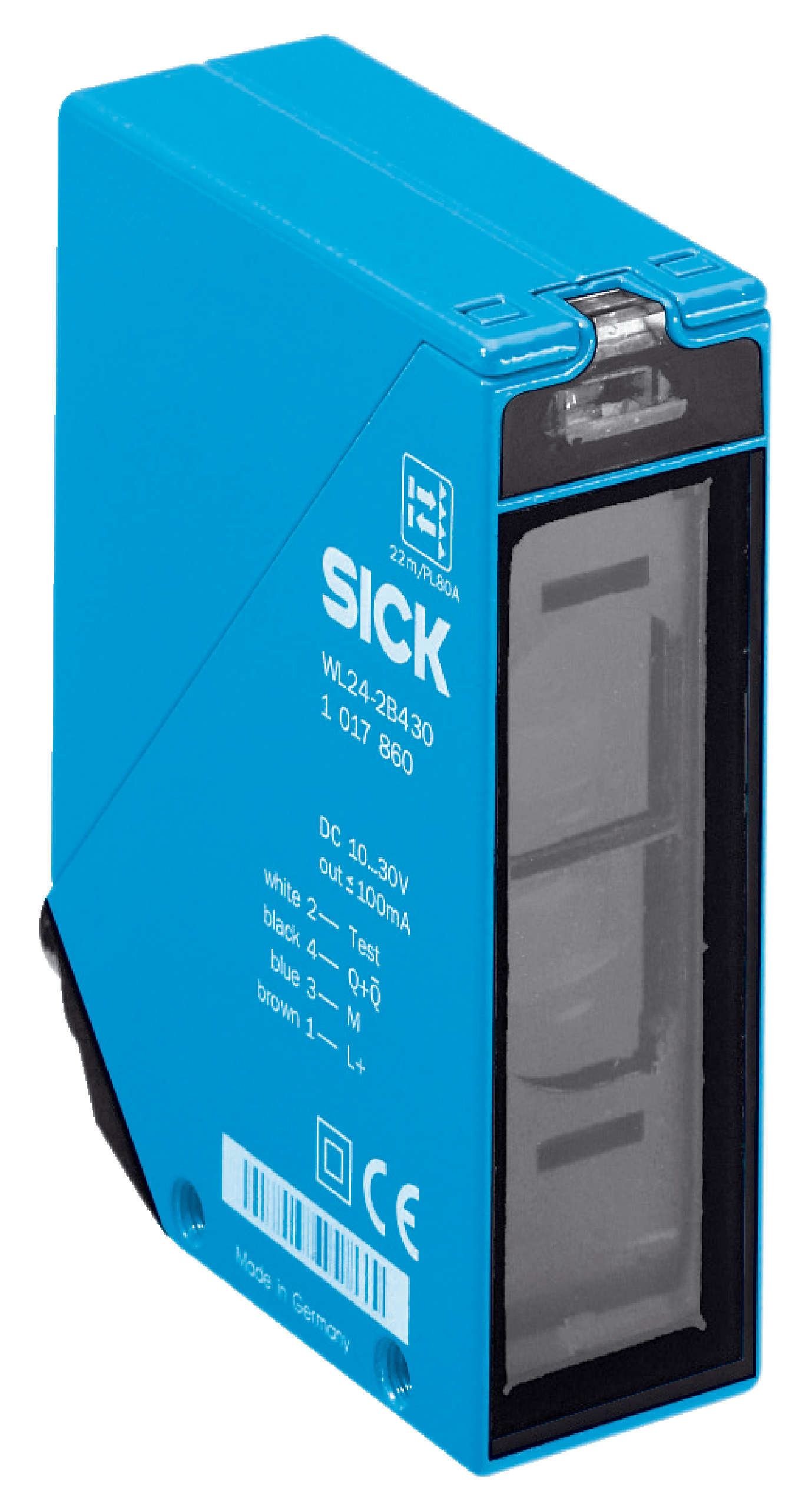

Photoelectric Retro-Reflective Sensor | 15m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a 15m sensing range and a robust metal housing. With a fast response time of ≤ 500 µs and selectable light/dark switching modes, it ensures reliable object detection in various applications. Ideal for material handling and safety monitoring, this sensor is built to perform in harsh environments with its IP67 rating and front screen heating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK WL24 Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 15 m
- Light source: Visible red LED
- Light spot size at 15 m: Ø 250 mm
- Adjustment: Potentiometer
- Alarm output: Yes
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 80 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Plug, M12, 5-pin
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Glass
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Polarisation filter: Yes
- Front screen heating: Yes
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a sensing range up to 15 meters
- Front screen heating for reliable operation in harsh environments
- Selectable light/dark switching mode with PNP/NPN output options
- Robust metal zinc diecast housing with glass optics and IP67 enclosure rating
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Polarisation filter included to reduce false triggering
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL24-2V530S04 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
