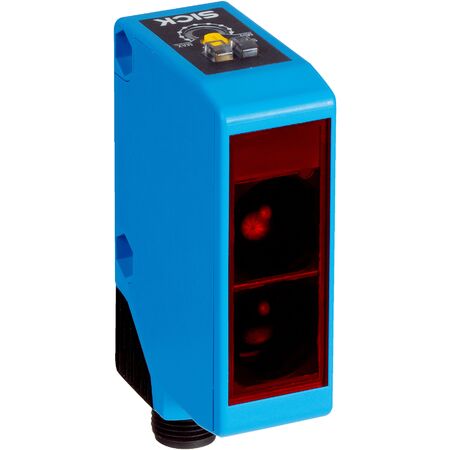

Photoelectric Retro-Reflective Sensor WL250-2F2431 | 15m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL250-2F2431 is designed for industrial automation, featuring a sensing range of up to 15 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety and control systems in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.01 m to 15 m depending on reflector
- Light source: Visible red LED
- Focus and angle of dispersion: Approx. 2°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with approx. 2° focus and angle of dispersion
- Sensing range up to 15 m depending on reflector
- Potentiometer adjustment with 2 turns
- IP67 rated enclosure for dust and water protection
- Plastic ABS housing with PMMA optics
- Fast response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- PNP switching output with max output current ≤ 100 mA
- Polarisation filter included
- Supplied with reflector P250 and BEF-W250 mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL250-2F2431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
