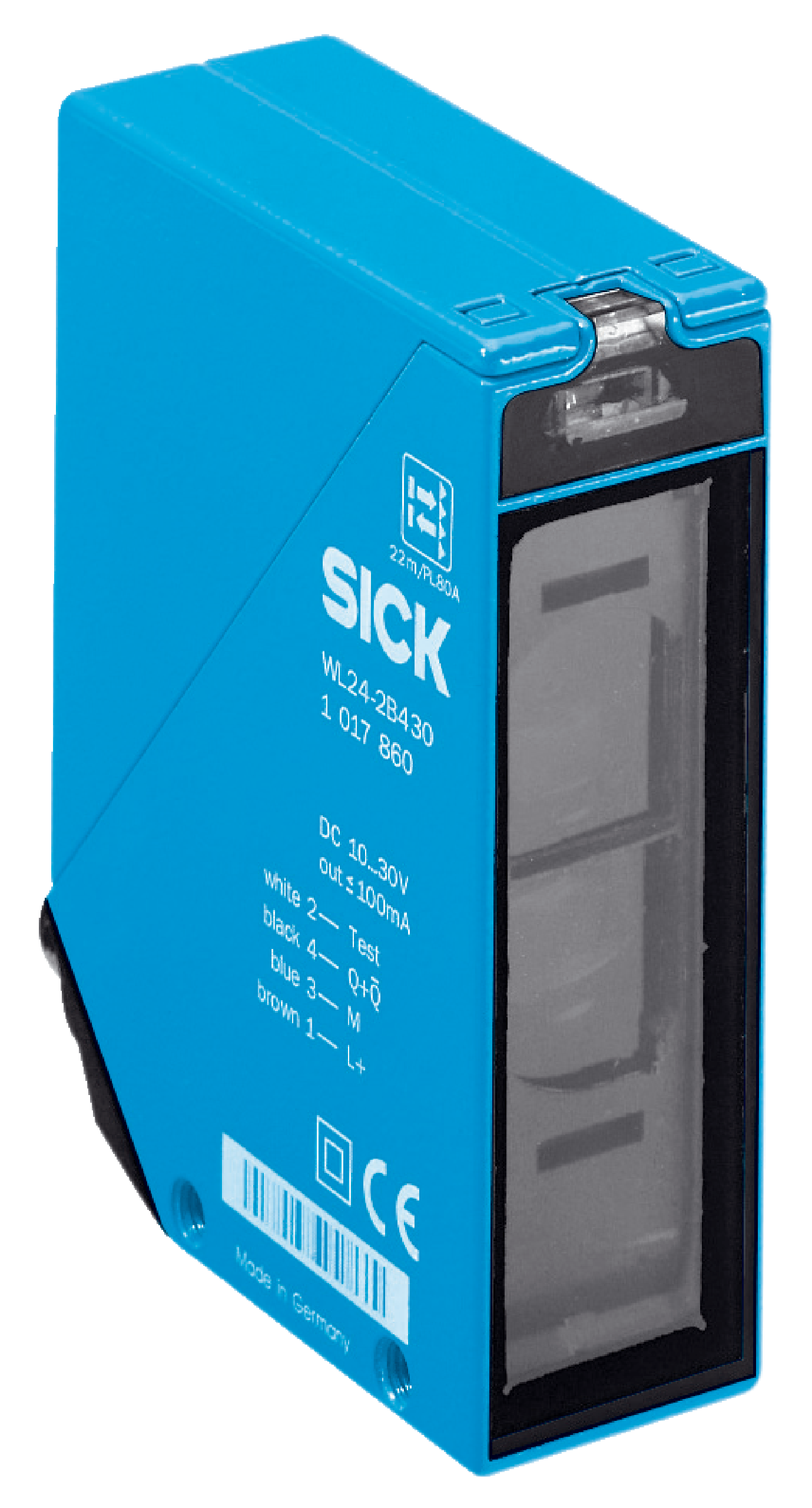

Photoelectric Retro-Reflective Sensor WL24-2V530 | 15m Sensing Range | IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL24-2V530 features a dual lens system and a visible red LED light source, providing a sensing range of up to 15 meters. Ideal for industrial automation and safety monitoring, this robust sensor offers selectable light/dark switching modes and PNP/NPN outputs. With an IP69K enclosure rating and a fast response time of ≤ 500 µs, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK WL24 Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 15 m
- Light source: Visible red LED
- Light spot size at 15 m: Ø 250 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Plug, M12, 5-pin
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Enclosure rating: IP69K
- Ambient operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a sensing range up to 15 m
- Selectable light/dark switching mode and PNP/NPN output
- Robust metal zinc diecast housing with IP69K enclosure rating
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Polarisation filter for enhanced detection reliability
- Wide ambient operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL24-2V530 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
