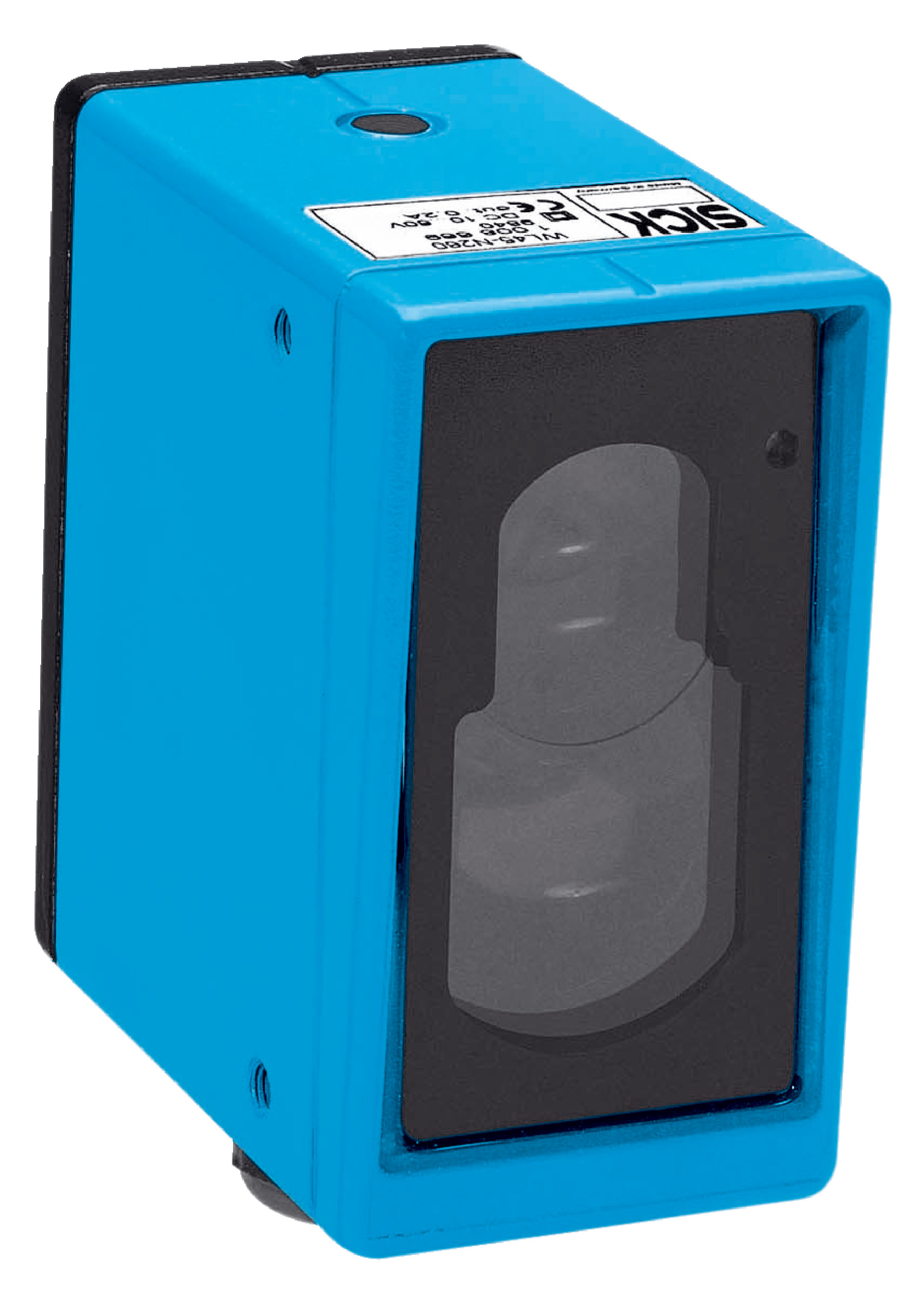

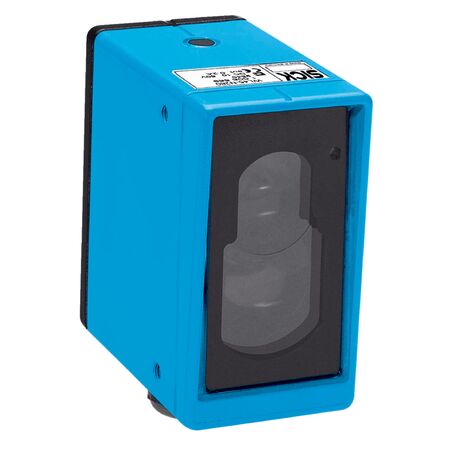

Photoelectric Retro-Reflective Sensor WL45-R260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
The WL45-R260 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system and a sensing range of 1 m to 45 m. With a robust IP67-rated metal housing and a fast response time of ≤ 20 ms, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Its visible red LED light source ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-R260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1008562
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL45 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: ≤ 3 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 20 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable 0.5 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Housing material: Metal
- Weight: 800 g
- Polarisation filter included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a sensing range of 1 m to 45 m
- Rectangular metal housing with IP67 enclosure rating for robust protection
- Adjustable potentiometer for sensitivity and time delay selector switch for switching modes
- Relay output with change-over contacts and selectable light/dark switching
- High switching current capacity up to 4 A at 250 V AC
- Fast response time of ≤ 20 ms and switching frequency of 10 Hz
- Polarisation filter included to reduce false triggering
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sensor setup.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL45-R260 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
