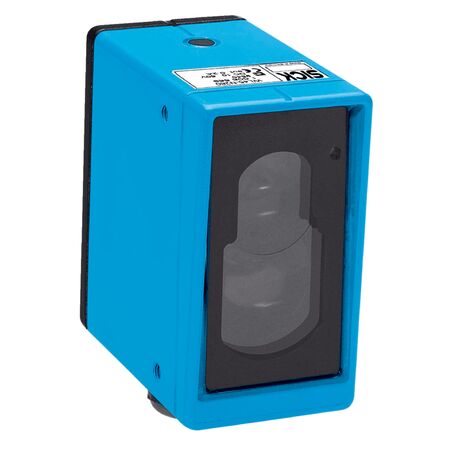

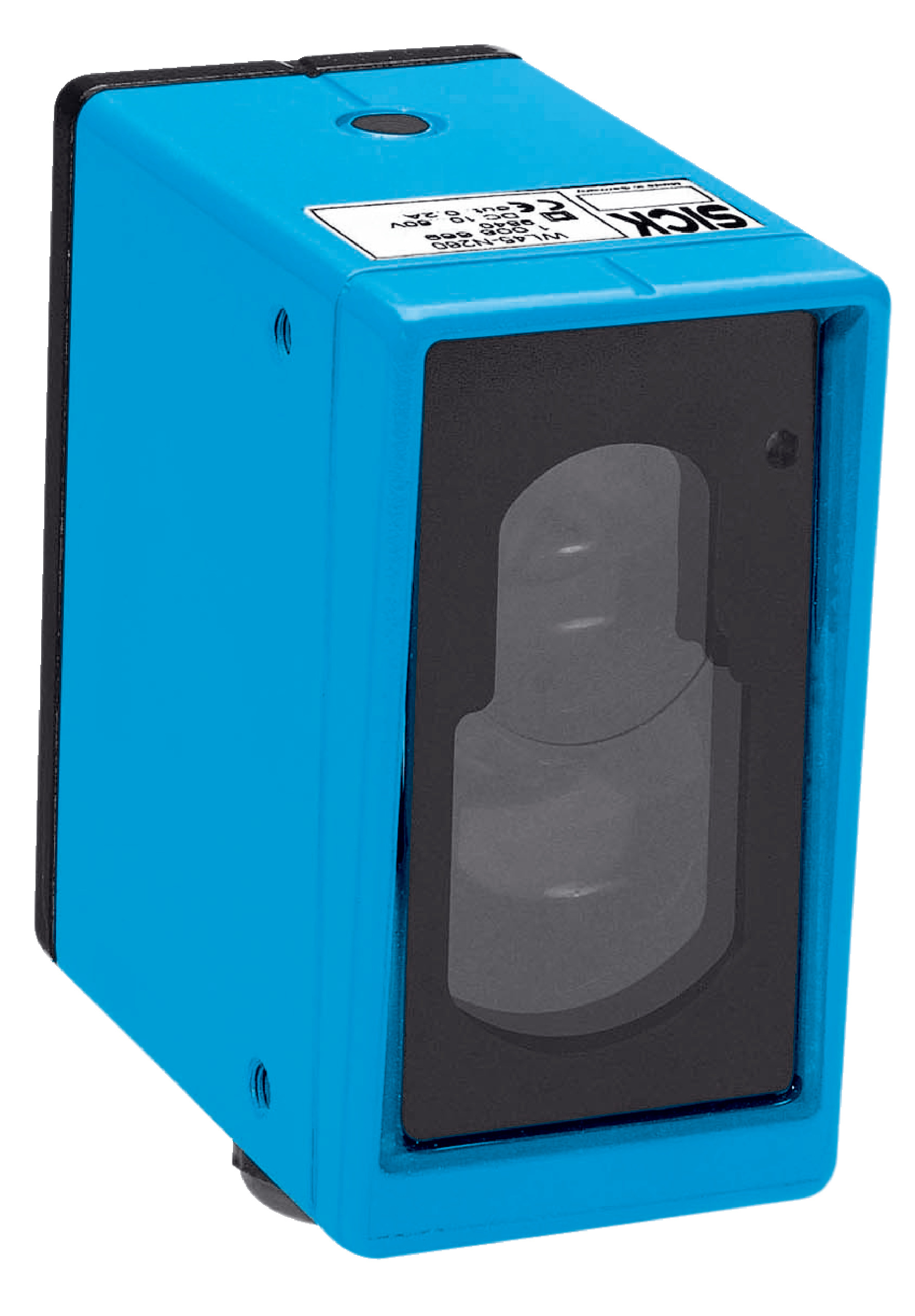

Photoelectric Retro-Reflective Sensor WL45-P260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
The WL45-P260 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system and a sensing range of 1m to 45m. With a fast response time of ≤ 1.2 ms and an IP67 enclosure rating, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring in manufacturing processes, this sensor is built to enhance efficiency and safety in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-P260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1008668
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL45 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: 50 mA
- Switching output: PNP, complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 1.2 ms
- Switching frequency: 400 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable via selector switch
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 800 g
- Housing material: Metal
- Polarisation filter included
- Alarm output: 100 mA
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a sensing range of 1 m to 45 m
- Rectangular metal housing with IP67 enclosure rating for robust protection
- Adjustable potentiometer for sensitivity and delay time settings
- Fast response time of ≤ 1.2 ms and switching frequency of 400 Hz
- Complementary PNP output with light/dark switching mode
- Polarisation filter included to reduce false triggering
- Wide supply voltage range from 10 V DC to 60 V DC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL45-P260 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
