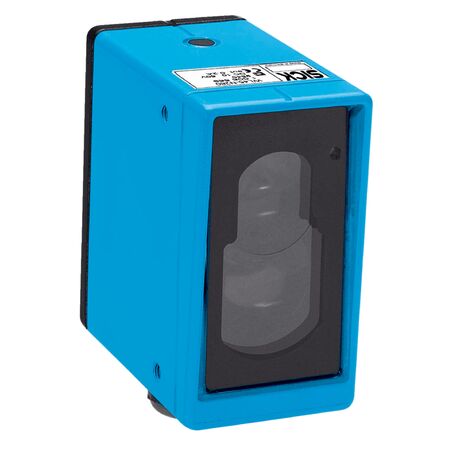

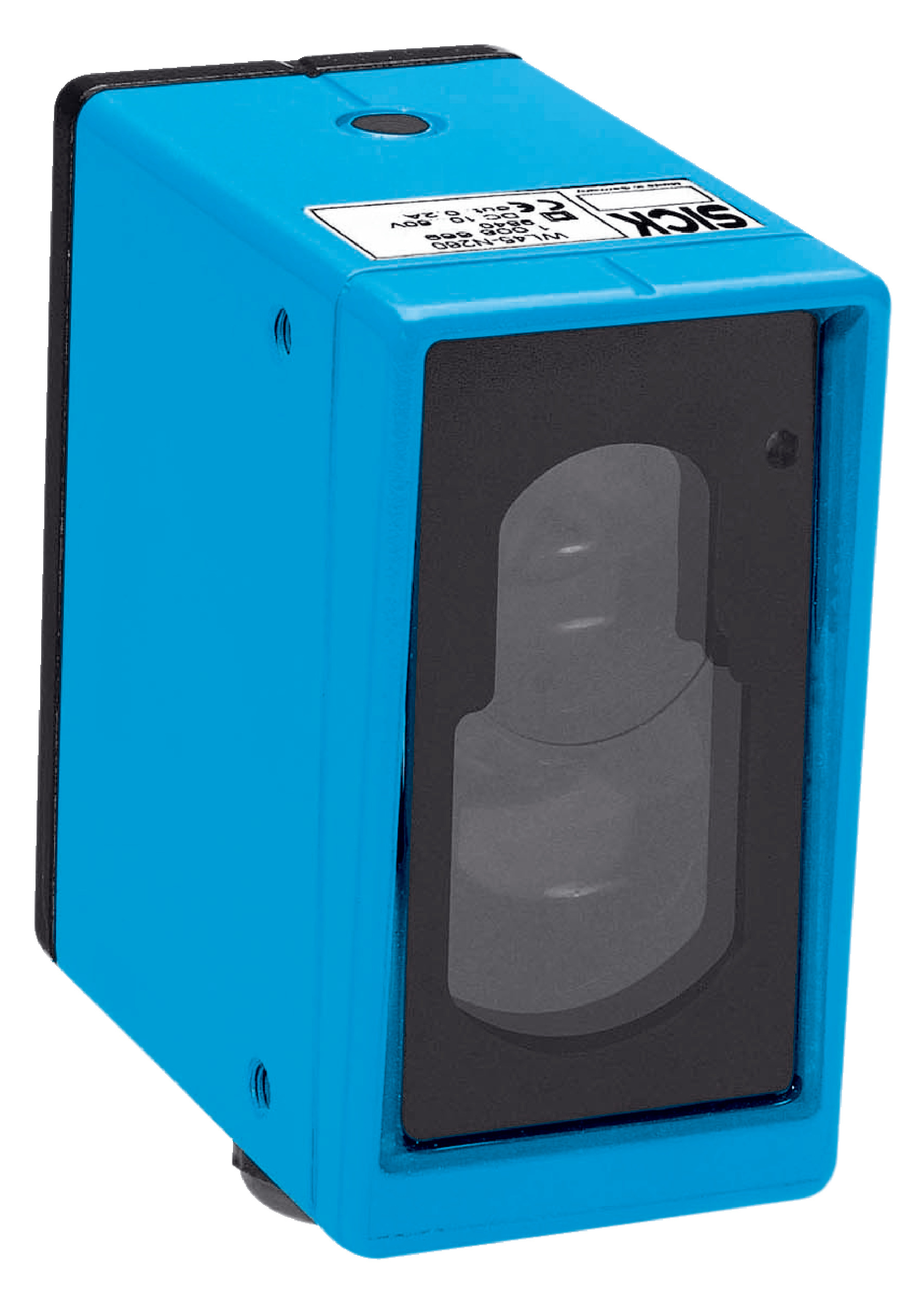

Photoelectric Retro-Reflective Sensor WL45-N260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL45-N260 is designed for industrial automation, featuring a dual lens system and a sensing range of 1 m to 45 m. With a robust IP67-rated metal housing and fast response time of ≤ 1.2 ms, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor is built to perform in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-N260 | 1m to 45m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1008669
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK WL45 Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: 50 mA
- Switching output: NPN, complementary function
- Output current max: ≤ 200 mA
- Response time: ≤ 1.2 ms
- Switching frequency: 400 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable via selector switch
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- Housing material: Metal
- Polarisation filter: Included
- Alarm output: 100 mA
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a sensing range of 1 m to 45 m
- Rectangular metal housing with IP67 enclosure rating for robust protection
- Adjustable potentiometer for sensitivity and delay time settings
- NPN switching output with complementary output function and light/dark switching mode
- Fast response time of ≤ 1.2 ms and switching frequency of 400 Hz
- Polarisation filter included to reduce interference
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Robust metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL45-N260 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
