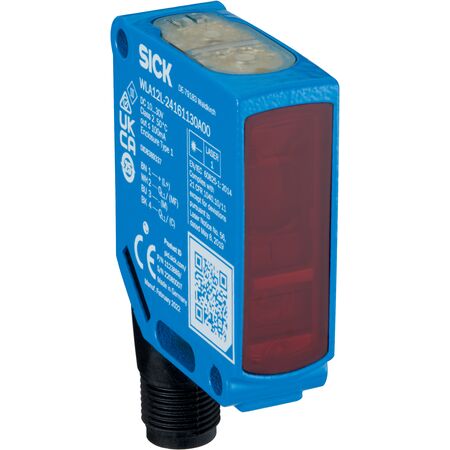

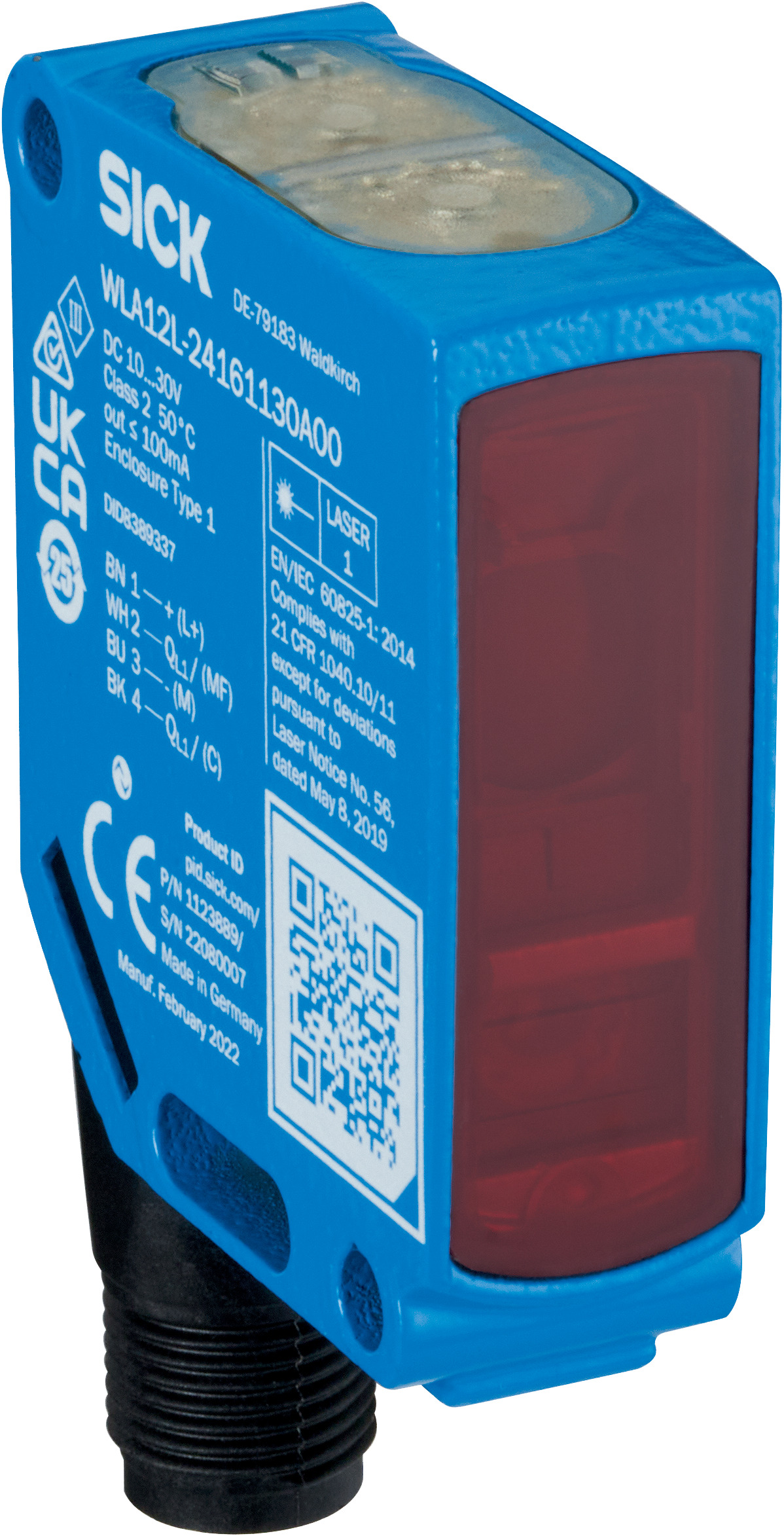

Photoelectric Retro-Reflective Sensor | 20m Sensing Range | Laser Class 1 | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation, featuring a sensing range of up to 20 meters and a visible red laser light source. With robust IP66/IP67/IP69 protection ratings and a durable metal housing, this sensor ensures reliable performance in challenging environments, making it ideal for detecting small objects and those wrapped in film.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 20 m, recommended 0 m to 12 m
- Light source: Visible red laser, wavelength 655 nm
- Laser class: 1
- Pulse duration: 4 µs
- Maximum pulse power: < 2.13 mW
- Average service life: 50,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN, light/dark switching
- Response time: ≤ 200 µs
- Switching frequency: 2,500 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Connection: Male M12, 4-pin connector
- Housing material: Metal zinc diecast
- Front screen: Plastic PMMA
- Weight: Approx. 77 g
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 20 m with recommended range up to 12 m
- Polarisation filter for improved detection
- Visible red laser light source with ellipse-shaped light spot
- Laser class 1 safety compliant
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operation, and light beam status
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small objects and objects wrapped in film
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Compliant with environmental standards including China-RoHS and ECOLAB
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLA12L-24162100A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
