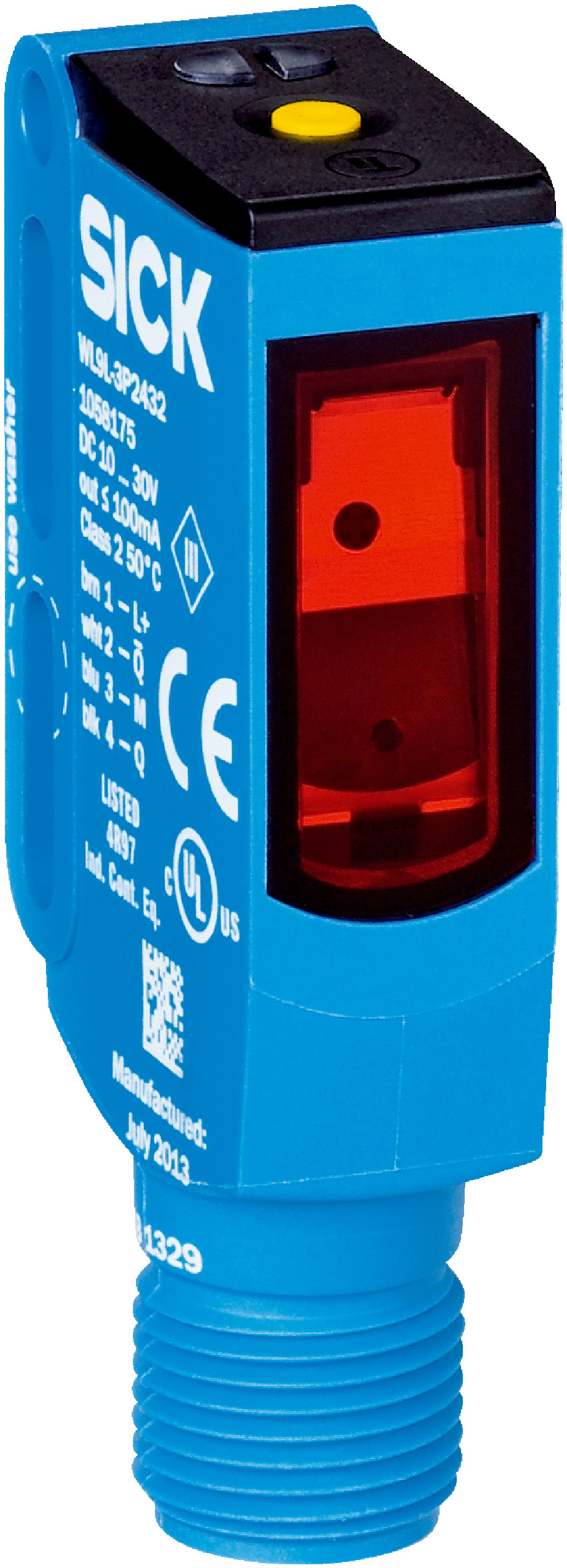

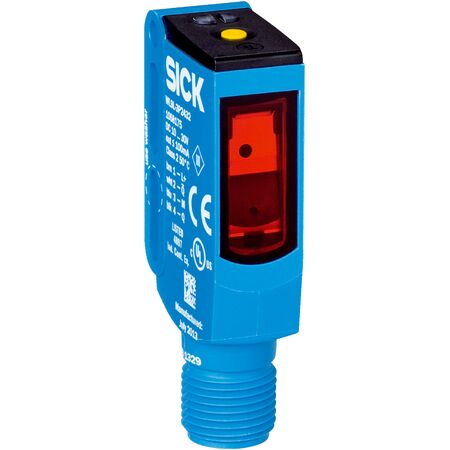

Photoelectric Retro-Reflective Sensor | 3.5m Sensing Range | IO-Link Communication | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9LGC-3P2452A70 is designed for precise object detection in industrial automation, featuring a sensing range of up to 3.5 meters without a reflector. With a visible red laser light source and IO-Link communication interface, it ensures fast response times and high switching frequencies, making it ideal for detecting small and transparent objects in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 3.5 m max, 0 m to 2.2 m typical
- Light source: Visible red laser, 650 nm wavelength
- Laser class: 1 (IEC 60825-1)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 3.5 meters without reflector
- IO-Link communication interface for smart sensor integration
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Laser class 1 safety certified (IEC 60825-1)
- AutoAdapt feature for automatic adjustment
- Multiple output functions including complementary PNP switching output
- Contamination alarm output and device status diagnostics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting small and transparent objects
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption of 30 mA
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS and ECOLAB environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9LGC-3P2452A70 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
