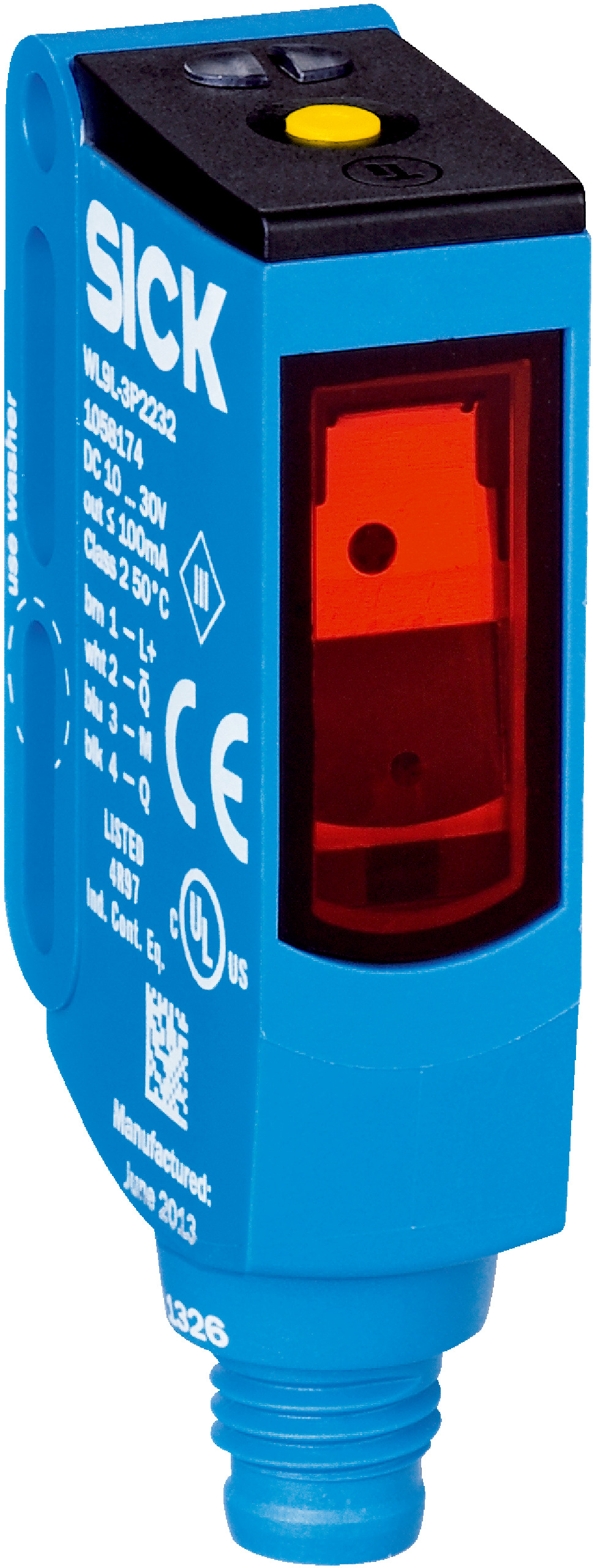

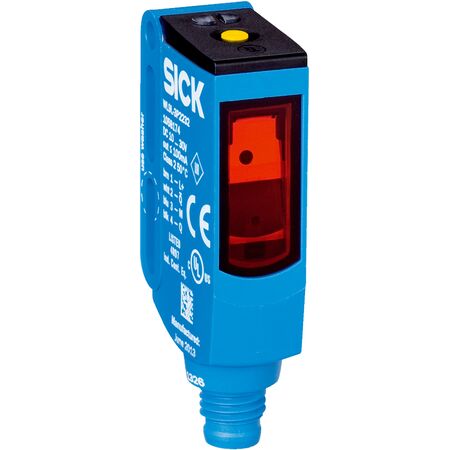

Photoelectric Retro-Reflective Sensor WL9LG-3P2252 | 3.5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9LG-3P2252 is designed for precise object detection, featuring a sensing range of up to 3.5 meters without a reflector and a visible red laser light for enhanced visibility. Ideal for industrial automation and safety systems, this sensor boasts a fast response time of ≤ 0.5 ms and a robust IP66/IP67/IP69K rating, making it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 3.5 m without reflector
- Type of light: Visible red laser light, wavelength 650 nm
- Laser class: Class 1 (IEC 60825-1)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Weight: 13 g
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red laser light
- Sensing range up to 3.5 meters without reflector
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized detection
- High protection rating IP66, IP67, IP69K for harsh environments
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included to reduce interference
- Robust plastic housing made of VISTAL® and PMMA optics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Detecting small objects
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9LG-3P2252 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
