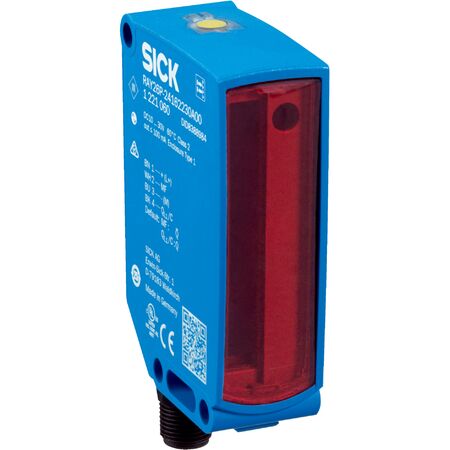

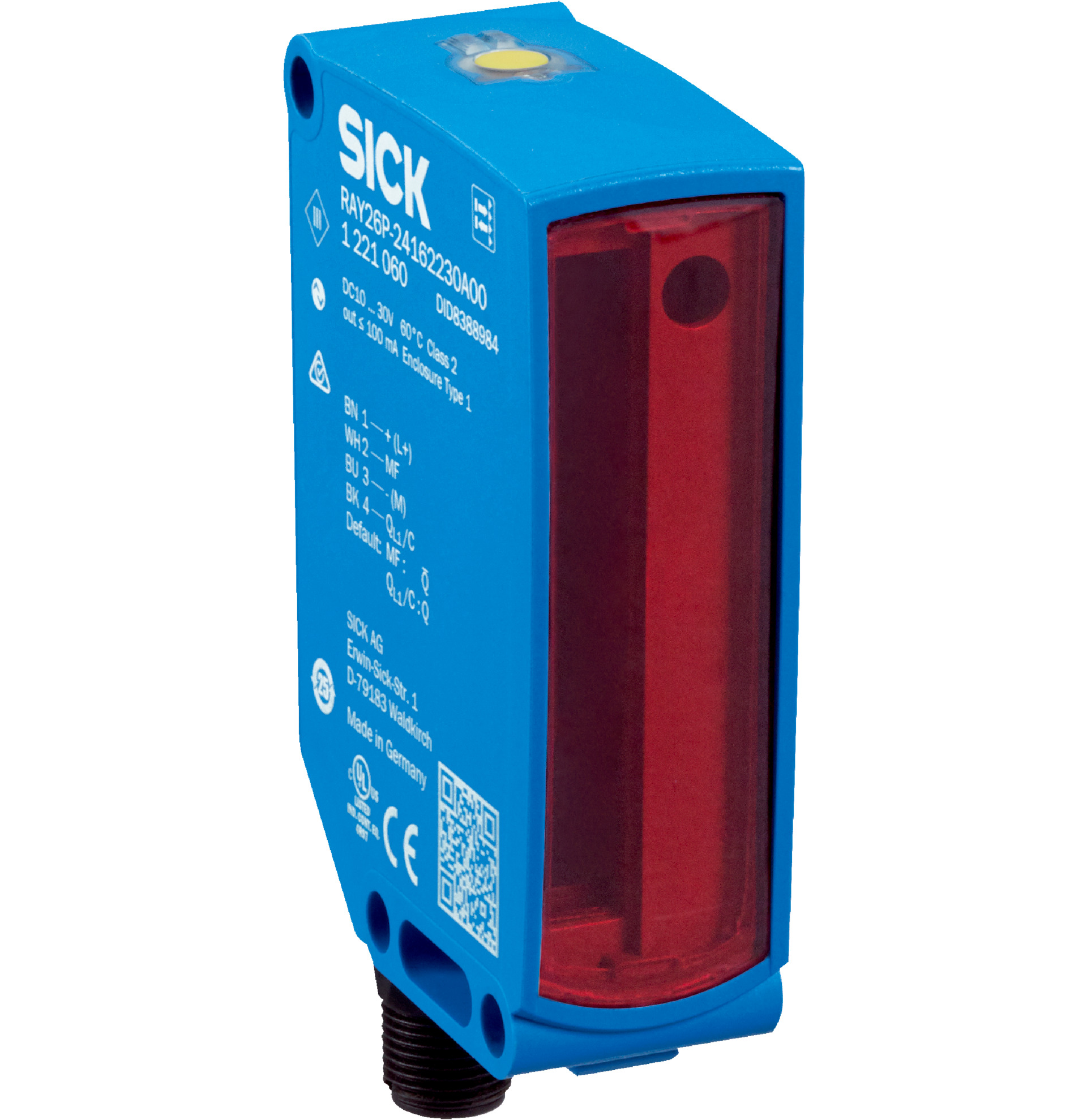

Photoelectric Retro-Reflective Sensor | 3m Detection Range | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor RAY26P-1H161530A00 is designed for precise object detection in industrial automation, featuring a detection range of up to 3 meters and a minimum object size of just 5 mm. With its robust IP66 and IP67 enclosure ratings, this sensor is perfect for challenging environments, ensuring reliable performance even in harsh conditions. The integrated IO-Link communication interface allows for easy adjustments, making it ideal for conveyor belt monitoring and various automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics), Reflex Array
- Minimum object size: 5 mm with position-independent detection
- Detection height: 55 mm
- Sensing range max: 0 m to 3 m
- Light source: PinPoint LED, wavelength 635 nm
- Adjustment: BluePilot teach-in, IO-Link V1.1 communication
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: 25 mA to 40 mA
- Switching output: Push-pull PNP/NPN with light/dark switching
- Response time: ≤ 3 ms
- Switching frequency: 170 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic VISTAL®, Optics material: PMMA
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Circuit protection: Types A, B, C, D
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with visible red PinPoint LED light source
- Detection range up to 3 meters with minimum object size of 5 mm
- Rectangular housing design with IP66 and IP67 enclosure rating
- BluePilot teach-in and IO-Link communication interface for easy adjustment
- Manual conveyor belt suppression
- High switching frequency of 170 Hz and response time ≤ 3 ms
- Push-pull PNP/NPN switching output with light/dark switching modes
- Robust plastic VISTAL® housing and PMMA optics
- Wide ambient operating temperature range from -40 °C to +60 °C
- Integrated diagnostics including device status and contamination display
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Conveyor belt monitoring
- Detection of transparent, shiny, perforated, and flat objects
- Position-independent detection within light array
