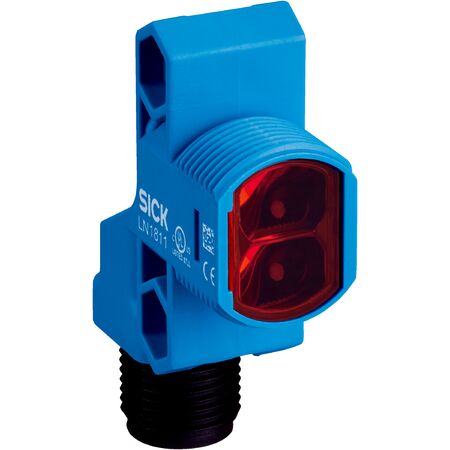

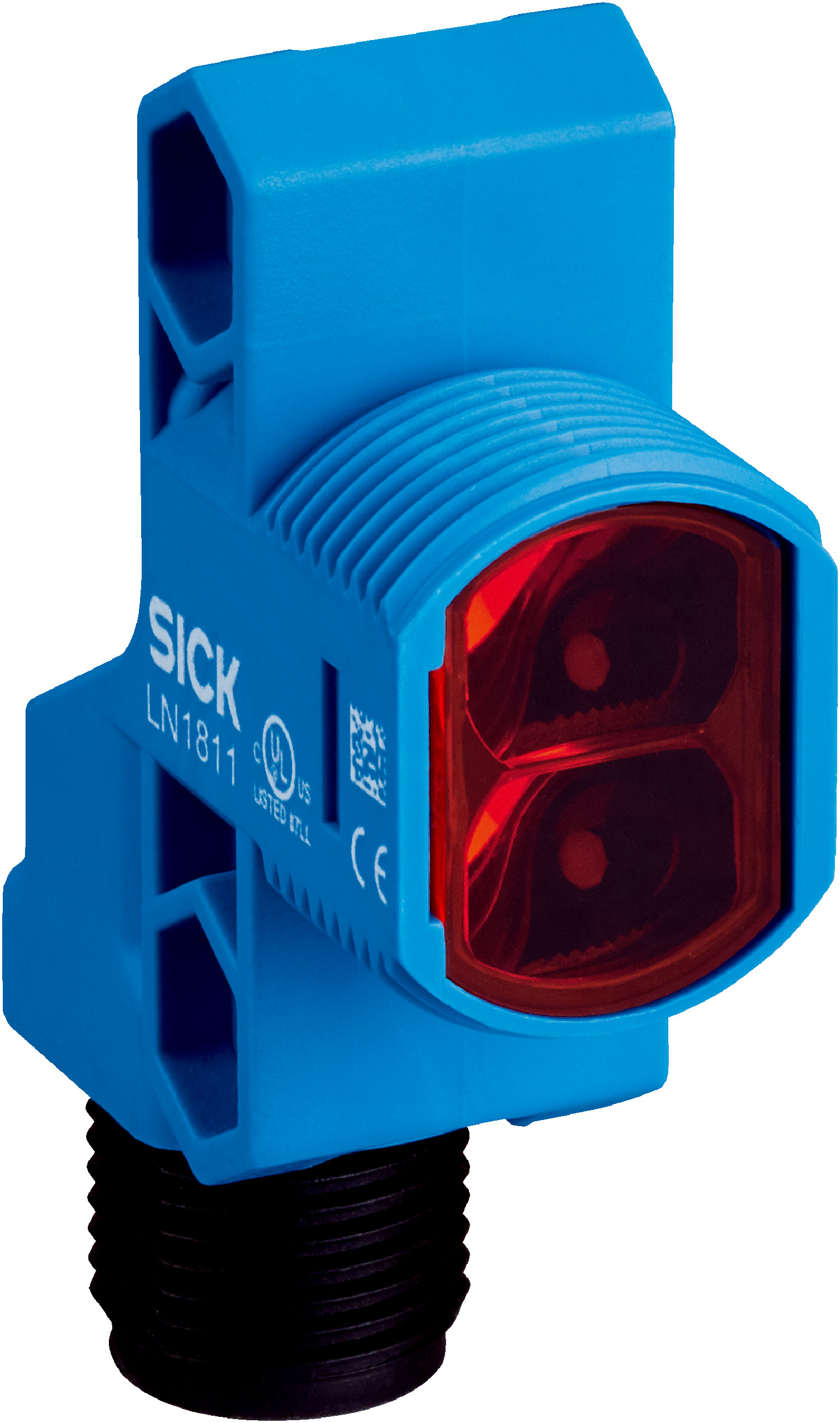

Photoelectric Retro-Reflective Sensor ZLD18-2NQ4A8 | 4.2m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The ZLD18-2NQ4A8 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 4.2 meters and a fast response time of ≤ 500 µs. With its durable IP67 rated enclosure, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m
- Light source: Visible red LED, 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, Light switching and Health output
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 4.54 g
- Dimensions (H x L x W): 45mm x 32mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Compact hybrid housing design with M18 mounting system
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- NPN switching outputs with health output
- Wide operating temperature range from –40 °C to +55 °C
- Polarisation filter included for reliable detection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-2NQ4A8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
